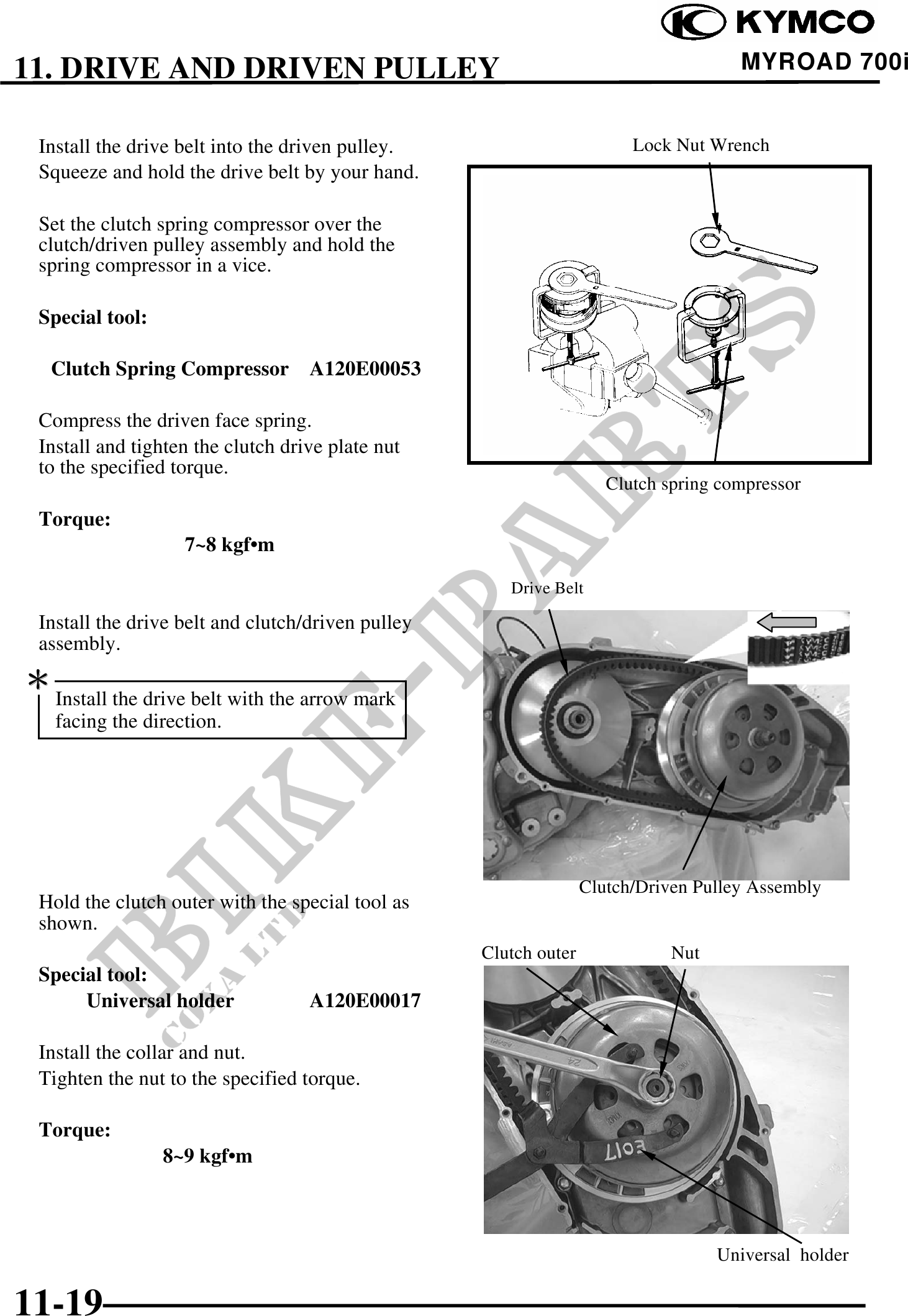

11. DRIVE AND DRIVEN PULLEY MYROAD 700i Install the drive belt into the driven pulley. Lock Nut Wrench Squeeze and hold the drive belt by your hand. Set the clutch spring compressor over the clutch/driven pulley assembly and hold the spring compressor in a vice. Special tool: Clutch Spring Compressor A120E00053 Compress the driven face spring. Install and tighten the clutch drive plate nut to the specified torque. Clutch spring compressor Torque: 7~8 kgf·m Drive Belt Install the drive belt and clutch/driven pulley assembly. Install the drive belt with the arrow mark facing the direction. Clutch/Driven Pulley Assembly Hold the clutch outer with the special tool as shown. Clutch outer Nut Special tool: Universal holder A120E00017 Install the collar and nut. Tighten the nut to the specified torque. Torque: 8~9 kgf·m Universal holder 11-19
