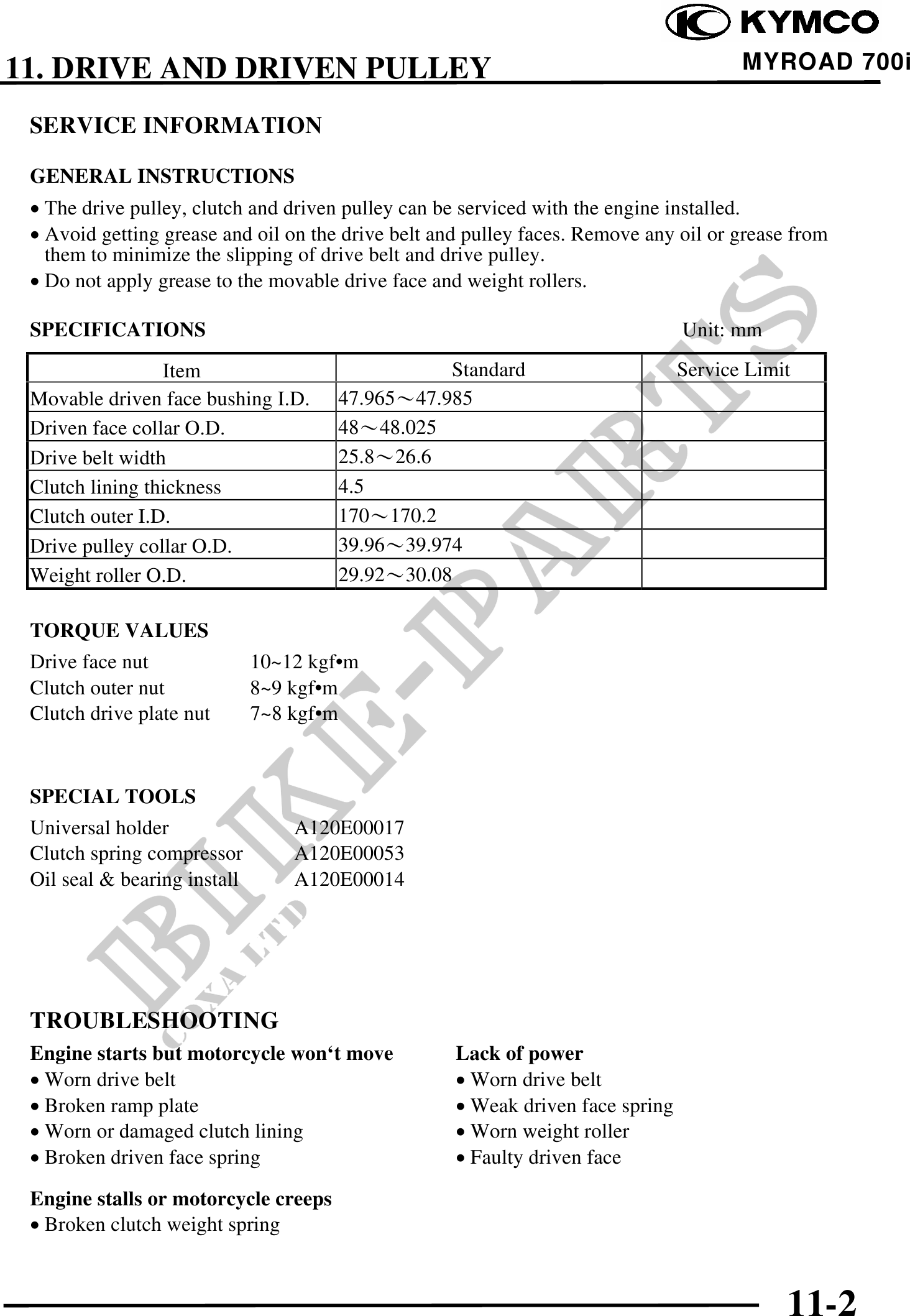

11. DRIVE AND DRIVEN PULLEY MYROAD 700i SERVICE INFORMATION GENERAL INSTRUCTIONS · The drive pulley, clutch and driven pulley can be serviced with the engine installed. · Avoid getting grease and oil on the drive belt and pulley faces. Remove any oil or grease from them to minimize the slipping of drive belt and drive pulley. · Do not apply grease to the movable drive face and weight rollers. SPECIFICATIONS Unit: mm Item Standard Service Limit Movable driven face bushing I.D. 47.96547.985 Driven face collar O.D. 4848.025 Drive belt width 25.826.6 Clutch lining thickness 4.5 Clutch outer I.D. 170170.2 Drive pulley collar O.D. 39.9639.974 Weight roller O.D. 29.9230.08 TORQUE VALUES Drive face nut 10~12 kgf·m Clutch outer nut 8~9 kgf·m Clutch drive plate nut 7~8 kgf·m SPECIAL TOOLS Universal holder A120E00017 Clutch spring compressor A120E00053 Oil seal & bearing install A120E00014 TROUBLESHOOTING Engine starts but motorcycle won`t move Lack of power · Worn drive belt · Worn drive belt · Broken ramp plate · Weak driven face spring · Worn or damaged clutch lining · Worn weight roller · Broken driven face spring · Faulty driven face Engine stalls or motorcycle creeps · Broken clutch weight spring 11-2
