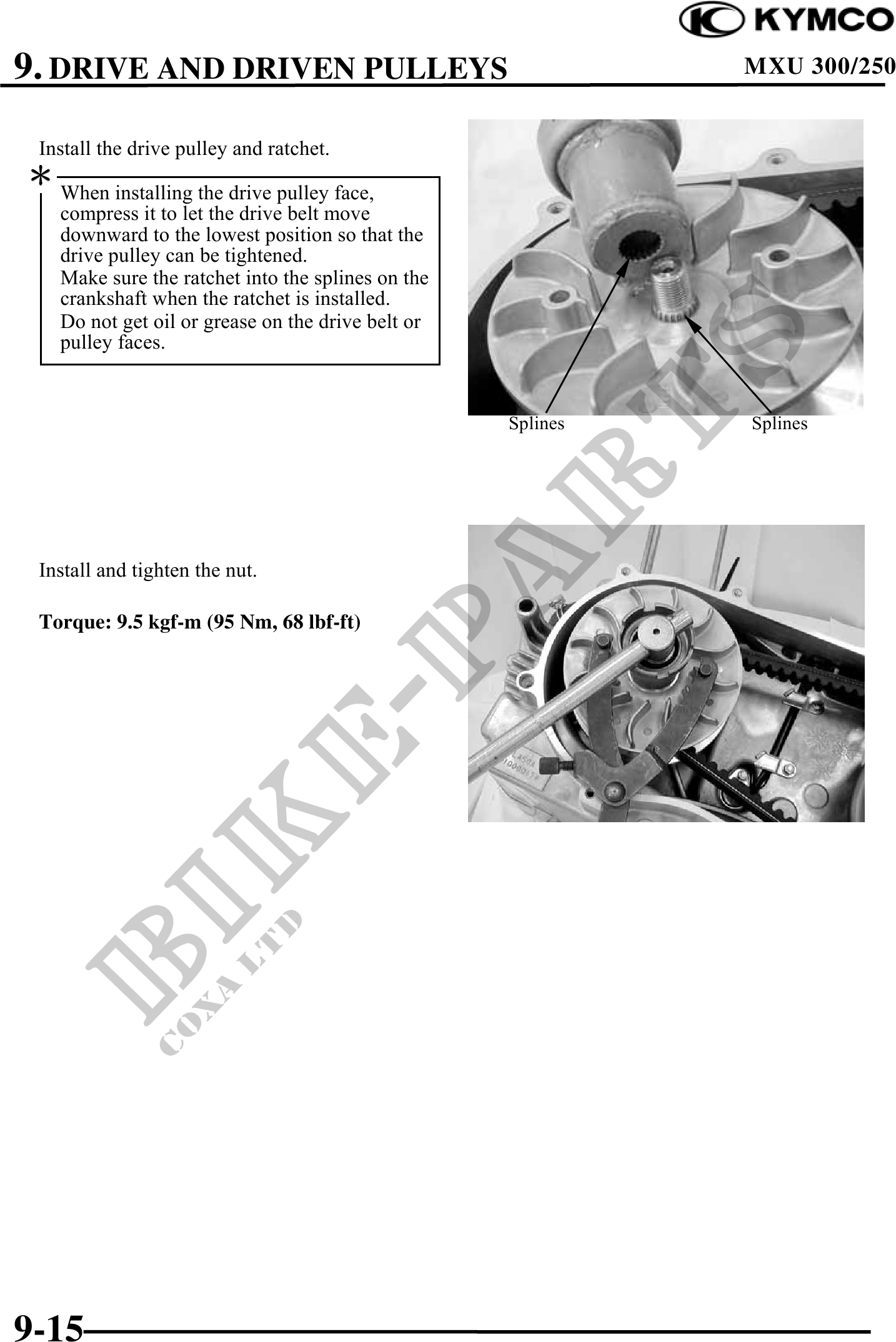

          9. DRIVE AND DRIVEN PULLEYS                                  MXU 300/250


 Install the drive pulley and ratchet.
 When installing the drive pulley face,
   compress it to let the drive belt move
   downward to the lowest position so that the
   drive pulley can be tightened.
   Make sure the ratchet into the splines on the
   crankshaft when the ratchet is installed.
   Do not get oil or grease on the drive belt or
   pulley faces.


                                                   Splines   Splines




 Install and tighten the nut.

 Torque: 9.5 kgf-m (95 Nm, 68 lbf-ft)




9-15
