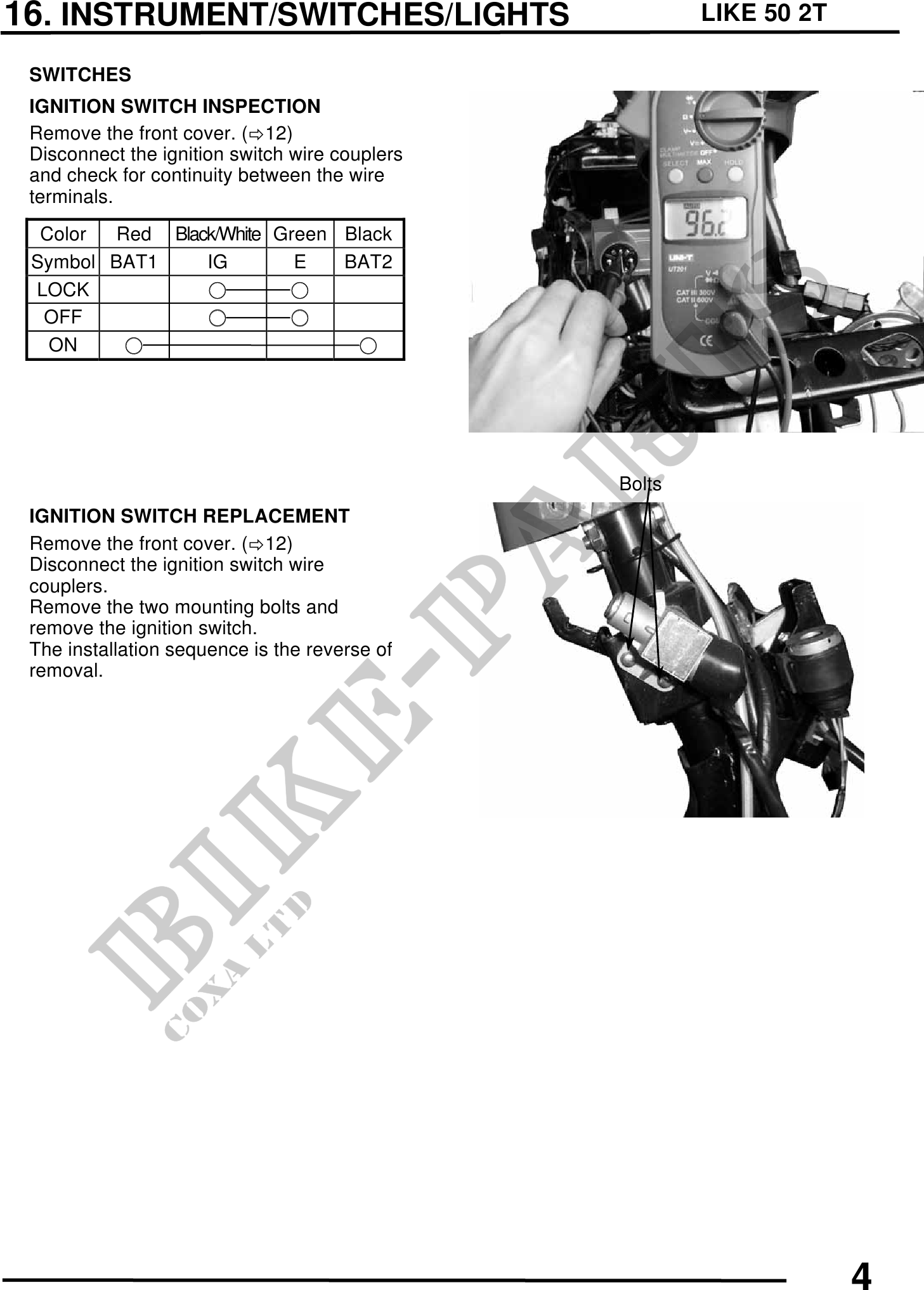

16. INSTRUMENT/SWITCHES/LIGHTS LIKE 50 2T
SWITCHES
IGNITION SWITCH INSPECTION
Remove the front cover. ( 12)
Disconnect the ignition switch wire couplers
and check for continuity between the wire
terminals.
Color Red Black/White Green Black
Symbol BAT1 IG E BAT2
LOCK
OFF
ON
Bolts
IGNITION SWITCH REPLACEMENT
Remove the front cover. ( 12)
Disconnect the ignition switch wire
couplers.
Remove the two mounting bolts and
remove the ignition switch.
The installation sequence is the reverse of
removal.
4
