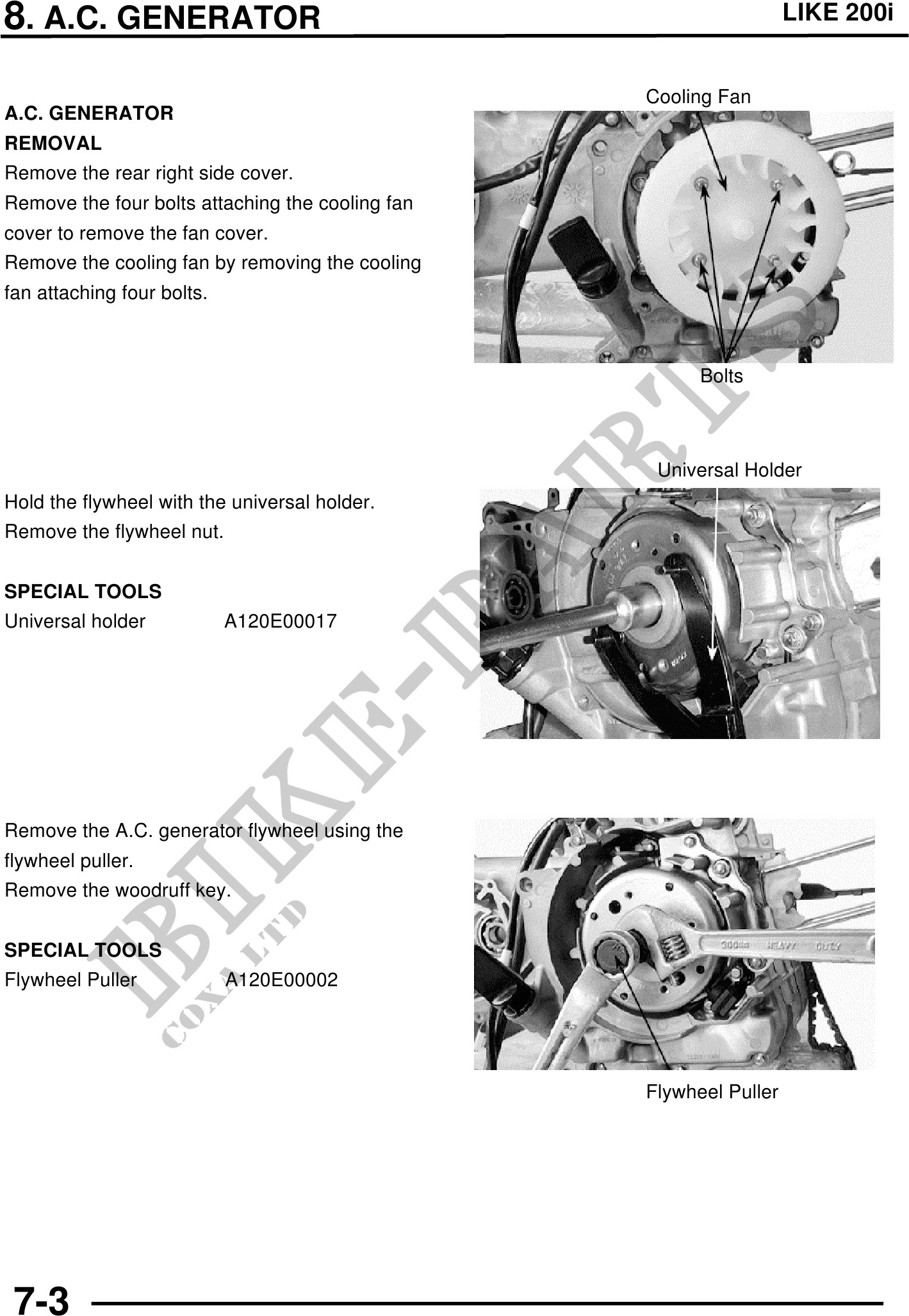

8. A.C. GENERATOR LIKE 200i
Cooling Fan
A.C. GENERATOR
REMOVAL
Remove the rear right side cover.
Remove the four bolts attaching the cooling fan
cover to remove the fan cover.
Remove the cooling fan by removing the cooling
fan attaching four bolts.
Bolts
Universal Holder
Hold the flywheel with the universal holder.
Remove the flywheel nut.
SPECIAL TOOLS
Universal holder A120E00017
Remove the A.C. generator flywheel using the
flywheel puller.
Remove the woodruff key.
SPECIAL TOOLS
Flywheel Puller A120E00002
Flywheel Puller
7-3
