5. FUEL SYSTEM Mongoose/KXR 90/50
Auto Bystarte

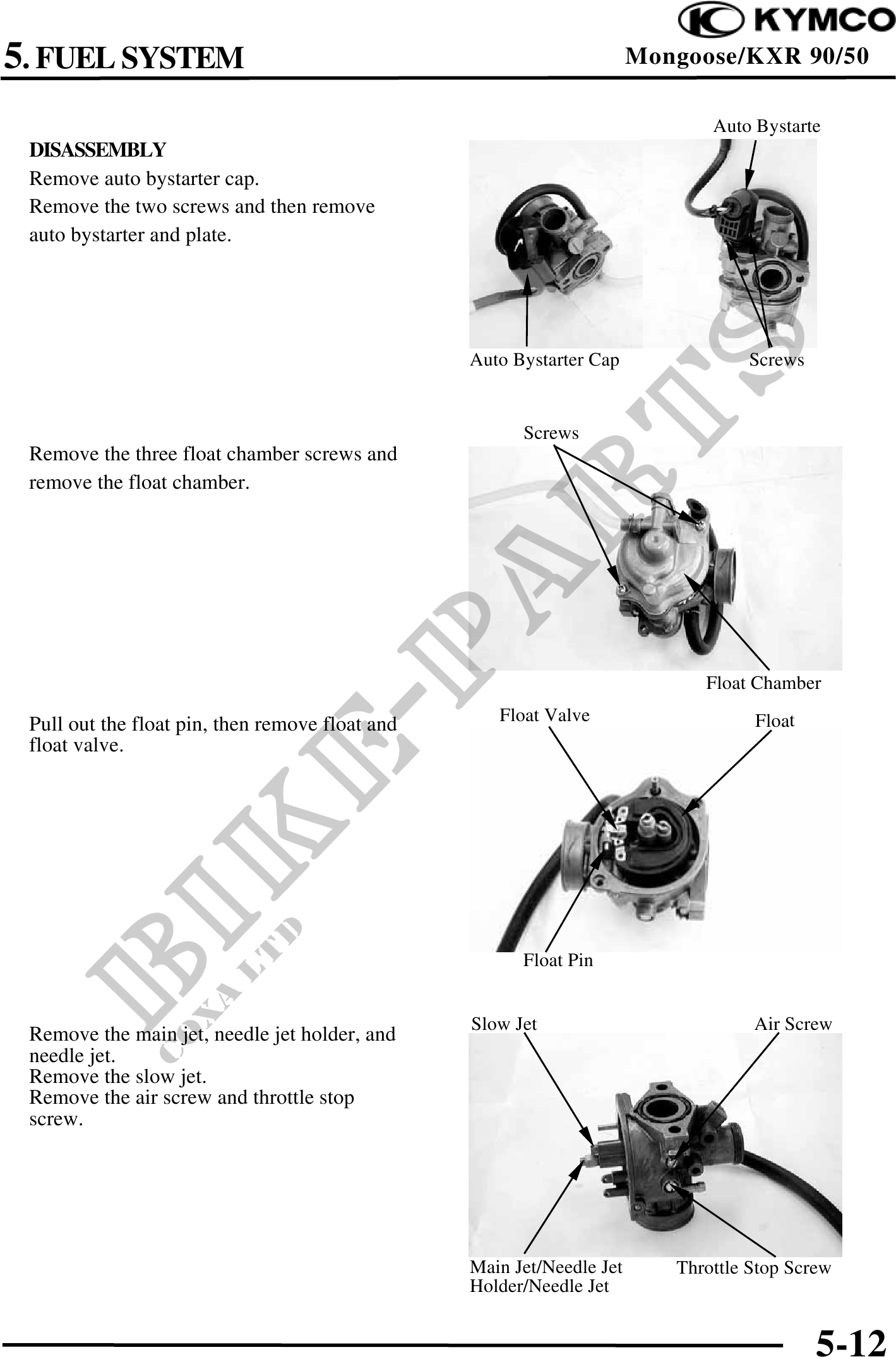

DISASSEMBLY
Remove auto bystarter cap.
Remove the two screws and then remove
auto bystarter and plate.
Auto Bystarter Cap Screws
Screws
Remove the three float chamber screws and
remove the float chamber.
Float Chamber
Pull out the float pin, then remove float and Float Valve Float
float valve.
Float Pin
Slow Jet Air Screw
Remove the main jet, needle jet holder, and
needle jet.
Remove the slow jet.
Remove the air screw and throttle stop
screw.
Main Jet/Needle Jet Throttle Stop Screw
Holder/Needle Jet
