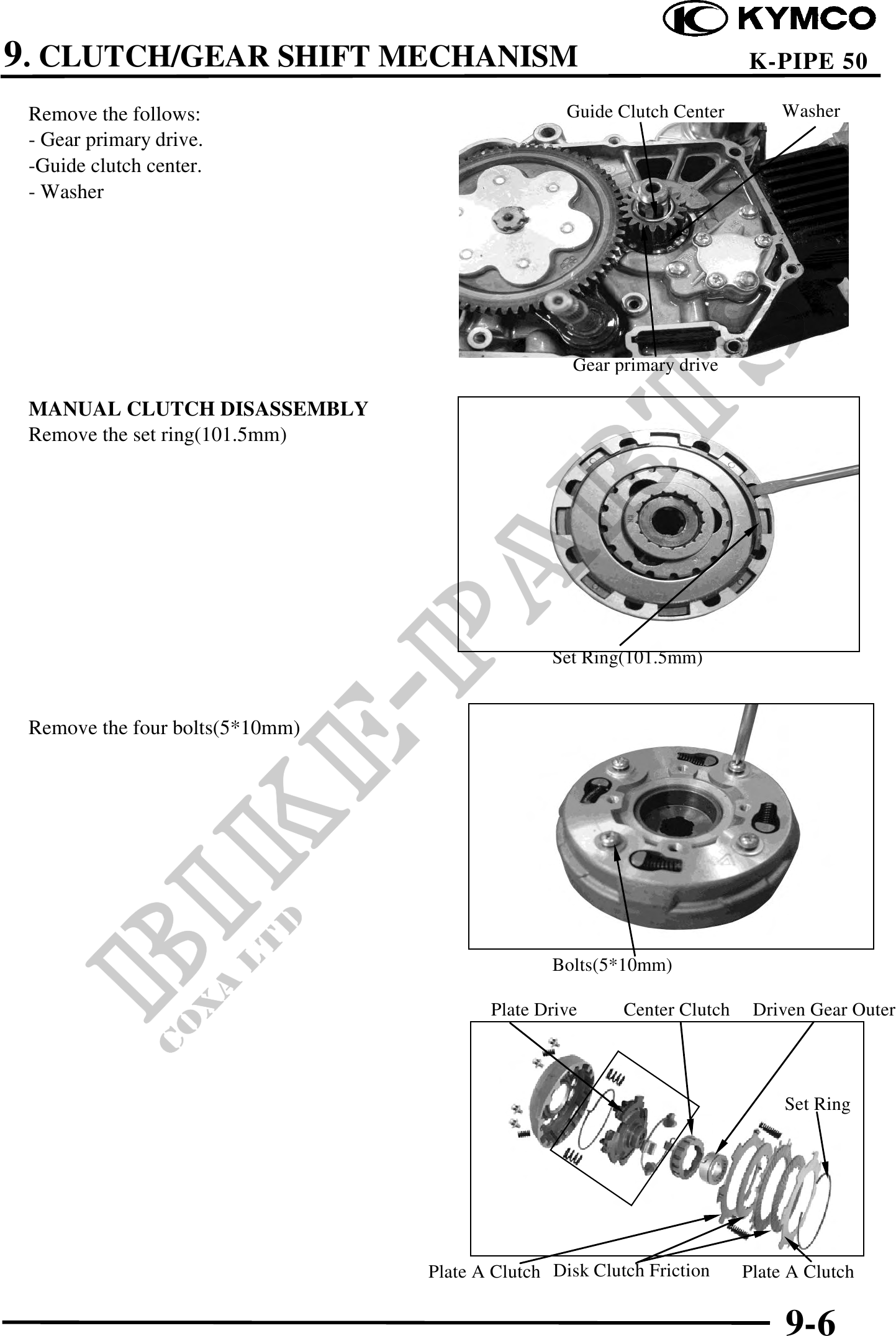

9. CLUTCH/GEAR SHIFT MECHANISM K-PIPE 50 Remove the follows: Guide Clutch Center Washer - Gear primary drive. -Guide clutch center. - Washer Gear primary drive MANUAL CLUTCH DISASSEMBLY Remove the set ring(101.5mm) Set Ring(101.5mm) Remove the four bolts(5*10mm) Bolts(5*10mm) Plate Drive Center Clutch Driven Gear Outer Set Ring Plate A Clutch Disk Clutch Friction Plate A Clutch 9-6
