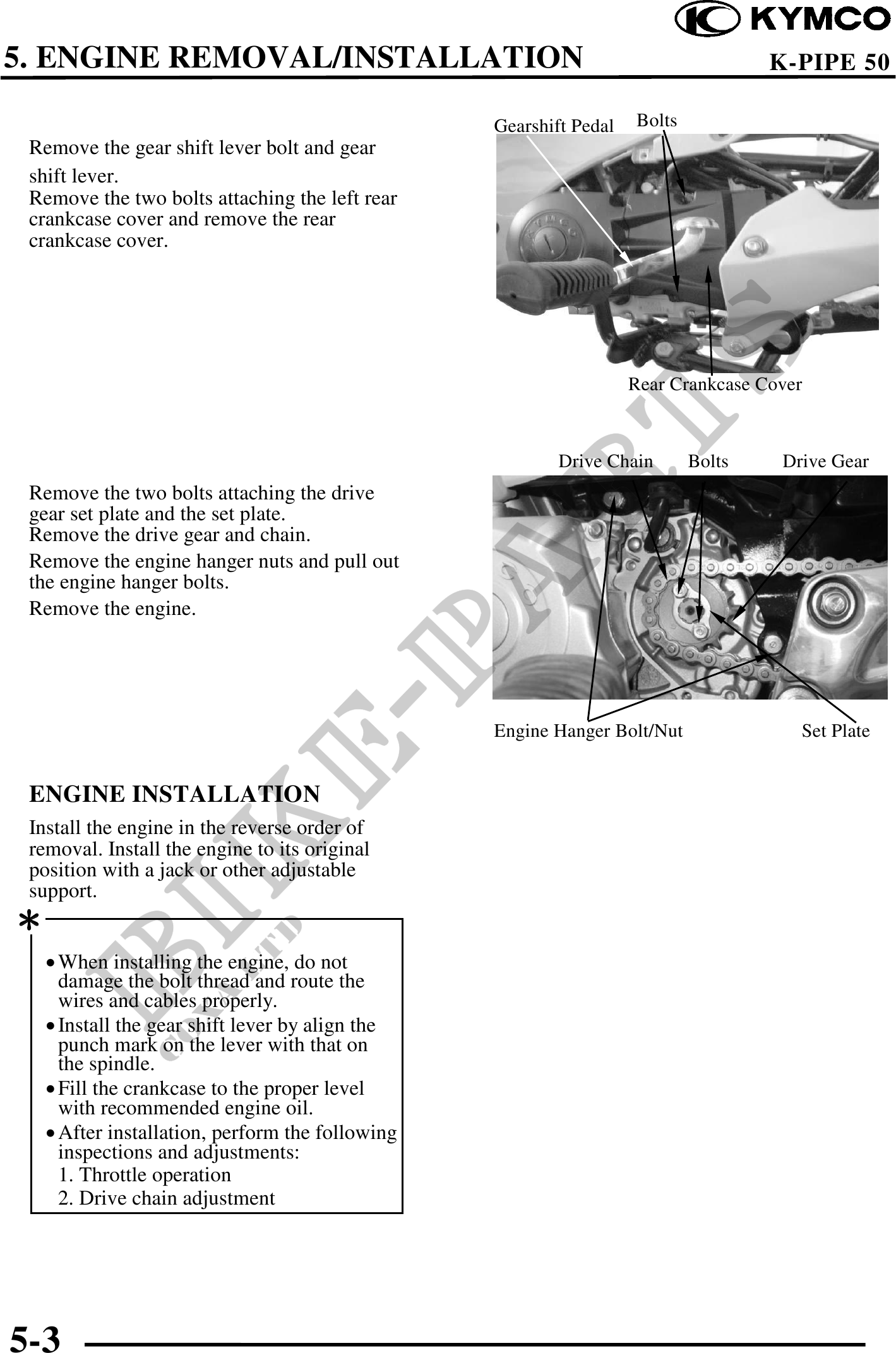

5. ENGINE REMOVAL/INSTALLATION K-PIPE 50 Gearshift Pedal Bolts Remove the gear shift lever bolt and gear shift lever. Remove the two bolts attaching the left rear crankcase cover and remove the rear crankcase cover. Rear Crankcase Cover Drive Chain Bolts Drive Gear Remove the two bolts attaching the drive gear set plate and the set plate. Remove the drive gear and chain. Remove the engine hanger nuts and pull out the engine hanger bolts. Remove the engine. Engine Hanger Bolt/Nut Set Plate ENGINE INSTALLATION Install the engine in the reverse order of removal. Install the engine to its original position with a jack or other adjustable support. When installing the engine, do not damage the bolt thread and route the wires and cables properly. Install the gear shift lever by align the punch mark on the lever with that on the spindle. Fill the crankcase to the proper level with recommended engine oil. After installation, perform the following inspections and adjustments: 1. Throttle operation 2. Drive chain adjustment 5-3
