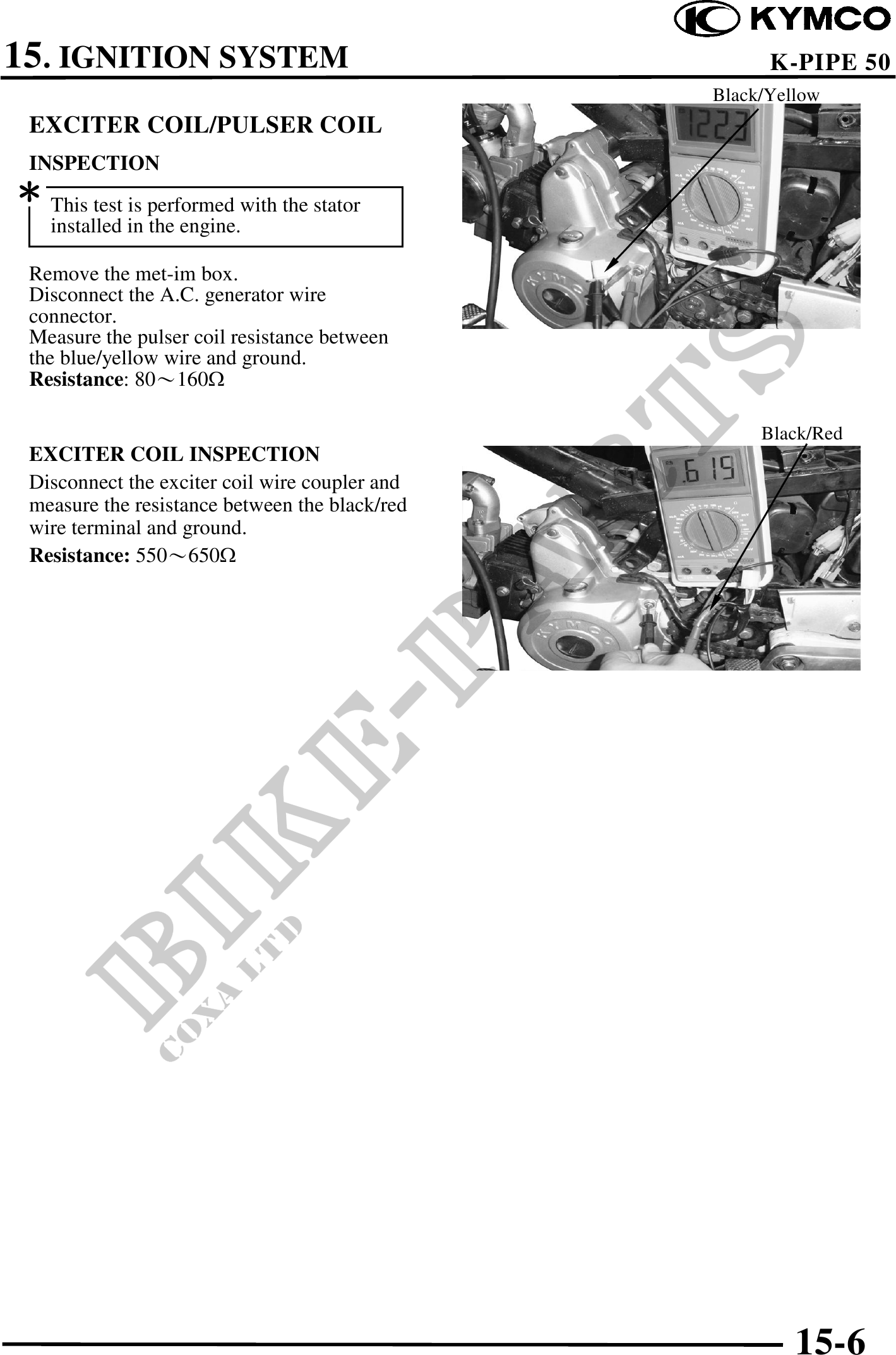

15. IGNITION SYSTEM K-PIPE 50 Black/Yellow EXCITER COIL/PULSER COIL INSPECTION This test is performed with the stator installed in the engine. Remove the met-im box. Disconnect the A.C. generator wire connector. Measure the pulser coil resistance between the blue/yellow wire and ground. Resistance: 80160 Black/Red EXCITER COIL INSPECTION Disconnect the exciter coil wire coupler and measure the resistance between the black/red wire terminal and ground. Resistance: 550650 15-6
