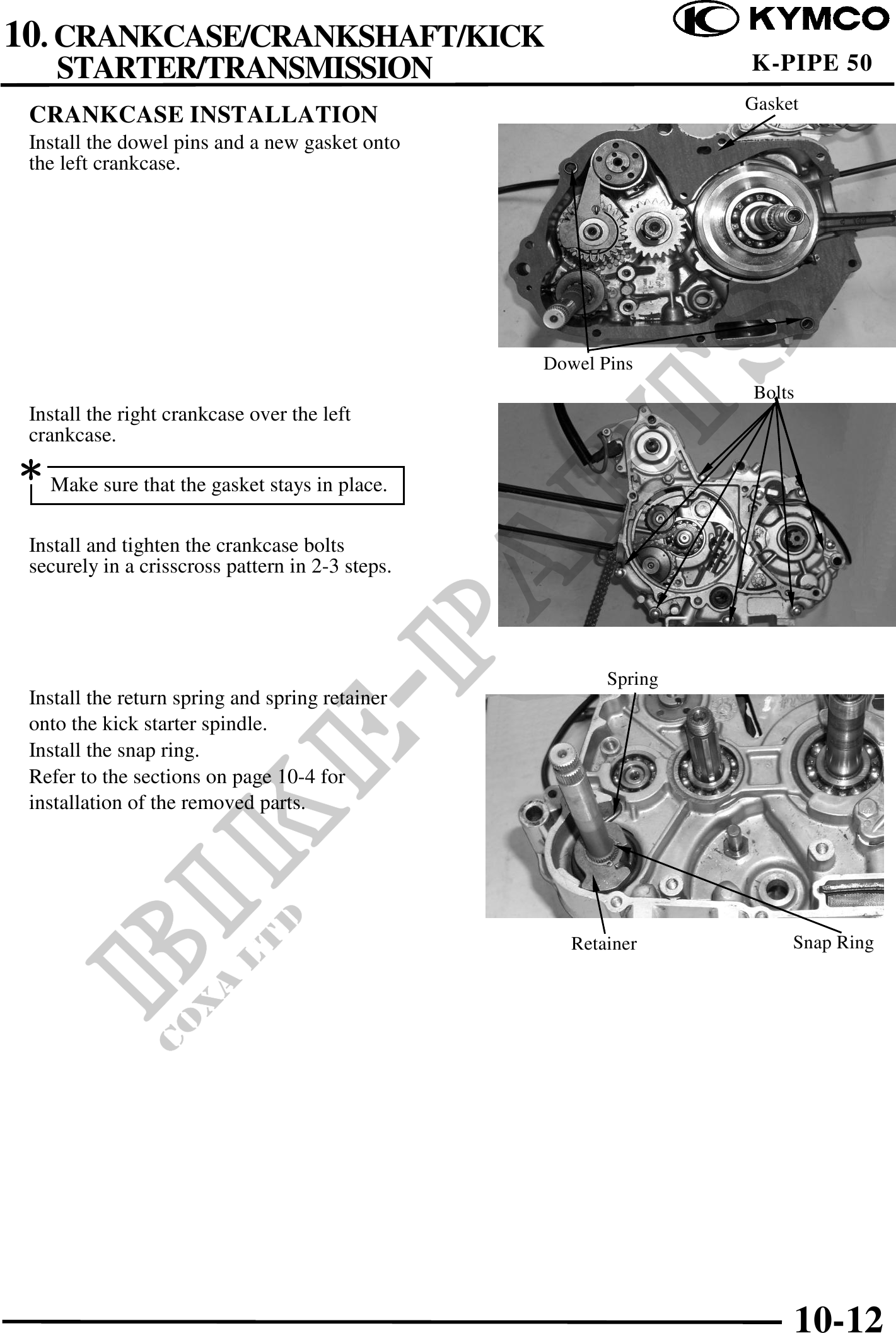

10. CRANKCASE/CRANKSHAFT/KICK STARTER/TRANSMISSION K-PIPE 50 Gasket CRANKCASE INSTALLATION Install the dowel pins and a new gasket onto the left crankcase. Dowel Pins Bolts Install the right crankcase over the left crankcase. Make sure that the gasket stays in place. Install and tighten the crankcase bolts securely in a crisscross pattern in 2-3 steps. Spring Install the return spring and spring retainer onto the kick starter spindle. Install the snap ring. Refer to the sections on page 10-4 for installation of the removed parts. Retainer Snap Ring 10-12
