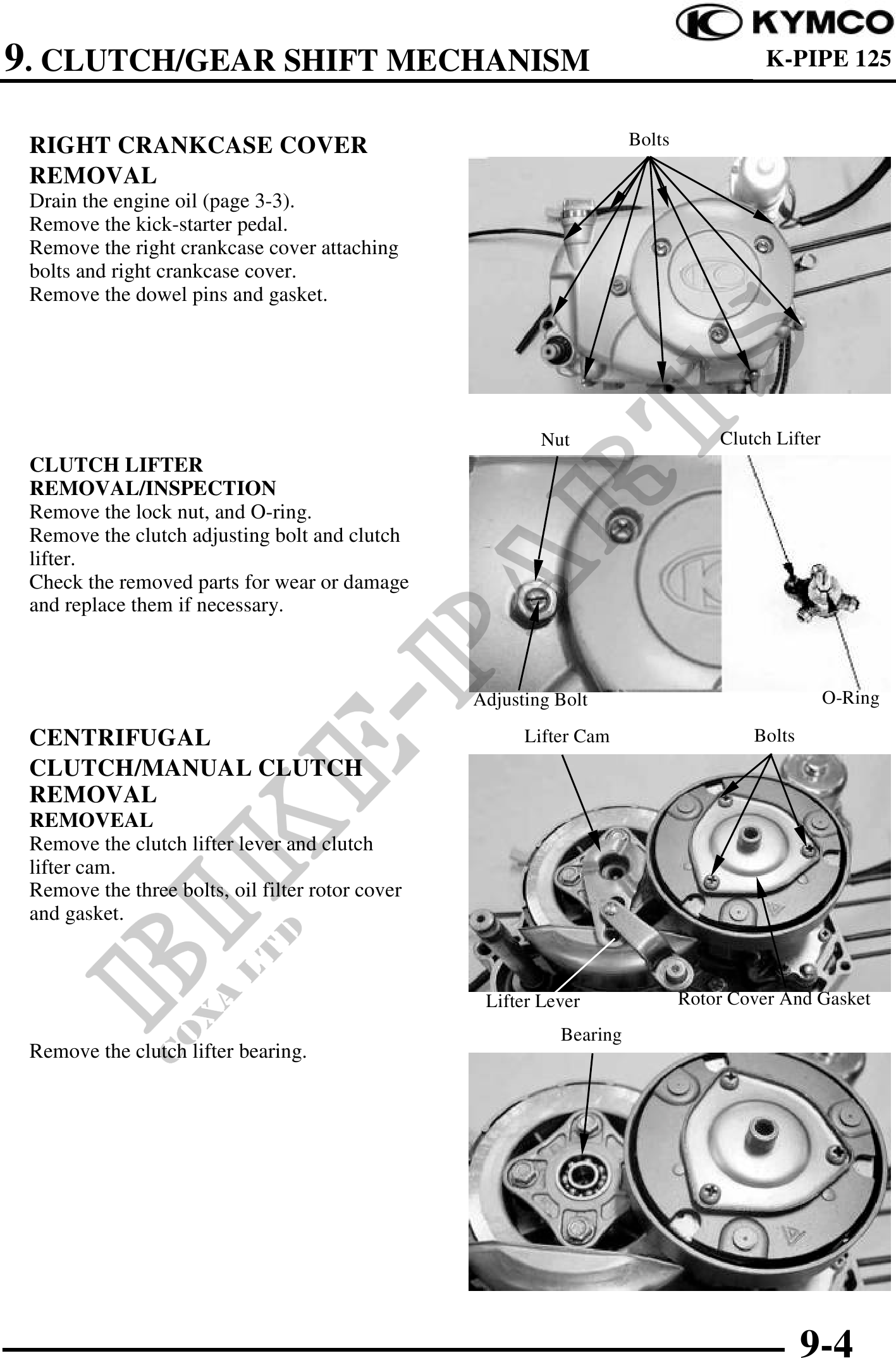

9. CLUTCH/GEAR SHIFT MECHANISM K-PIPE 125
RIGHT CRANKCASE COVER Bolts
REMOVAL
Drain the engine oil (page 3-3).
Remove the kick-starter pedal.
Remove the right crankcase cover attaching
bolts and right crankcase cover.
Remove the dowel pins and gasket.
Nut Clutch Lifter
CLUTCH LIFTER
REMOVAL/INSPECTION
Remove the lock nut, and O-ring.
Remove the clutch adjusting bolt and clutch
lifter.
Check the removed parts for wear or damage
and replace them if necessary.
Adjusting Bolt O-Ring
CENTRIFUGAL Lifter Cam Bolts
CLUTCH/MANUAL CLUTCH
REMOVAL
REMOVEAL
Remove the clutch lifter lever and clutch
lifter cam.
Remove the three bolts, oil filter rotor cover
and gasket.
Lifter Lever Rotor Cover And Gasket
Bearing
Remove the clutch lifter bearing.
9-4
