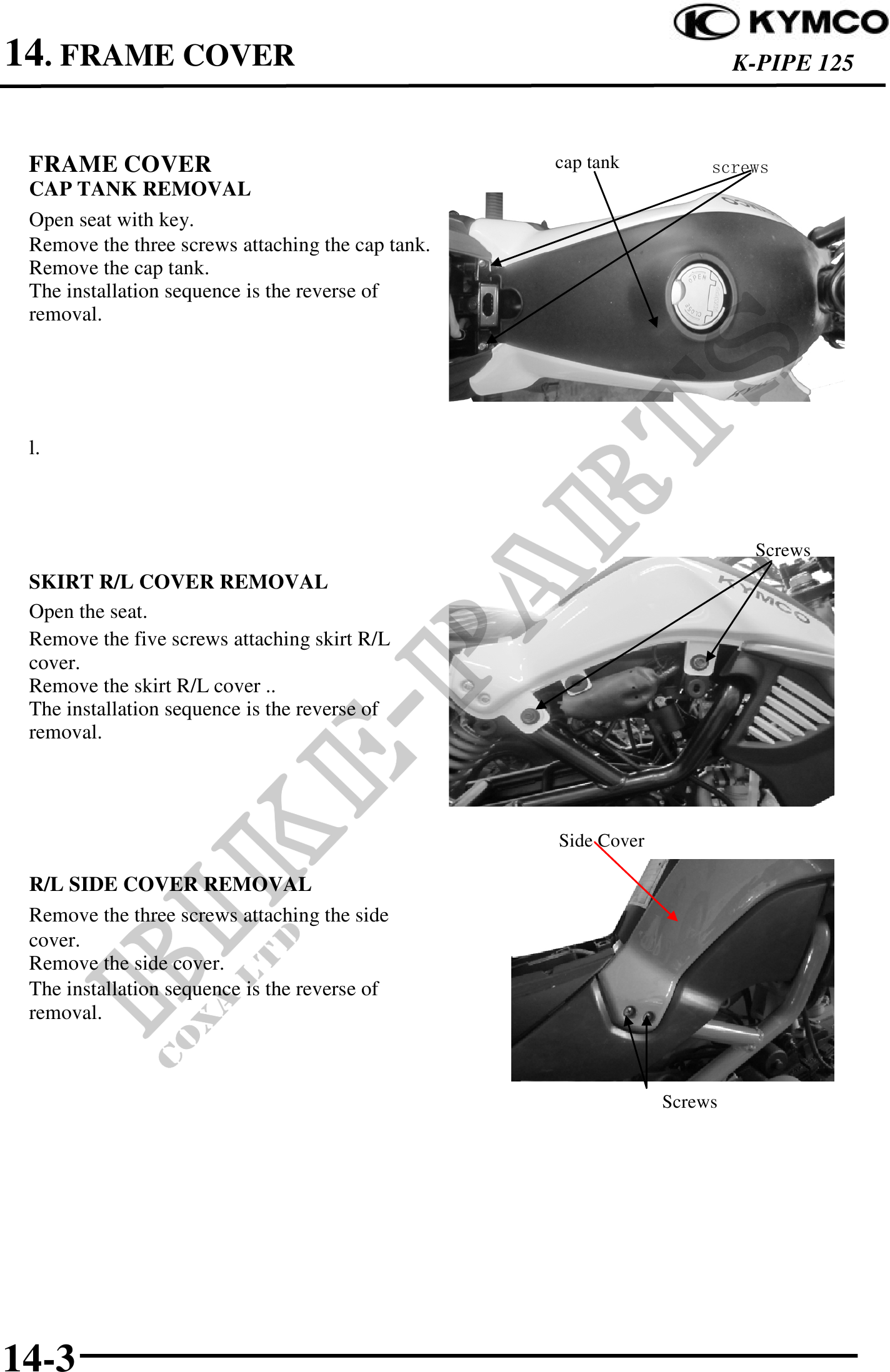

14. FRAME COVER K-PIPE 125
FRAME COVER cap tank screws
CAP TANK REMOVAL
Open seat with key.
Remove the three screws attaching the cap tank.
Remove the cap tank.
The installation sequence is the reverse of
removal.
l.
Screws
SKIRT R/L COVER REMOVAL
Open the seat.
Remove the five screws attaching skirt R/L
cover.
Remove the skirt R/L cover ..
The installation sequence is the reverse of
removal.
Side Cover
R/L SIDE COVER REMOVAL
Remove the three screws attaching the side
cover.
Remove the side cover.
The installation sequence is the reverse of
removal.
Screws
14-3
