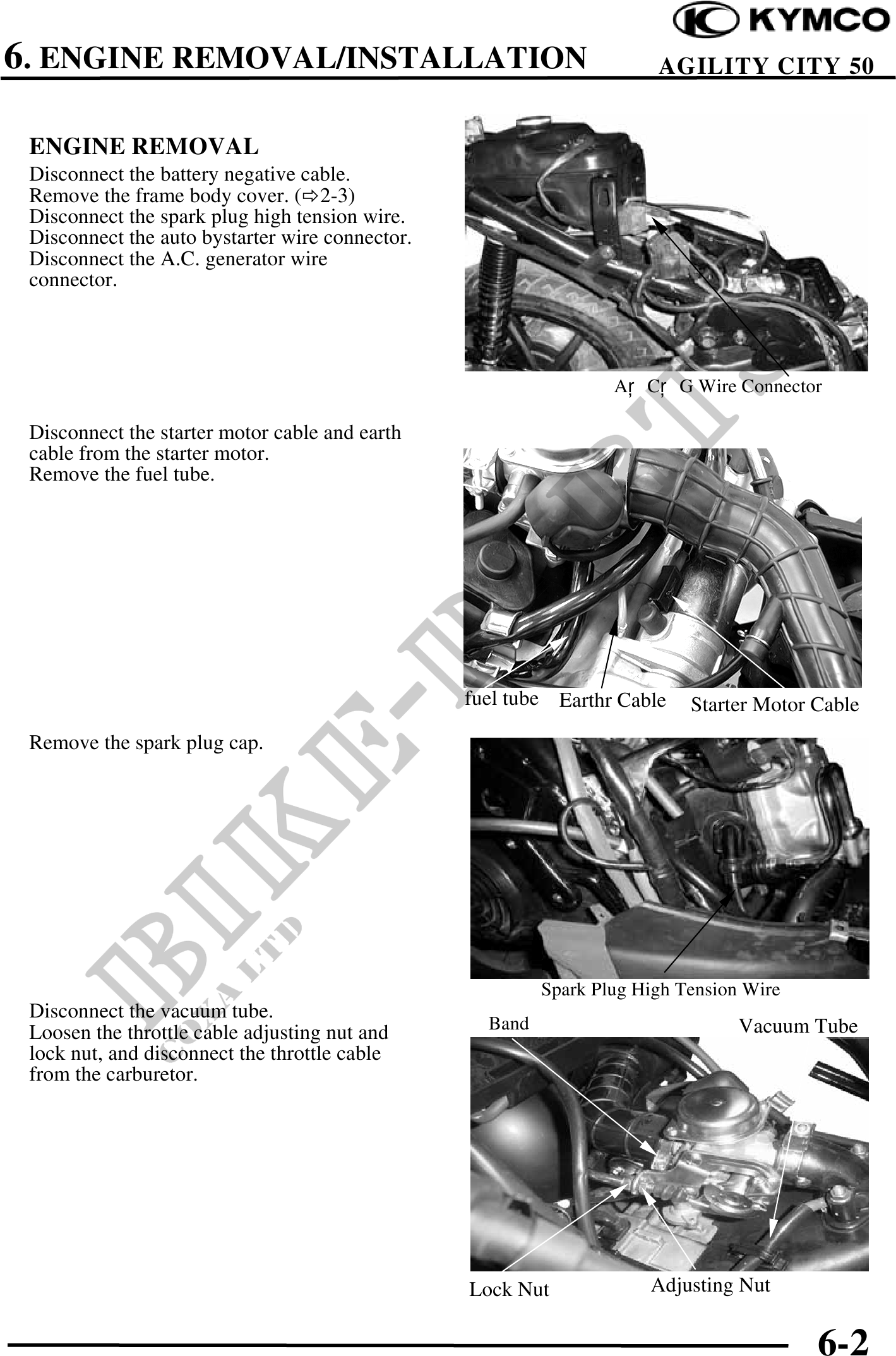

          6. ENGINE REMOVAL/INSTALLATION                                         AGILITY CITY 50


 ENGINE REMOVAL
 Disconnect the battery negative cable.
 Remove the frame body cover. ( 2-3)
 Disconnect the spark plug high tension wire.
 Disconnect the auto bystarter wire connector.
 Disconnect the A.C. generator wire
 connector.




                                                                  ACG Wire Connector

 Disconnect the starter motor cable and earth
 cable from the starter motor.
 Remove the fuel tube.




                                                 fuel tube Earthr Cable    Starter Motor Cable
 Remove the spark plug cap.




                                                          Spark Plug High Tension Wire
 Disconnect the vacuum tube.
 Loosen the throttle cable adjusting nut and       Band                          Vacuum Tube
 lock nut, and disconnect the throttle cable
 from the carburetor.




                                                 Lock Nut             Adjusting Nut


                                                                                         6-2
