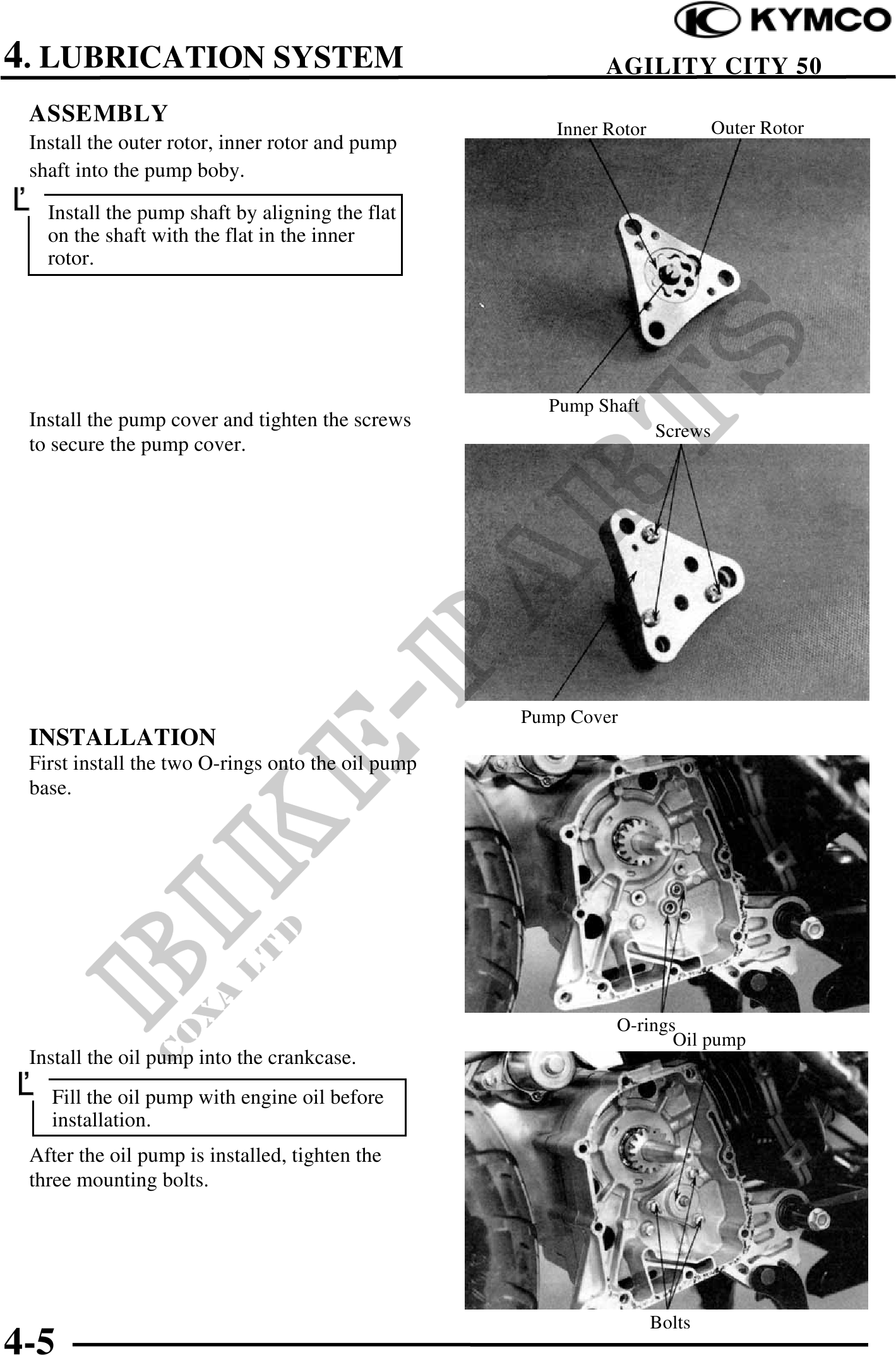

          4. LUBRICATION SYSTEM                                       AGILITY CITY 50
 ASSEMBLY
                                                      Inner Rotor            Outer Rotor
 Install the outer rotor, inner rotor and pump
 shaft into the pump boby.
 Install the pump shaft by aligning the flat
    on the shaft with the flat in the inner
    rotor.




                                                     Pump Shaft
 Install the pump cover and tighten the screws
                                                                    Screws
 to secure the pump cover.




                                                   Pump Cover
 INSTALLATION
 First install the two O-rings onto the oil pump
 base.




                                                             O-rings
                                                                    Oil pump
 Install the oil pump into the crankcase.
 Fill the oil pump with engine oil before
    installation.
 After the oil pump is installed, tighten the
 three mounting bolts.




                                                                    Bolts
4-5
