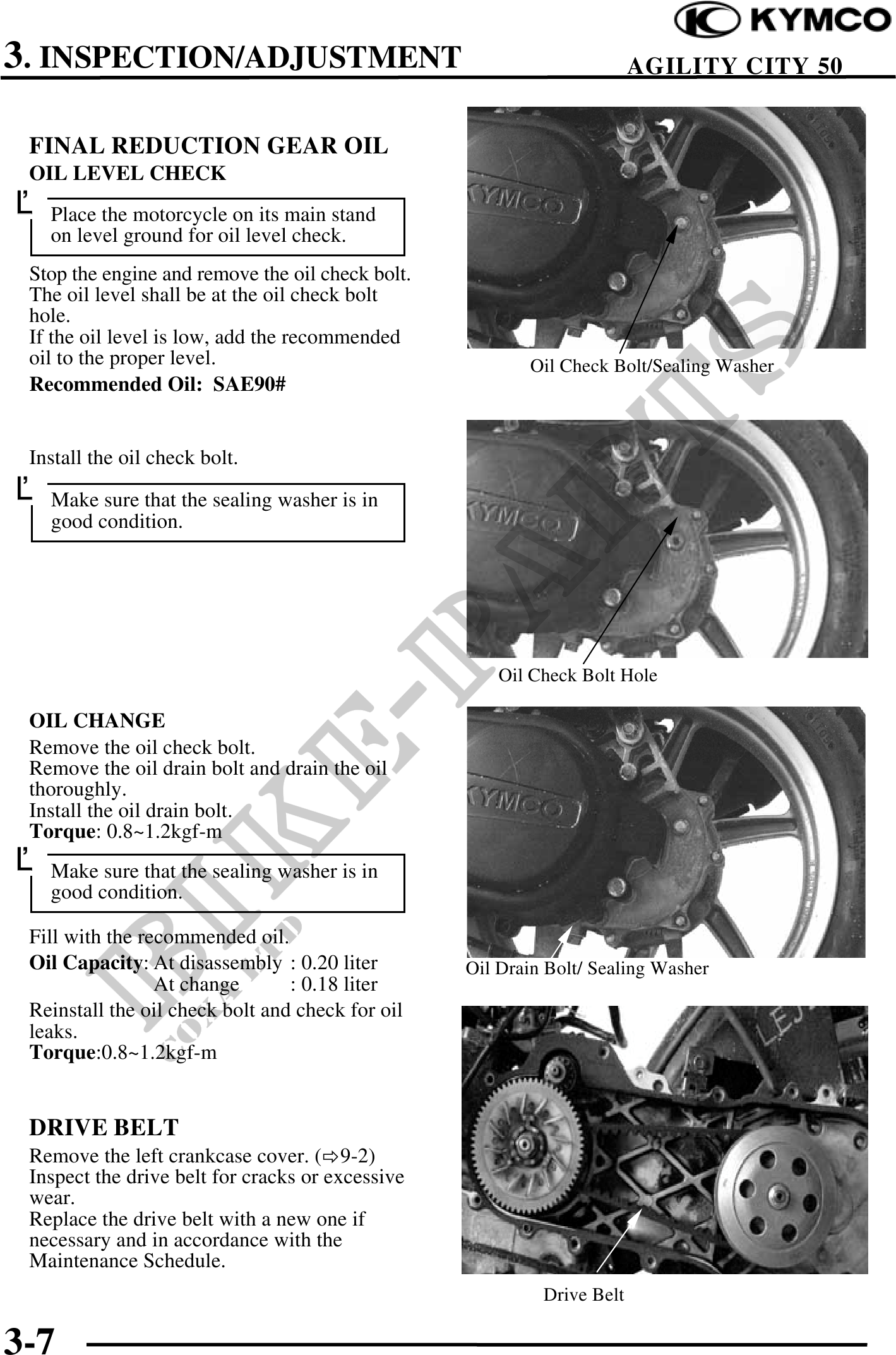

          3. INSPECTION/ADJUSTMENT                                                AGILITY CITY 50


 FINAL REDUCTION GEAR OIL
 OIL LEVEL CHECK
 Place the motorcycle on its main stand
   on level ground for oil level check.
 Stop the engine and remove the oil check bolt.
 The oil level shall be at the oil check bolt
 hole.
 If the oil level is low, add the recommended
 oil to the proper level.                                Oil Check Bolt/Sealing Washer
 Recommended Oil: SAE90#


 Install the oil check bolt.
 Make sure that the sealing washer is in
   good condition.




                                                      Oil Check Bolt Hole

 OIL CHANGE
 Remove the oil check bolt.
 Remove the oil drain bolt and drain the oil
 thoroughly.
 Install the oil drain bolt.
 Torque: 0.8~1.2kgf-m
 Make sure that the sealing washer is in
   good condition.

 Fill with the recommended oil.
 Oil Capacity: At disassembly : 0.20 liter        Oil Drain Bolt/ Sealing Washer
                 At change       : 0.18 liter
 Reinstall the oil check bolt and check for oil
 leaks.
 Torque:0.8~1.2kgf-m


 DRIVE BELT
 Remove the left crankcase cover. ( 9-2)
 Inspect the drive belt for cracks or excessive
 wear.
 Replace the drive belt with a new one if
 necessary and in accordance with the
 Maintenance Schedule.
                                                           Drive Belt
