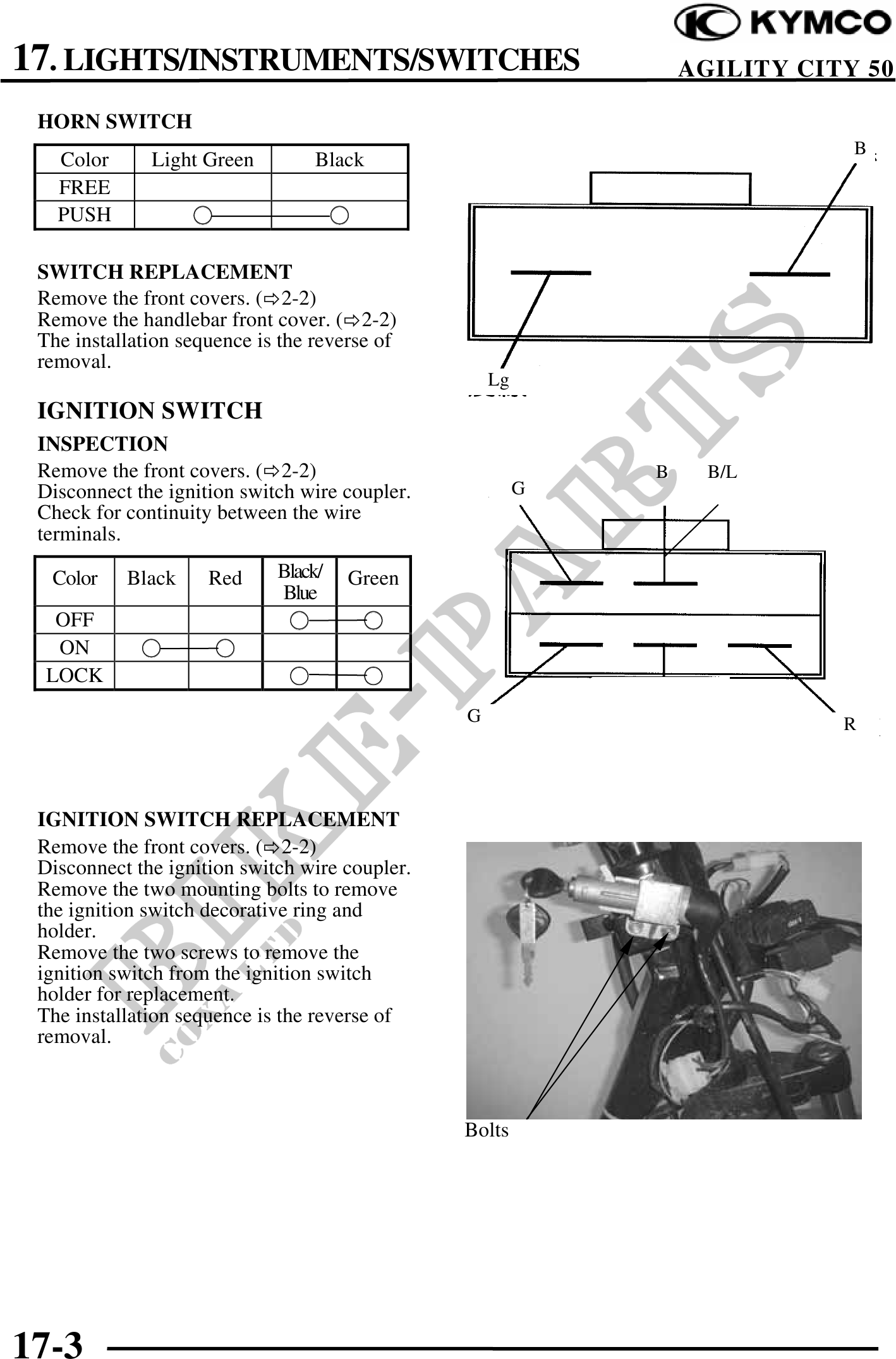

          17. LIGHTS/INSTRUMENTS/SWITCHES                                  AGILITY CITY 50

 HORN SWITCH
                                                                             B
   Color      Light Green         Black
   FREE
   PUSH

 SWITCH REPLACEMENT
 Remove the front covers. ( 2-2)
 Remove the handlebar front cover. ( 2-2)
 The installation sequence is the reverse of
 removal.
                                                    Lg
 IGNITION SWITCH
 INSPECTION
 Remove the front covers. ( 2-2)                             B     B/L
 Disconnect the ignition switch wire coupler.            G
 Check for continuity between the wire
 terminals.

  Color    Black     Red     Black/   Green
                             Blue
   OFF
   ON
  LOCK
                                                G                           R




 IGNITION SWITCH REPLACEMENT
 Remove the front covers. ( 2-2)
 Disconnect the ignition switch wire coupler.
 Remove the two mounting bolts to remove
 the ignition switch decorative ring and
 holder.
 Remove the two screws to remove the
 ignition switch from the ignition switch
 holder for replacement.
 The installation sequence is the reverse of
 removal.



                                                Bolts
