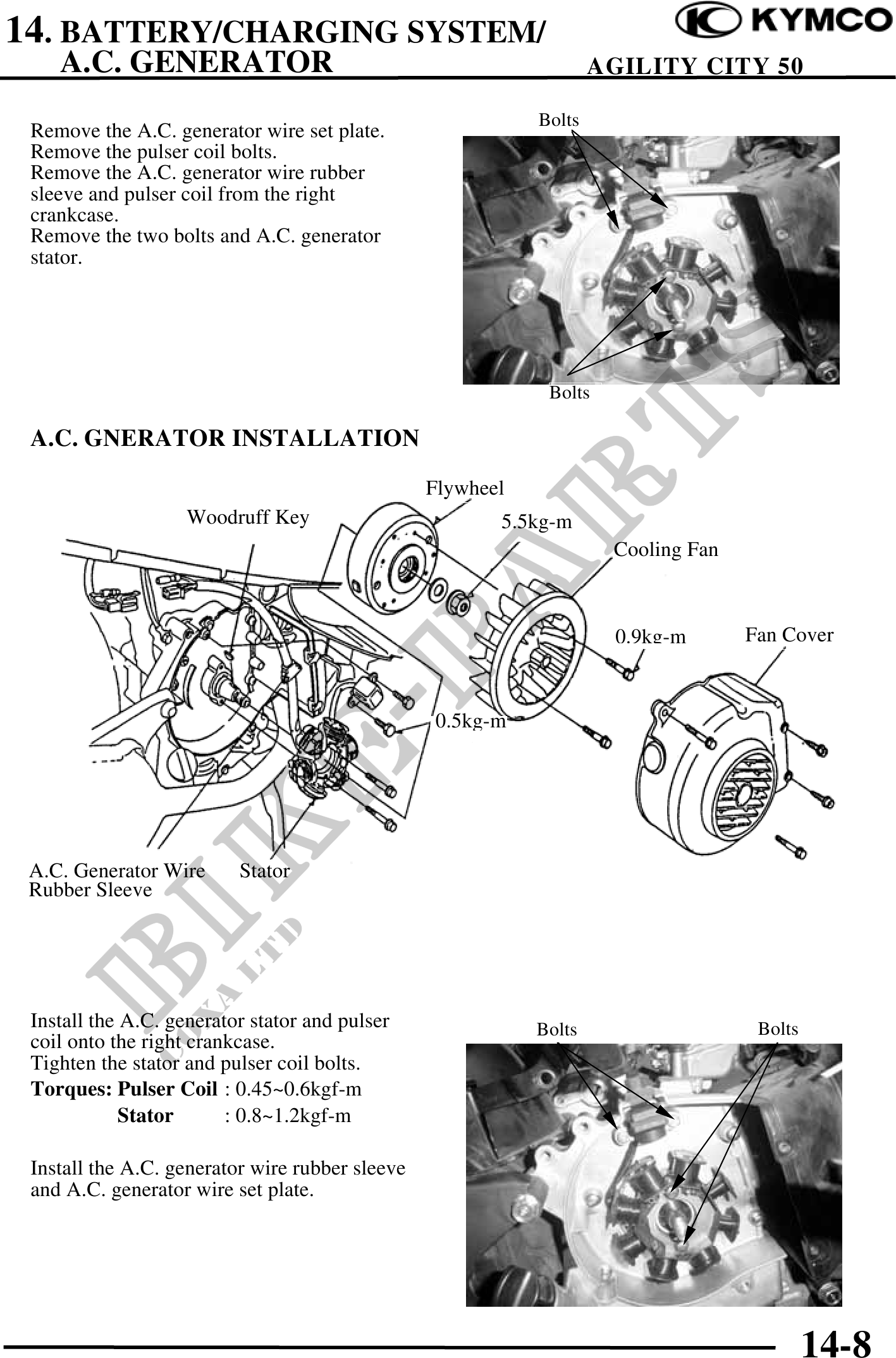

          14. BATTERY/CHARGING SYSTEM/
    A.C. GENERATOR                                                  AGILITY CITY 50

                                                            Bolts
 Remove the A.C. generator wire set plate.
 Remove the pulser coil bolts.
 Remove the A.C. generator wire rubber
 sleeve and pulser coil from the right
 crankcase.
 Remove the two bolts and A.C. generator
 stator.




                                                             Bolts

 A.C. GNERATOR INSTALLATION
                                                 Flywheel
                    Woodruff Key                        5.5kg-m
                                                                     Cooling Fan



                                                                     0.9kg-m       Fan Cover



                                                 0.5kg-m




 A.C. Generator Wire      Stator
 Rubber Sleeve




 Install the A.C. generator stator and pulser               Bolts                   Bolts
 coil onto the right crankcase.
 Tighten the stator and pulser coil bolts.
 Torques: Pulser Coil : 0.45~0.6kgf-m
             Stator      : 0.8~1.2kgf-m

 Install the A.C. generator wire rubber sleeve
 and A.C. generator wire set plate.




                                                                                            14-8
