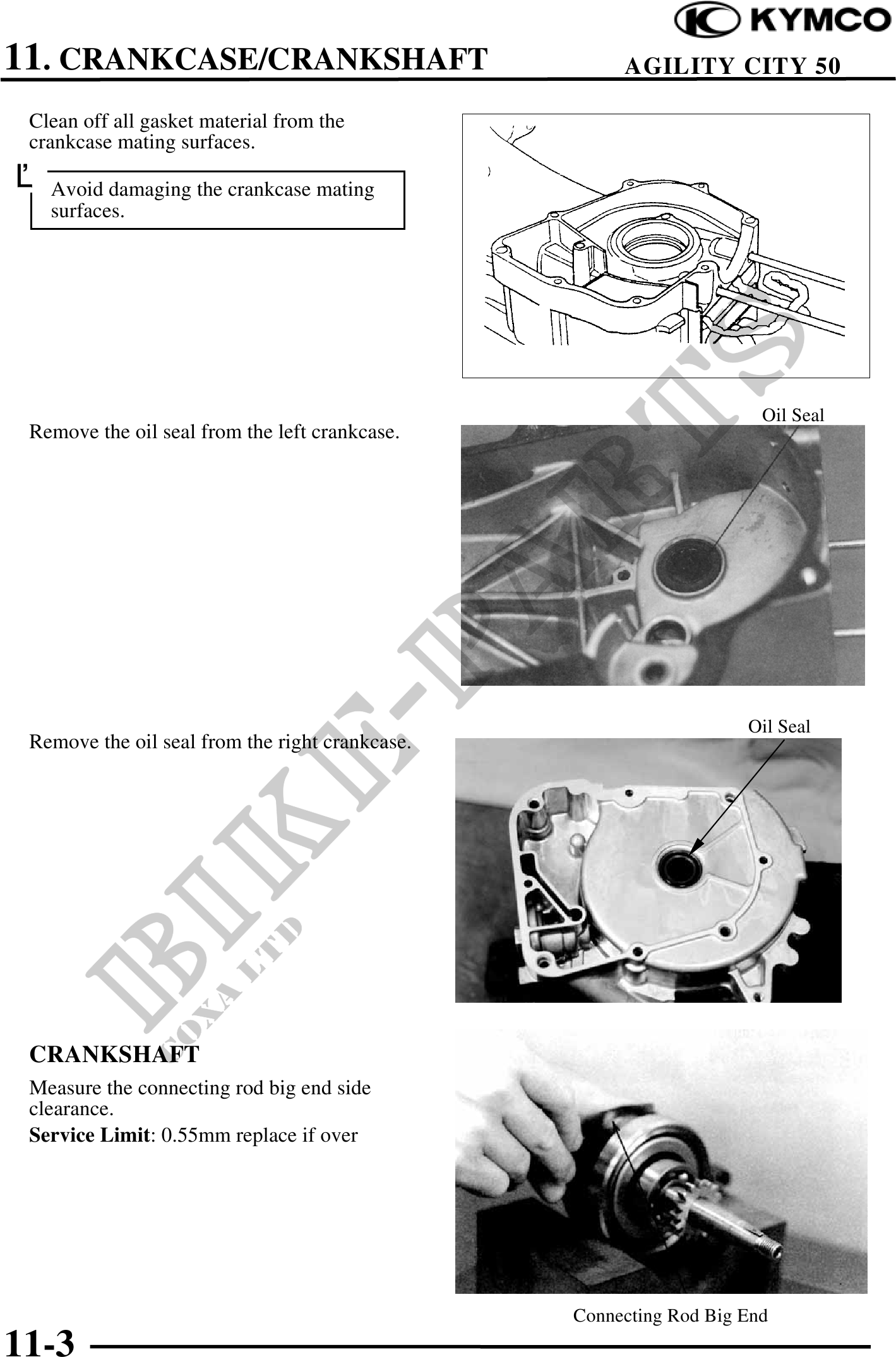

11. CRANKCASE/CRANKSHAFT AGILITY CITY 50
Clean off all gasket material from the
crankcase mating surfaces.
Avoid damaging the crankcase mating
surfaces.
Oil Seal
Remove the oil seal from the left crankcase.
Oil Seal
Remove the oil seal from the right crankcase.
CRANKSHAFT
Measure the connecting rod big end side
clearance.
Service Limit: 0.55mm replace if over
Connecting Rod Big End
11-3
