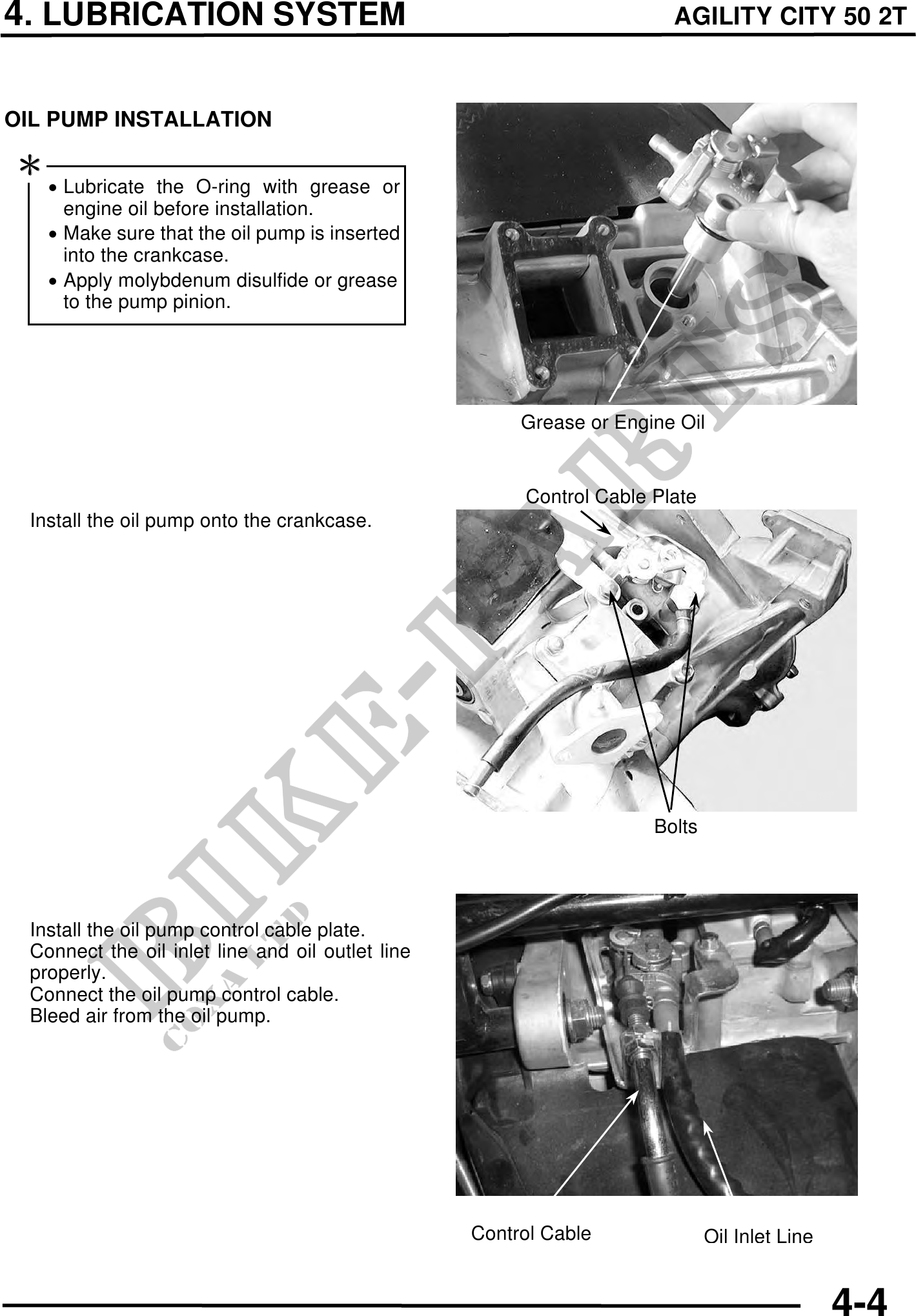

4. LUBRICATION SYSTEM AGILITY CITY 50 2T
OIL PUMP INSTALLATION
· Lubricate the O-ring with grease or
engine oil before installation.
· Make sure that the oil pump is inserted
into the crankcase.
· Apply molybdenum disulfide or grease
to the pump pinion.
Grease or Engine Oil
Control Cable Plate
Install the oil pump onto the crankcase.
Bolts
Install the oil pump control cable plate.
Connect the oil inlet line and oil outlet line
properly.
Connect the oil pump control cable.
Bleed air from the oil pump.
Control Cable Oil Inlet Line
4-4
