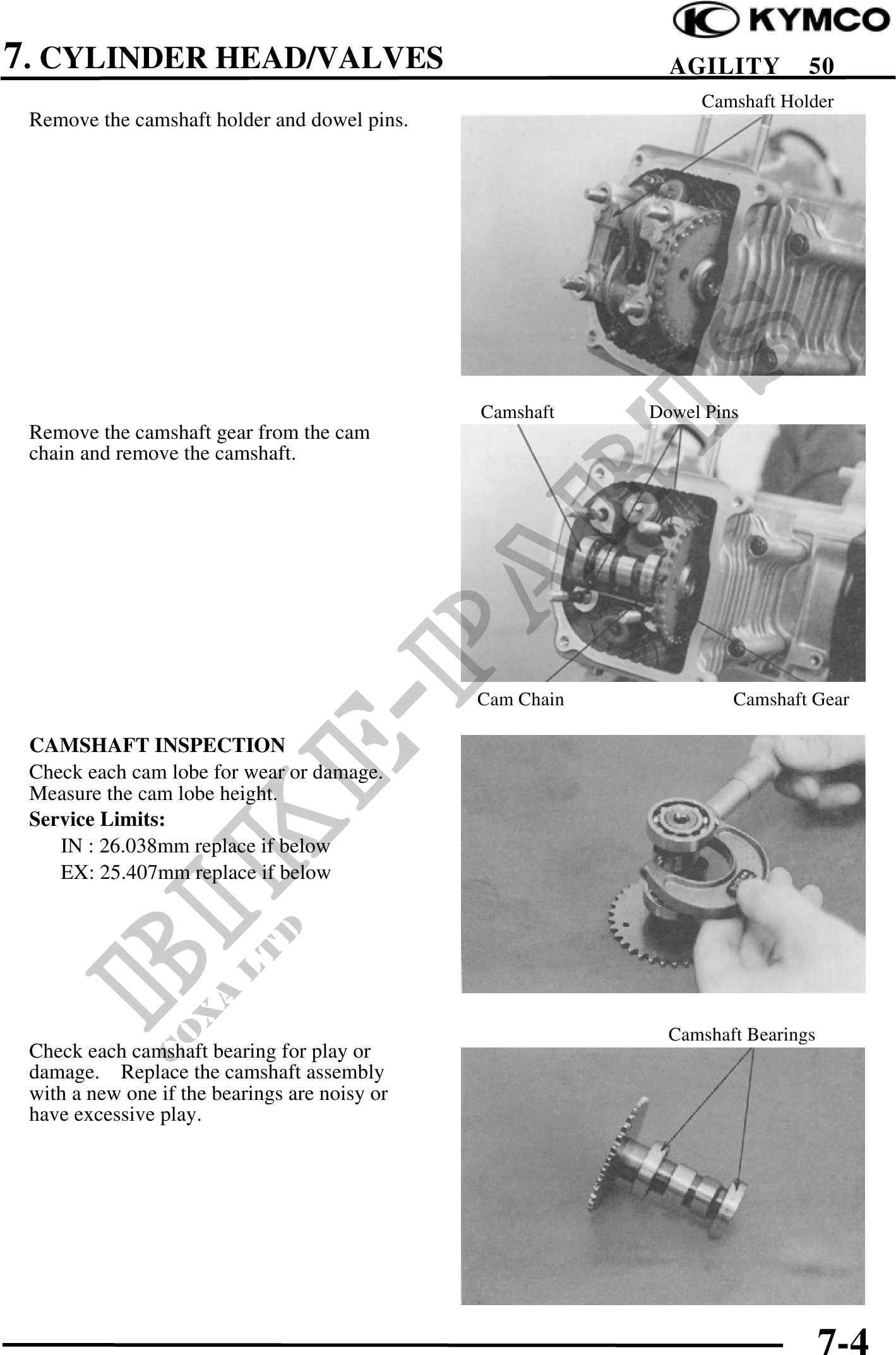

7. CYLINDER HEAD/VALVES AGILITY 50
Camshaft Holder
Remove the camshaft holder and dowel pins.
Camshaft Dowel Pins
Remove the camshaft gear from the cam
chain and remove the camshaft.
Cam Chain Camshaft Gear
CAMSHAFT INSPECTION
Check each cam lobe for wear or damage.
Measure the cam lobe height.
Service Limits:
IN : 26.038mm replace if below
EX: 25.407mm replace if below
Camshaft Bearings
Check each camshaft bearing for play or
damage. Replace the camshaft assembly
with a new one if the bearings are noisy or
have excessive play.
