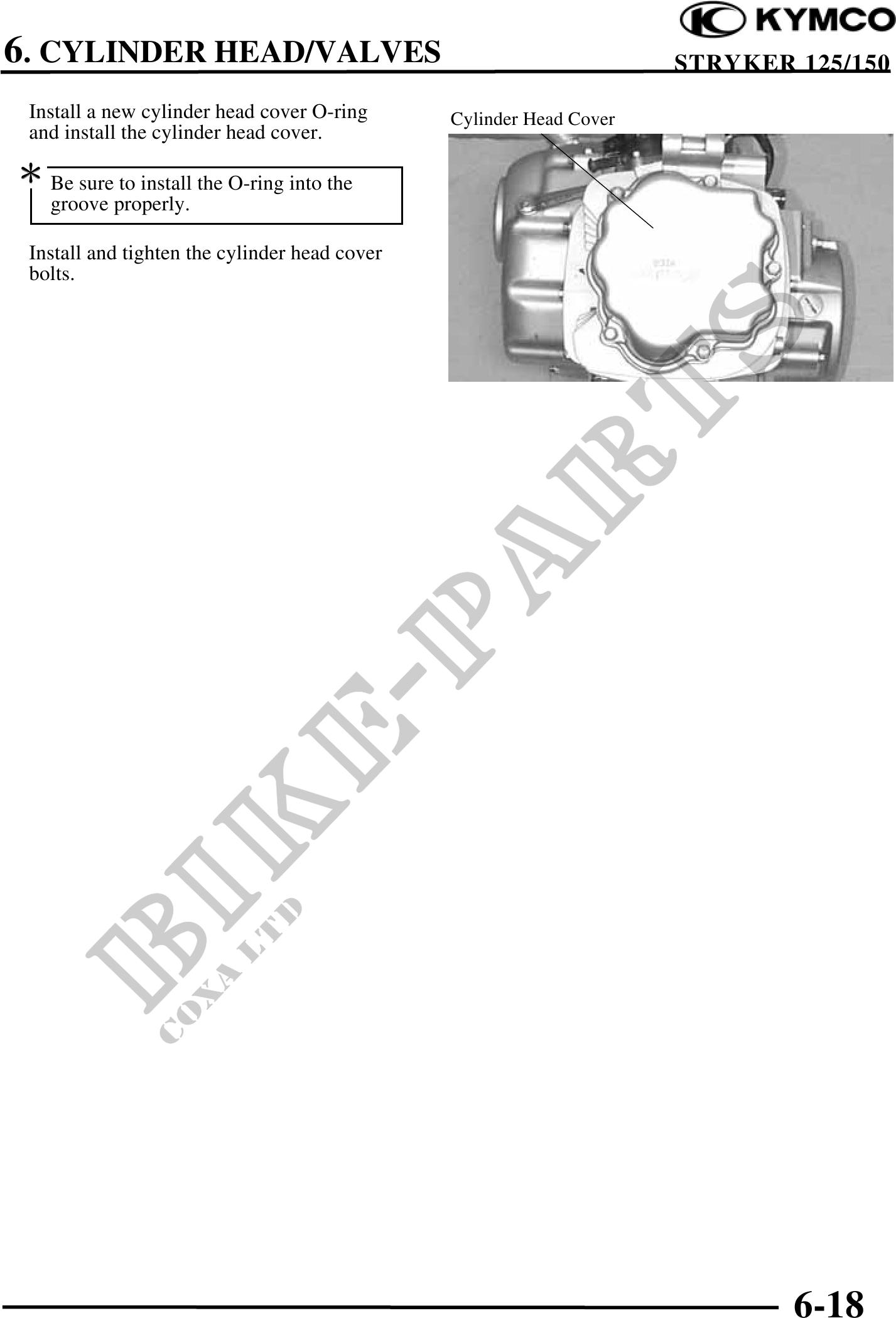

          6. CYLINDER HEAD/VALVES                                              STRYKER 125/150
 Install a new cylinder head cover O-ring      Cylinder Head Cover
 and install the cylinder head cover.

 Be sure to install the O-ring into the
    groove properly.

 Install and tighten the cylinder head cover
 bolts.




                                                                             6-18
