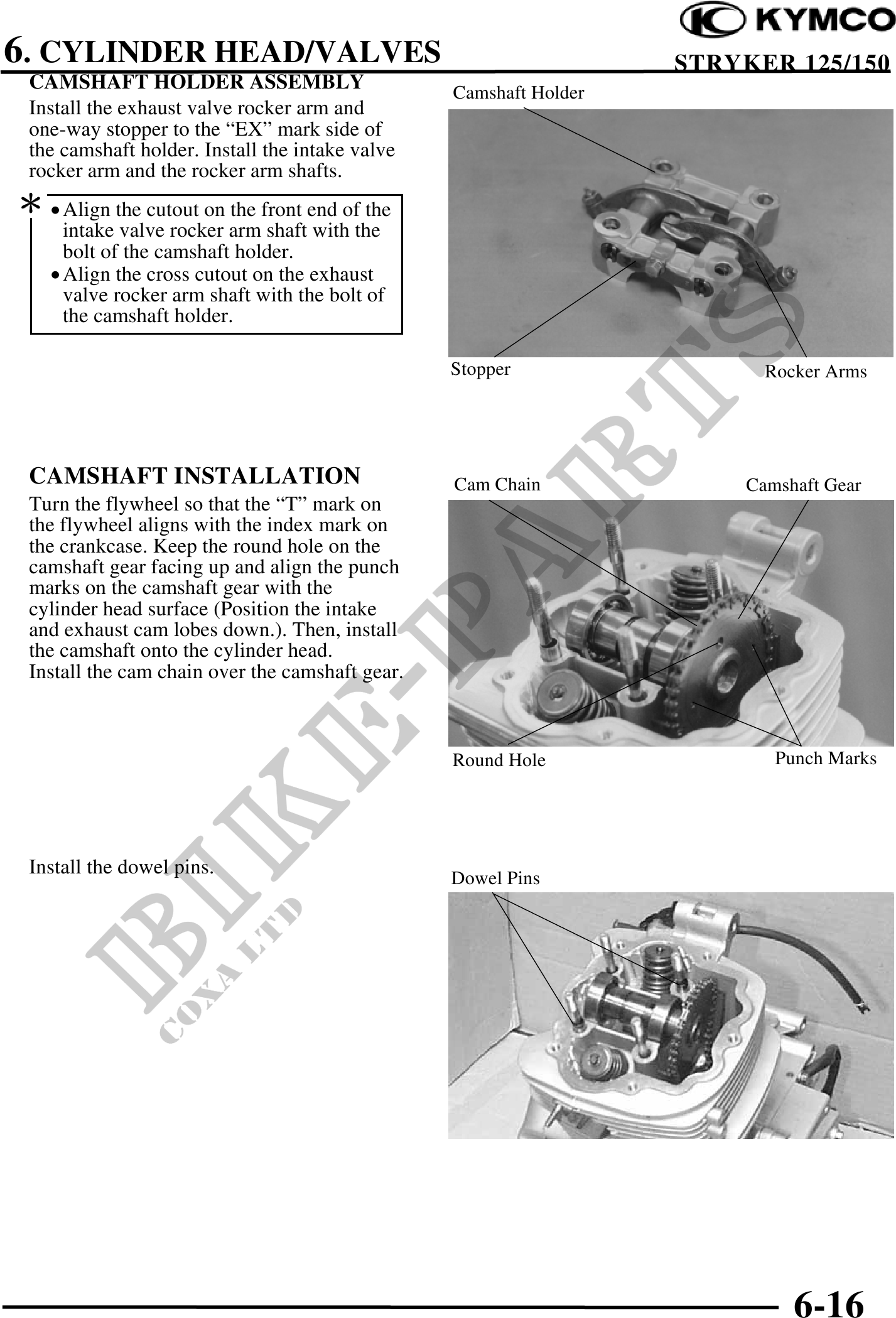

          6. CYLINDER HEAD/VALVES                                            STRYKER 125/150
 CAMSHAFT HOLDER ASSEMBLY                        Camshaft Holder
 Install the exhaust valve rocker arm and
 one-way stopper to the "EX" mark side of
 the camshaft holder. Install the intake valve
 rocker arm and the rocker arm shafts.
 · Align the cutout on the front end of the
      intake valve rocker arm shaft with the
      bolt of the camshaft holder.
    · Align the cross cutout on the exhaust
      valve rocker arm shaft with the bolt of
      the camshaft holder.

                                                 Stopper                 Rocker Arms




 CAMSHAFT INSTALLATION                           Cam Chain             Camshaft Gear
 Turn the flywheel so that the "T" mark on
 the flywheel aligns with the index mark on
 the crankcase. Keep the round hole on the
 camshaft gear facing up and align the punch
 marks on the camshaft gear with the
 cylinder head surface (Position the intake
 and exhaust cam lobes down.). Then, install
 the camshaft onto the cylinder head.
 Install the cam chain over the camshaft gear.



                                                 Round Hole               Punch Marks




 Install the dowel pins.
                                                 Dowel Pins




                                                                            6-16
