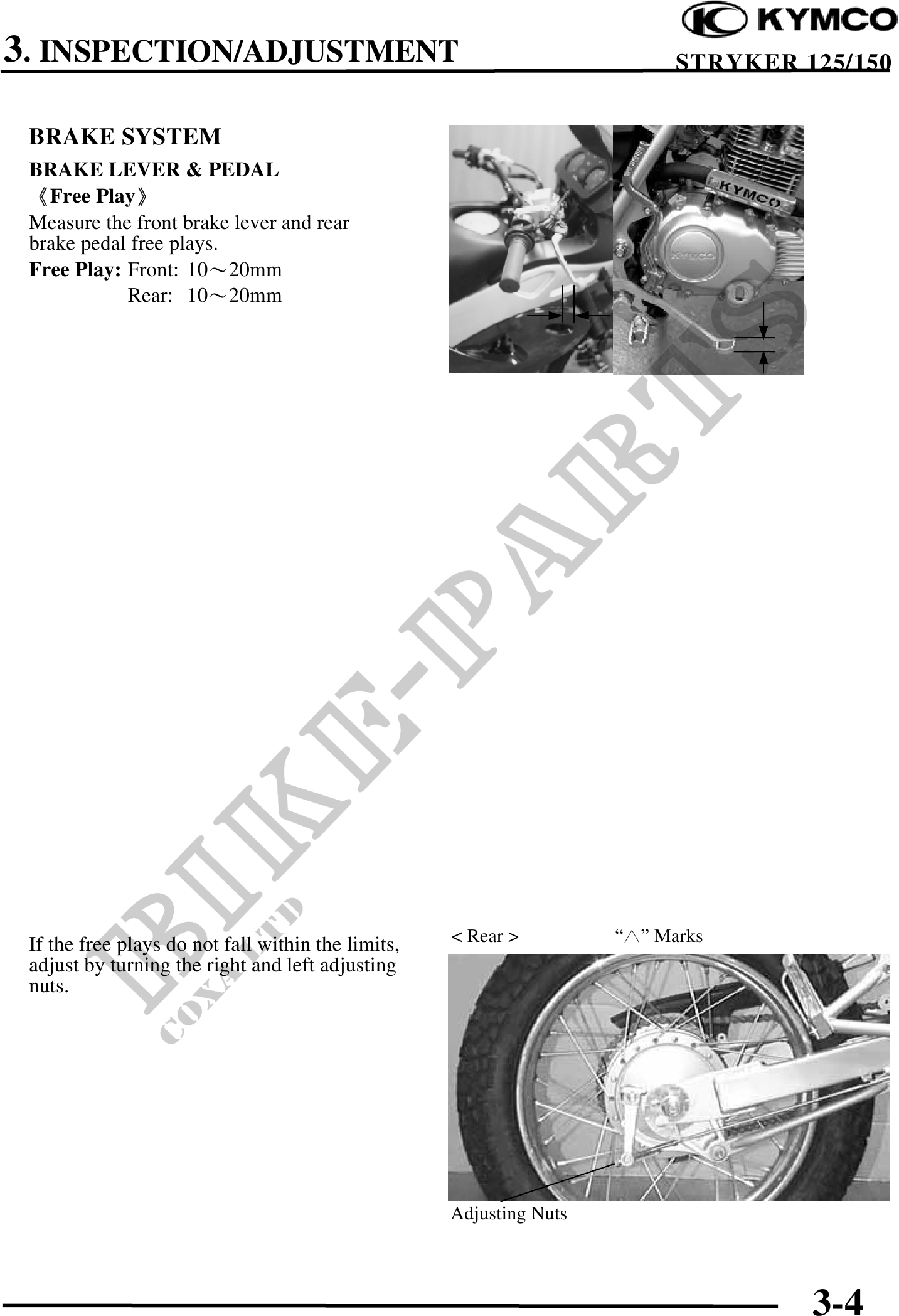

          3. INSPECTION/ADJUSTMENT                                                  STRYKER 125/150


 BRAKE SYSTEM
 BRAKE LEVER & PEDAL
 Free Play
 Measure the front brake lever and rear
 brake pedal free plays.
 Free Play: Front: 1020mm
            Rear: 1020mm




 If the free plays do not fall within the limits,   < Rear >         "" Marks
 adjust by turning the right and left adjusting
 nuts.




                                                    Adjusting Nuts




                                                                                   3-4
