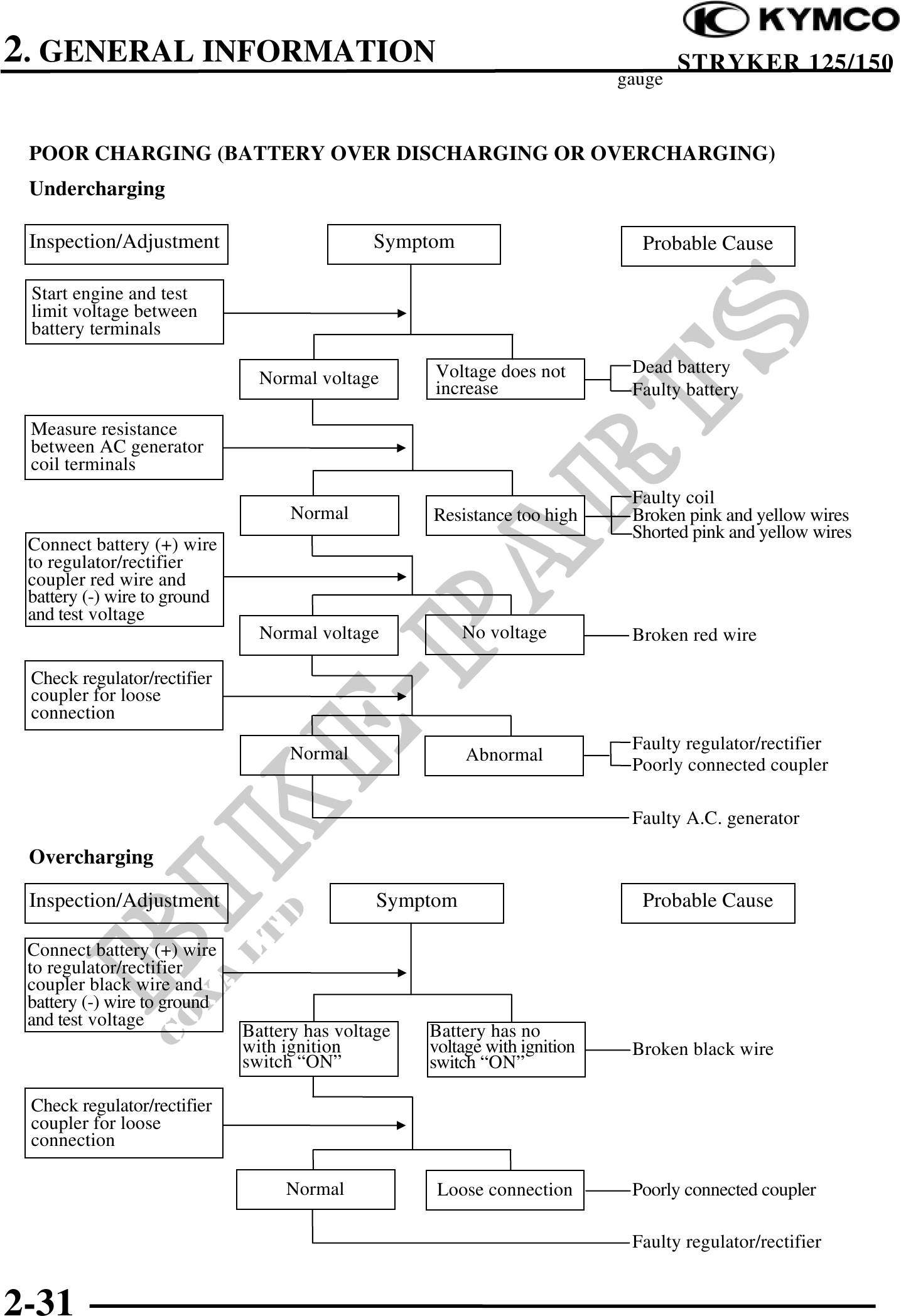

 POOR CHARGING (BATTERY OVER DISCHARGING OR OVERCHARGING)
 Undercharging

 Inspection/Adjustment                        Symptom                         Probable Cause

 Start engine and test
 limit voltage between
 battery terminals

                                                    Voltage does not         Dead battery
                                Normal voltage
                                                    increase                 Faulty battery

 Measure resistance
 between AC generator
 coil terminals
                                                                             Faulty coil
                                    Normal          Resistance too high      Broken pink and yellow wires
                                                                             Shorted pink and yellow wires
 Connect battery (+) wire
 to regulator/rectifier
 coupler red wire and
 battery (-) wire to ground
 and test voltage
                                Normal voltage           No voltage          Broken red wire

 Check regulator/rectifier
 coupler for loose
 connection
                                                                             Faulty regulator/rectifier
                                    Normal               Abnormal
                                                                             Poorly connected coupler

                                                                             Faulty A.C. generator

 Overcharging

 Inspection/Adjustment                         Symptom                        Probable Cause

 Connect battery (+) wire
 to regulator/rectifier
 coupler black wire and
 battery (-) wire to ground
 and test voltage
                              Battery has voltage   Battery has no
                              with ignition         voltage with ignition    Broken black wire
                              switch "ON"           switch "ON"

 Check regulator/rectifier
 coupler for loose
 connection

                                   Normal            Loose connection        Poorly connected coupler

                                                                             Faulty regulator/rectifier
