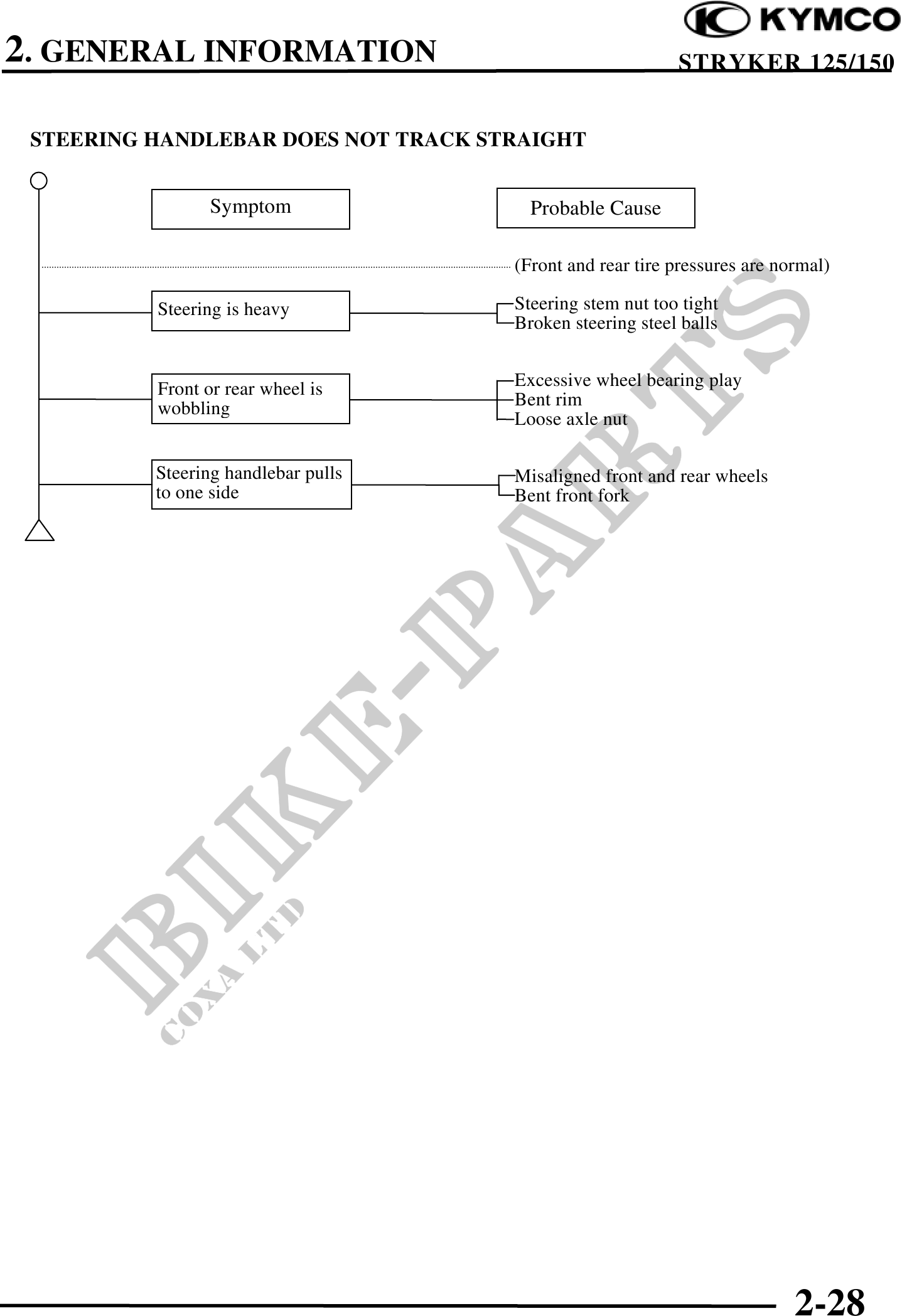

          2. GENERAL INFORMATION                                    STRYKER 125/150


 STEERING HANDLEBAR DOES NOT TRACK STRAIGHT


                Symptom                Probable Cause

                                     (Front and rear tire pressures are normal)

          Steering is heavy          Steering stem nut too tight
                                     Broken steering steel balls


          Front or rear wheel is     Excessive wheel bearing play
          wobbling                   Bent rim
                                     Loose axle nut

          Steering handlebar pulls   Misaligned front and rear wheels
          to one side                Bent front fork




                                                                          2-28
