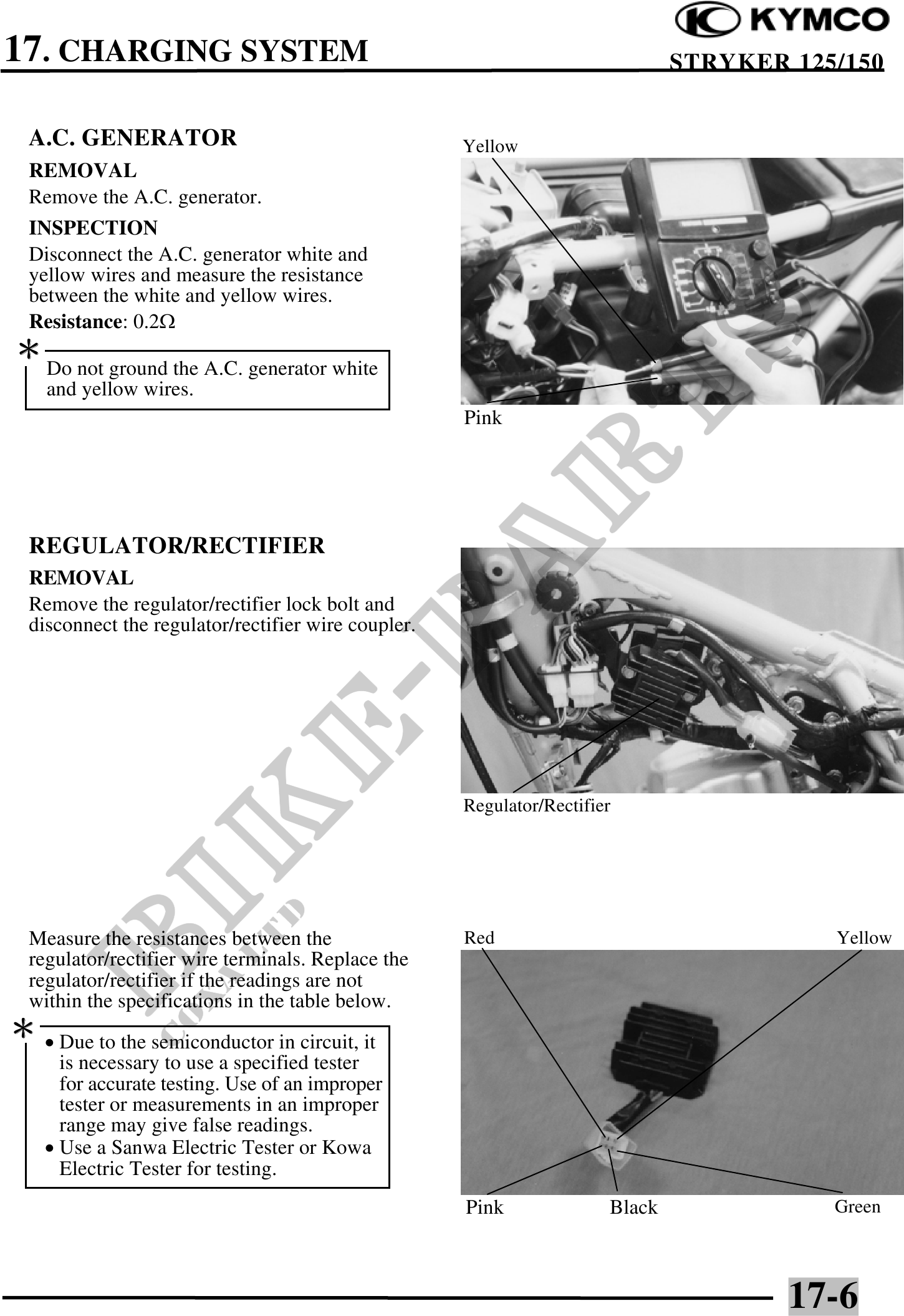

17. CHARGING SYSTEM STRYKER 125/150 A.C. GENERATOR Yellow REMOVAL Remove the A.C. generator. INSPECTION Disconnect the A.C. generator white and yellow wires and measure the resistance between the white and yellow wires. Resistance: 0.2 Do not ground the A.C. generator white and yellow wires. Pink REGULATOR/RECTIFIER REMOVAL Remove the regulator/rectifier lock bolt and disconnect the regulator/rectifier wire coupler. Regulator/Rectifier Measure the resistances between the Red Yellow regulator/rectifier wire terminals. Replace the regulator/rectifier if the readings are not within the specifications in the table below. · Due to the semiconductor in circuit, it is necessary to use a specified tester for accurate testing. Use of an improper tester or measurements in an improper range may give false readings. · Use a Sanwa Electric Tester or Kowa Electric Tester for testing. Pink Black Green 17-6
