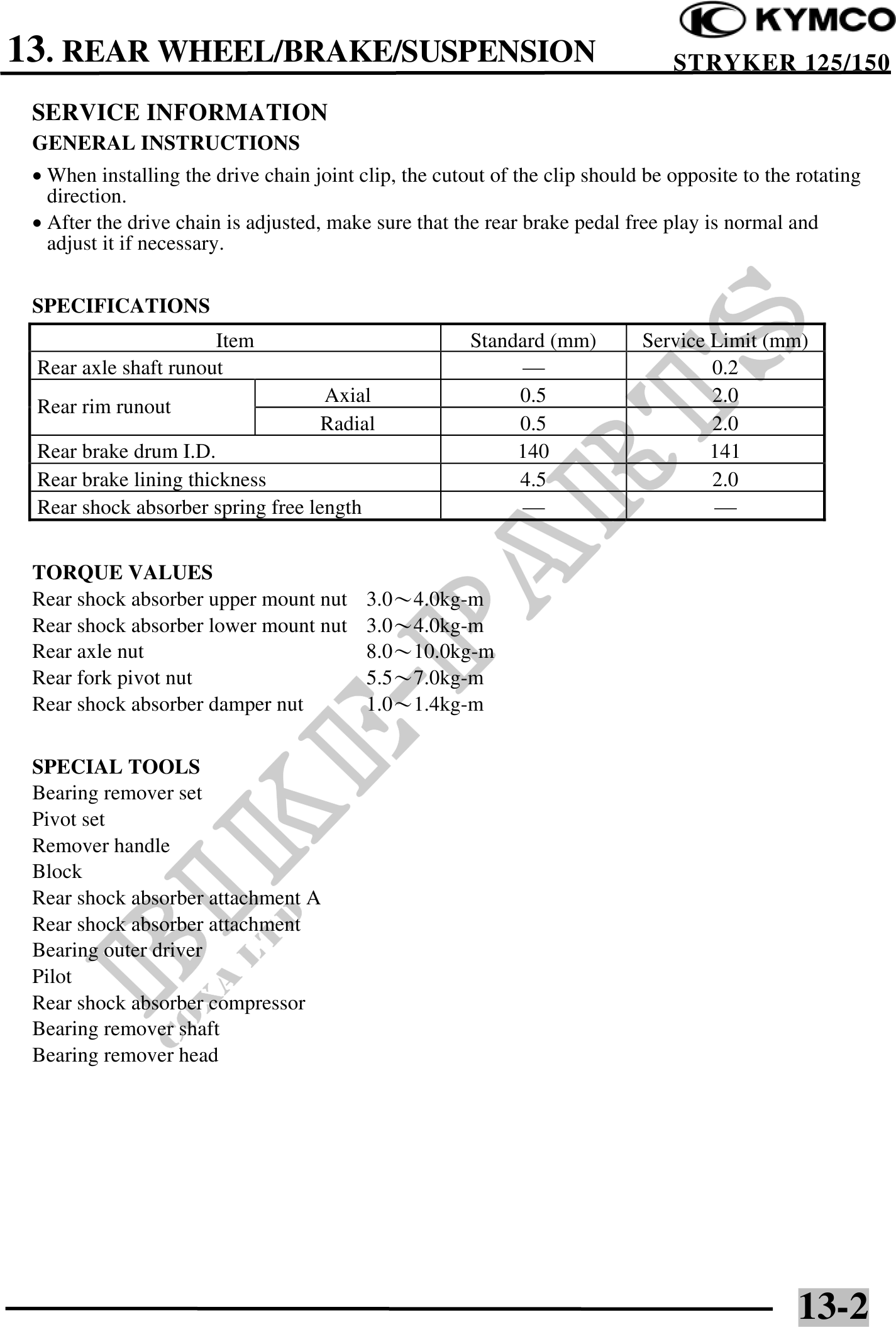

13. REAR WHEEL/BRAKE/SUSPENSION STRYKER 125/150 SERVICE INFORMATION GENERAL INSTRUCTIONS · When installing the drive chain joint clip, the cutout of the clip should be opposite to the rotating direction. · After the drive chain is adjusted, make sure that the rear brake pedal free play is normal and adjust it if necessary. SPECIFICATIONS Item Standard (mm) Service Limit (mm) Rear axle shaft runout 0.2 Axial 0.5 2.0 Rear rim runout Radial 0.5 2.0 Rear brake drum I.D. 140 141 Rear brake lining thickness 4.5 2.0 Rear shock absorber spring free length TORQUE VALUES Rear shock absorber upper mount nut 3.04.0kg-m Rear shock absorber lower mount nut 3.04.0kg-m Rear axle nut 8.010.0kg-m Rear fork pivot nut 5.57.0kg-m Rear shock absorber damper nut 1.01.4kg-m SPECIAL TOOLS Bearing remover set Pivot set Remover handle Block Rear shock absorber attachment A Rear shock absorber attachment Bearing outer driver Pilot Rear shock absorber compressor Bearing remover shaft Bearing remover head 13-2
