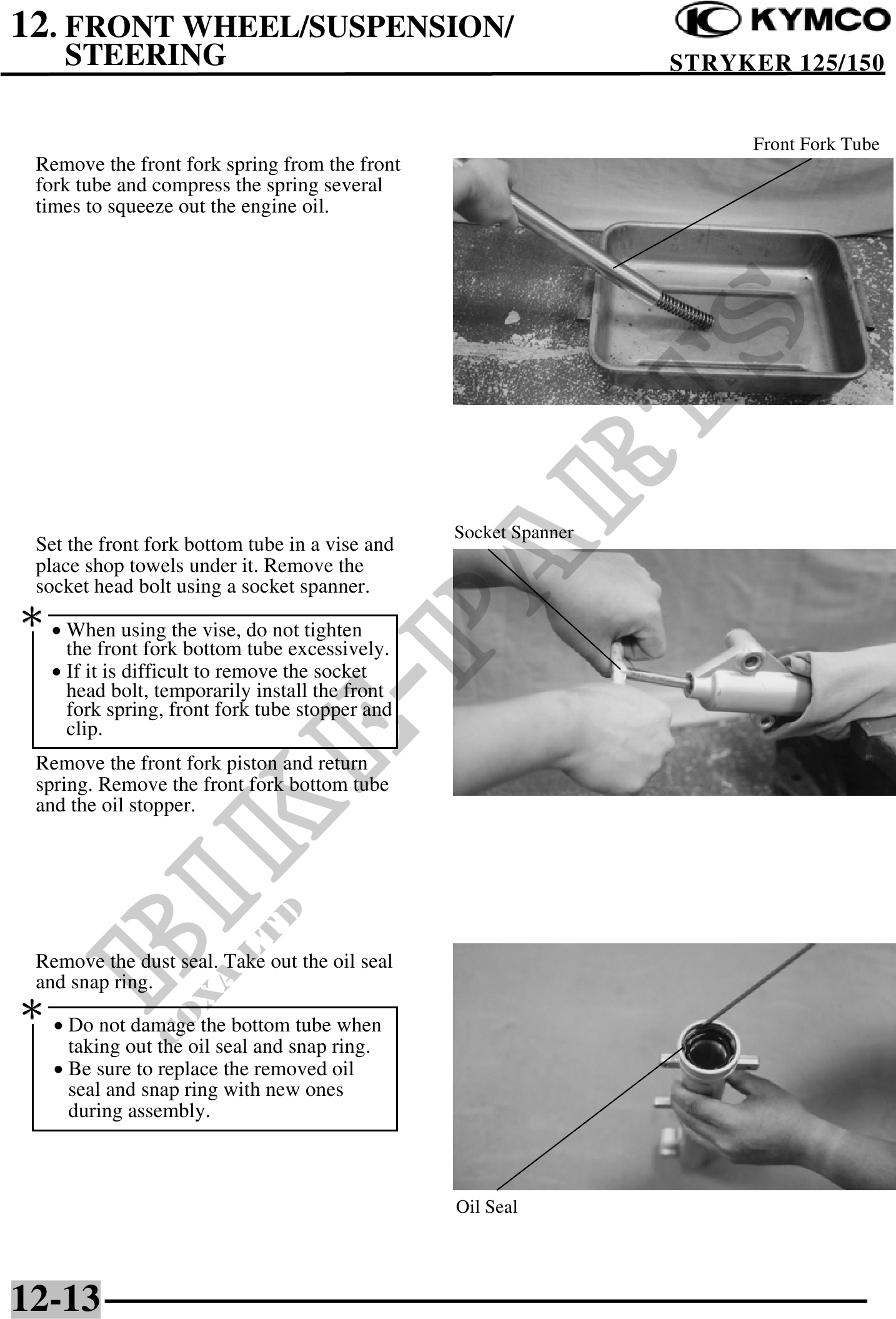

12. FRONT WHEEL/SUSPENSION/
STEERING STRYKER 125/150
Front Fork Tube
Remove the front fork spring from the front
fork tube and compress the spring several
times to squeeze out the engine oil.
Socket Spanner
Set the front fork bottom tube in a vise and
place shop towels under it. Remove the
socket head bolt using a socket spanner.
· When using the vise, do not tighten
the front fork bottom tube excessively.
· If it is difficult to remove the socket
head bolt, temporarily install the front
fork spring, front fork tube stopper and
clip.
Remove the front fork piston and return
spring. Remove the front fork bottom tube
and the oil stopper.
Remove the dust seal. Take out the oil seal
and snap ring.
· Do not damage the bottom tube when
taking out the oil seal and snap ring.
· Be sure to replace the removed oil
seal and snap ring with new ones
during assembly.
Oil Seal
12-13
