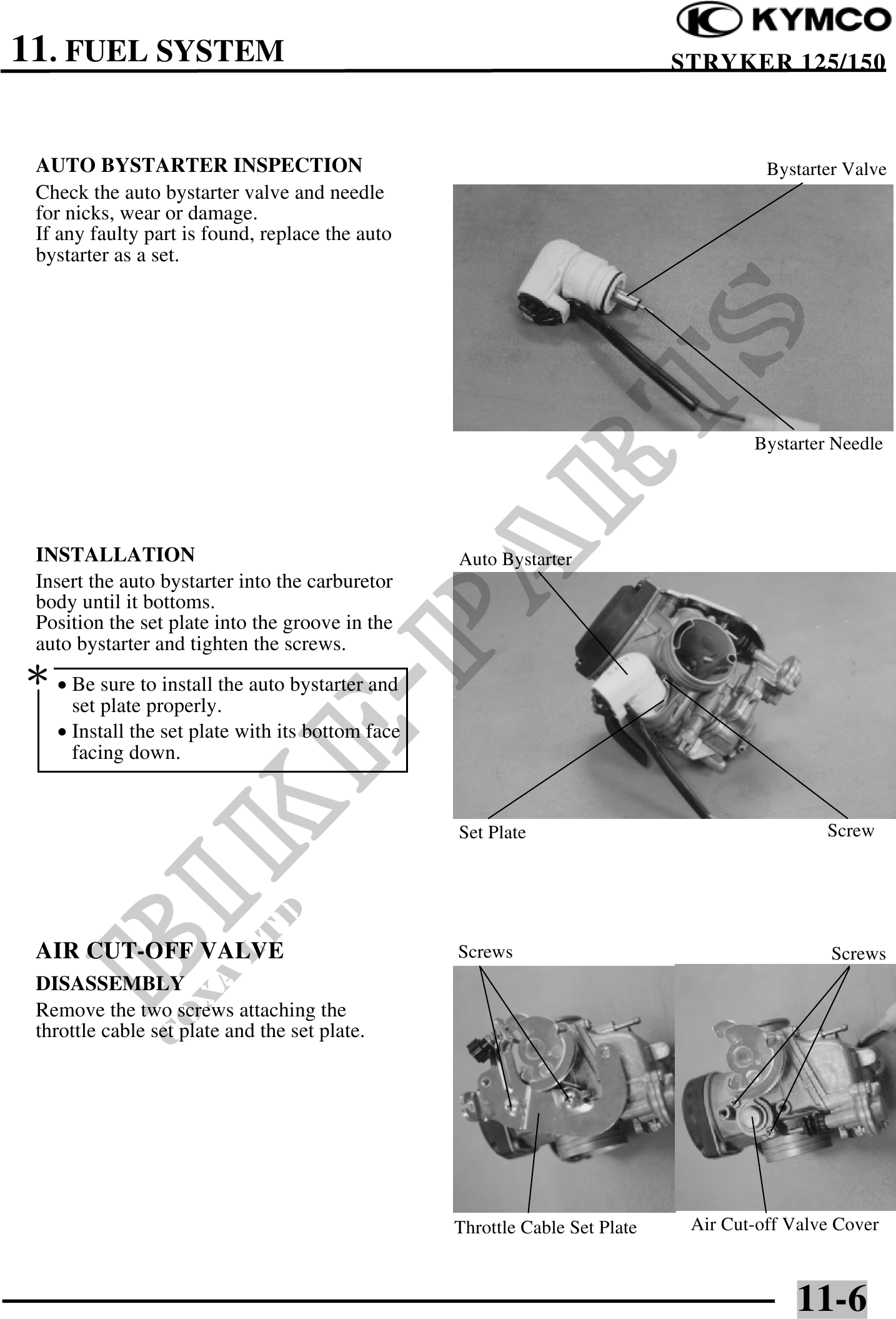

          11. FUEL SYSTEM                                                               STRYKER 125/150



 AUTO BYSTARTER INSPECTION                                                              Bystarter Valve
 Check the auto bystarter valve and needle
 for nicks, wear or damage.
 If any faulty part is found, replace the auto
 bystarter as a set.




                                                                                      Bystarter Needle




 INSTALLATION                                      Auto Bystarter
 Insert the auto bystarter into the carburetor
 body until it bottoms.
 Position the set plate into the groove in the
 auto bystarter and tighten the screws.
 · Be sure to install the auto bystarter and
      set plate properly.
    · Install the set plate with its bottom face
      facing down.


                                                   Set Plate                                   Screw




 AIR CUT-OFF VALVE                                 Screws                                       Screws
 DISASSEMBLY
 Remove the two screws attaching the
 throttle cable set plate and the set plate.




                                                   Throttle Cable Set Plate    Air Cut-off Valve Cover
