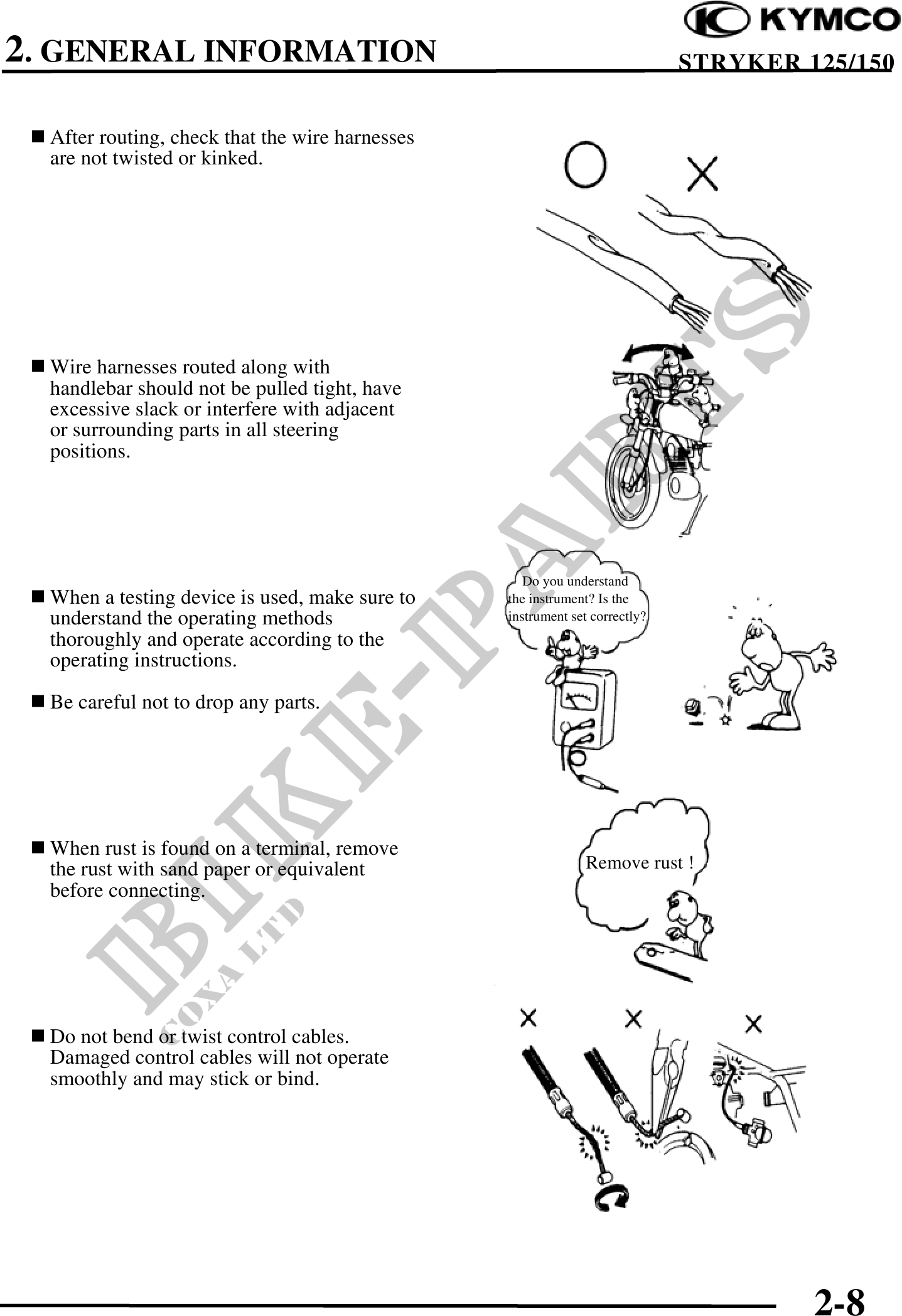

2. GENERAL INFORMATION STRYKER 125/150
After routing, check that the wire harnesses
are not twisted or kinked.
Wire harnesses routed along with
handlebar should not be pulled tight, have
excessive slack or interfere with adjacent
or surrounding parts in all steering
positions.
Do you understand
When a testing device is used, make sure to the instrument? Is the
understand the operating methods instrument set correctly?
thoroughly and operate according to the
operating instructions.
Be careful not to drop any parts.
When rust is found on a terminal, remove
the rust with sand paper or equivalent Remove rust !
before connecting.
Do not bend or twist control cables.
Damaged control cables will not operate
smoothly and may stick or bind.
2-8
