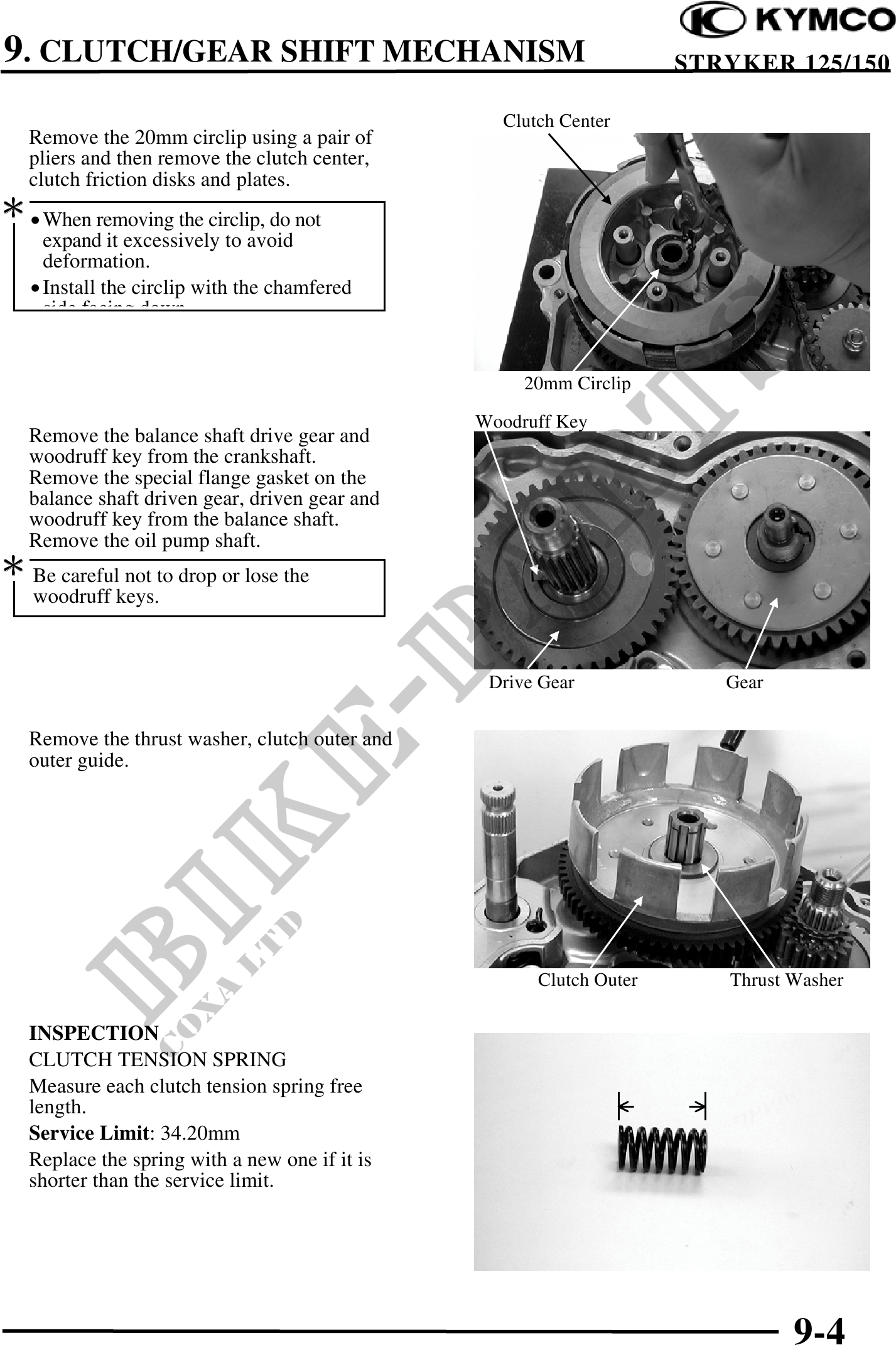

          9. CLUTCH/GEAR SHIFT MECHANISM                                       STRYKER 125/150

                                                  Clutch Center
   Remove the 20mm circlip using a pair of
   pliers and then remove the clutch center,
   clutch friction disks and plates.
 · When removing the circlip, do not
     expand it excessively to avoid
     deformation.
   · Install the circlip with the chamfered
     side facing down


                                                     20mm Circlip

                                                Woodruff Key
   Remove the balance shaft drive gear and
   woodruff key from the crankshaft.
   Remove the special flange gasket on the
   balance shaft driven gear, driven gear and
   woodruff key from the balance shaft.
   Remove the oil pump shaft.
 Be careful not to drop or lose the
   woodruff keys.



                                                 Drive Gear             Gear

   Remove the thrust washer, clutch outer and
   outer guide.




                                                      Clutch Outer      Thrust Washer

   INSPECTION
   CLUTCH TENSION SPRING
   Measure each clutch tension spring free
   length.
   Service Limit: 34.20mm
   Replace the spring with a new one if it is
   shorter than the service limit.




                                                                               9-4
