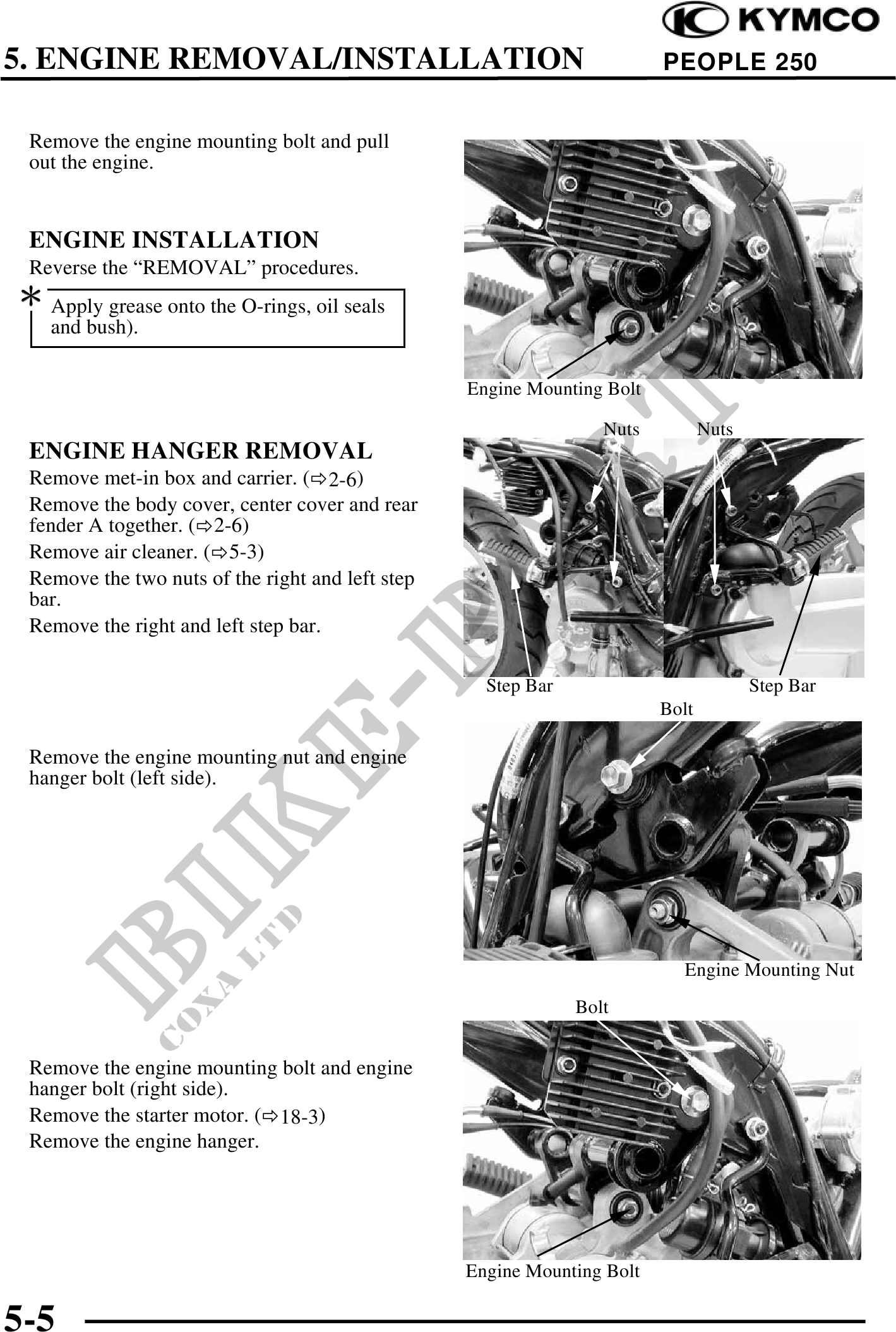

          5. ENGINE REMOVAL/INSTALLATION                                           PEOPLE 250


 Remove the engine mounting bolt and pull
 out the engine.


 ENGINE INSTALLATION
 Reverse the "REMOVAL" procedures.
 Apply grease onto the O-rings, oil seals
   and bush).

                                                  Engine Mounting Bolt

                                                                  Nuts          Nuts
 ENGINE HANGER REMOVAL
 Remove met-in box and carrier. ( 2-6)
 Remove the body cover, center cover and rear
 fender A together. ( 2-6)
 Remove air cleaner. ( 5-3)
 Remove the two nuts of the right and left step
 bar.
 Remove the right and left step bar.

                                                    Step Bar                           Step Bar
                                                                         Bolt

 Remove the engine mounting nut and engine
 hanger bolt (left side).




                                                                           Engine Mounting Nut
                                                               Bolt


 Remove the engine mounting bolt and engine
 hanger bolt (right side).
 Remove the starter motor. ( 18-3)
 Remove the engine hanger.




                                                  Engine Mounting Bolt

5-5
