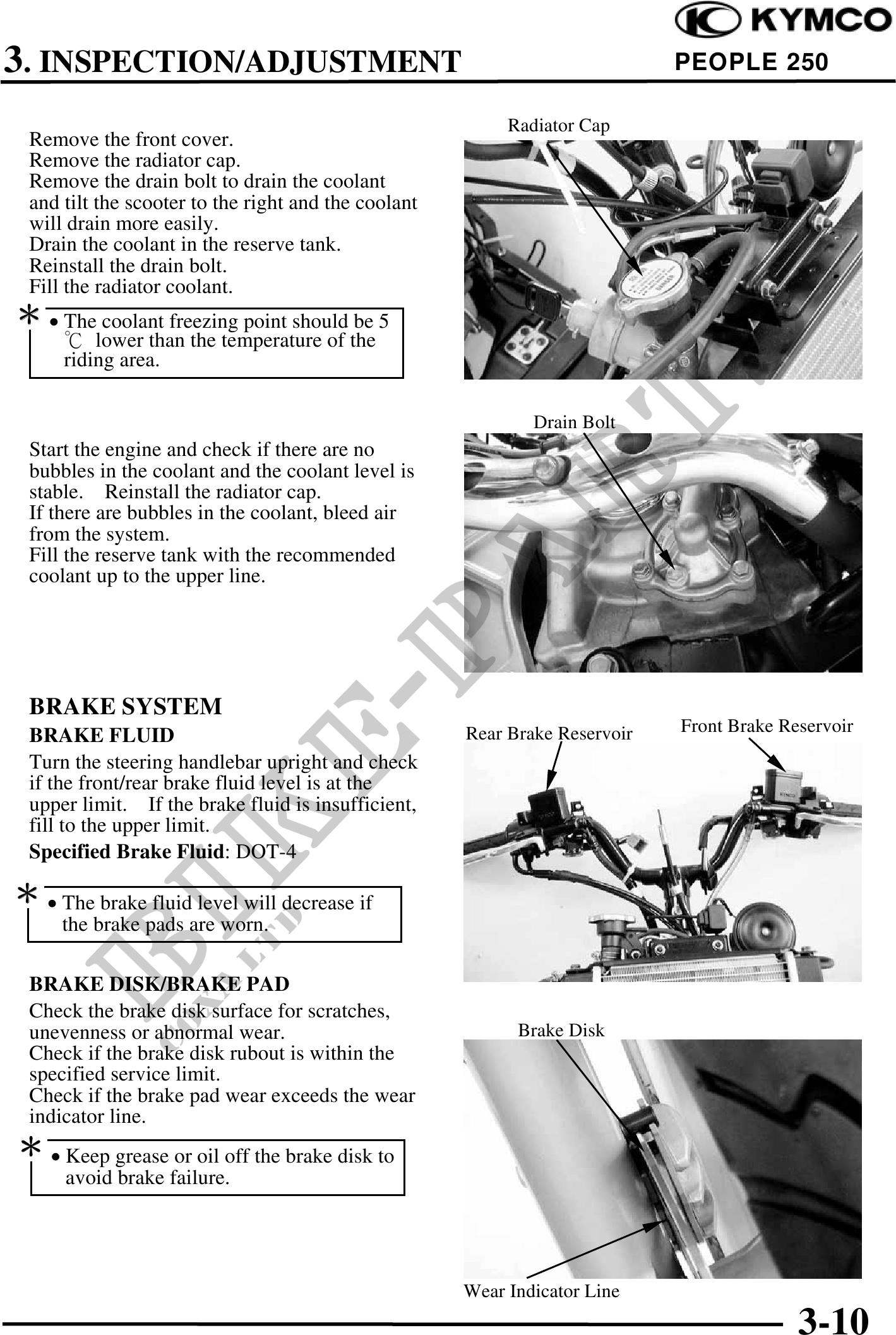

3. INSPECTION/ADJUSTMENT PEOPLE 250
Radiator Cap
Remove the front cover.
Remove the radiator cap.
Remove the drain bolt to drain the coolant
and tilt the scooter to the right and the coolant
will drain more easily.
Drain the coolant in the reserve tank.
Reinstall the drain bolt.
Fill the radiator coolant.
· The coolant freezing point should be 5
lower than the temperature of the
riding area.
Drain Bolt
Start the engine and check if there are no
bubbles in the coolant and the coolant level is
stable. Reinstall the radiator cap.
If there are bubbles in the coolant, bleed air
from the system.
Fill the reserve tank with the recommended
coolant up to the upper line.
BRAKE SYSTEM
Rear Brake Reservoir Front Brake Reservoir
BRAKE FLUID
Turn the steering handlebar upright and check
if the front/rear brake fluid level is at the
upper limit. If the brake fluid is insufficient,
fill to the upper limit.
Specified Brake Fluid: DOT-4
· The brake fluid level will decrease if
the brake pads are worn.
BRAKE DISK/BRAKE PAD
Check the brake disk surface for scratches,
unevenness or abnormal wear. Brake Disk
Check if the brake disk rubout is within the
specified service limit.
Check if the brake pad wear exceeds the wear
indicator line.
· Keep grease or oil off the brake disk to
avoid brake failure.
Wear Indicator Line
3-10
