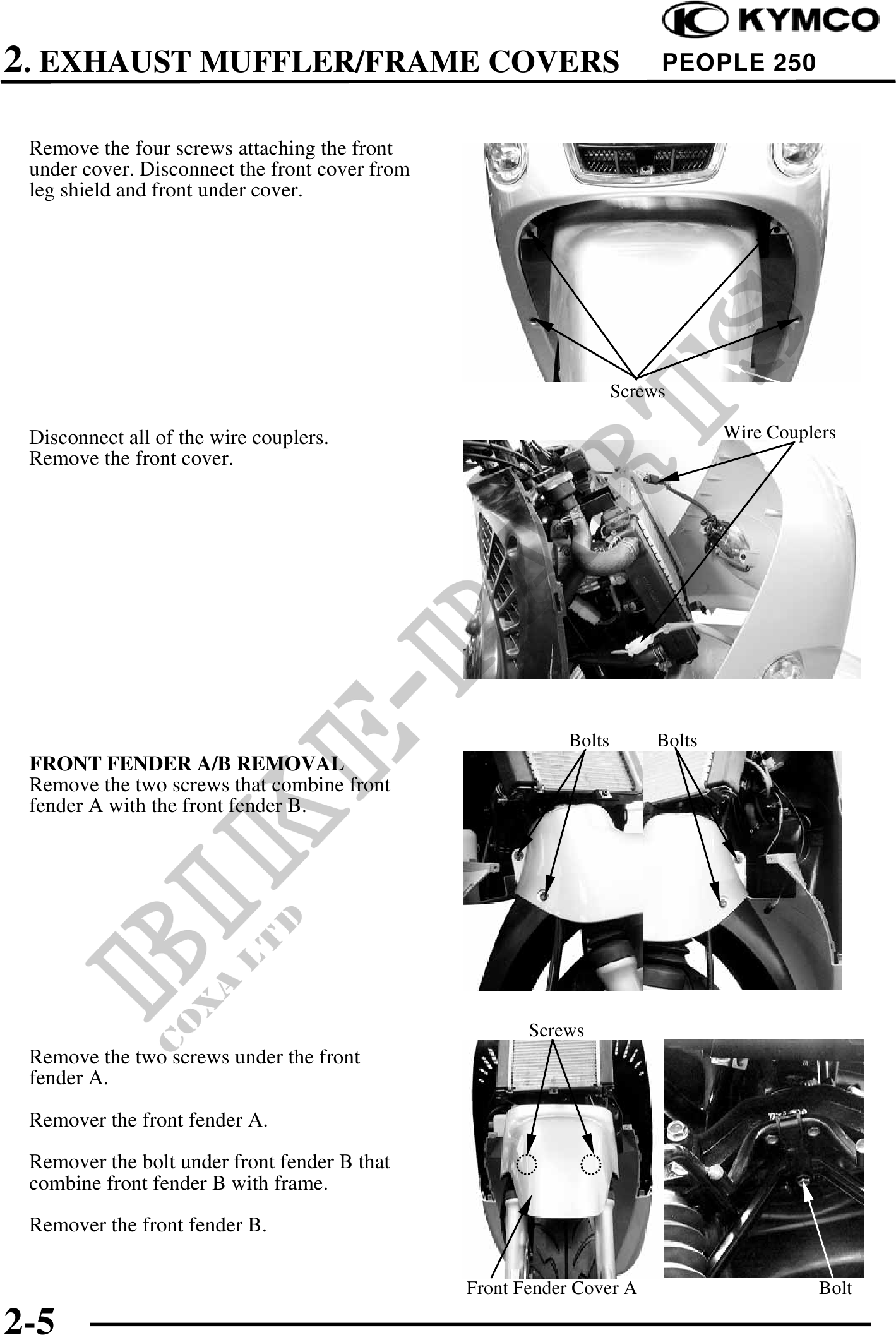

2. EXHAUST MUFFLER/FRAME COVERS PEOPLE 250
Remove the four screws attaching the front
under cover. Disconnect the front cover from
leg shield and front under cover.
Screws
Disconnect all of the wire couplers. Wire Couplers
Remove the front cover.
Bolts Bolts
FRONT FENDER A/B REMOVAL
Remove the two screws that combine front
fender A with the front fender B.
Screws
Remove the two screws under the front
fender A.
Remover the front fender A.
Remover the bolt under front fender B that
combine front fender B with frame.
Remover the front fender B.
Front Fender Cover A Bolt
2-5
