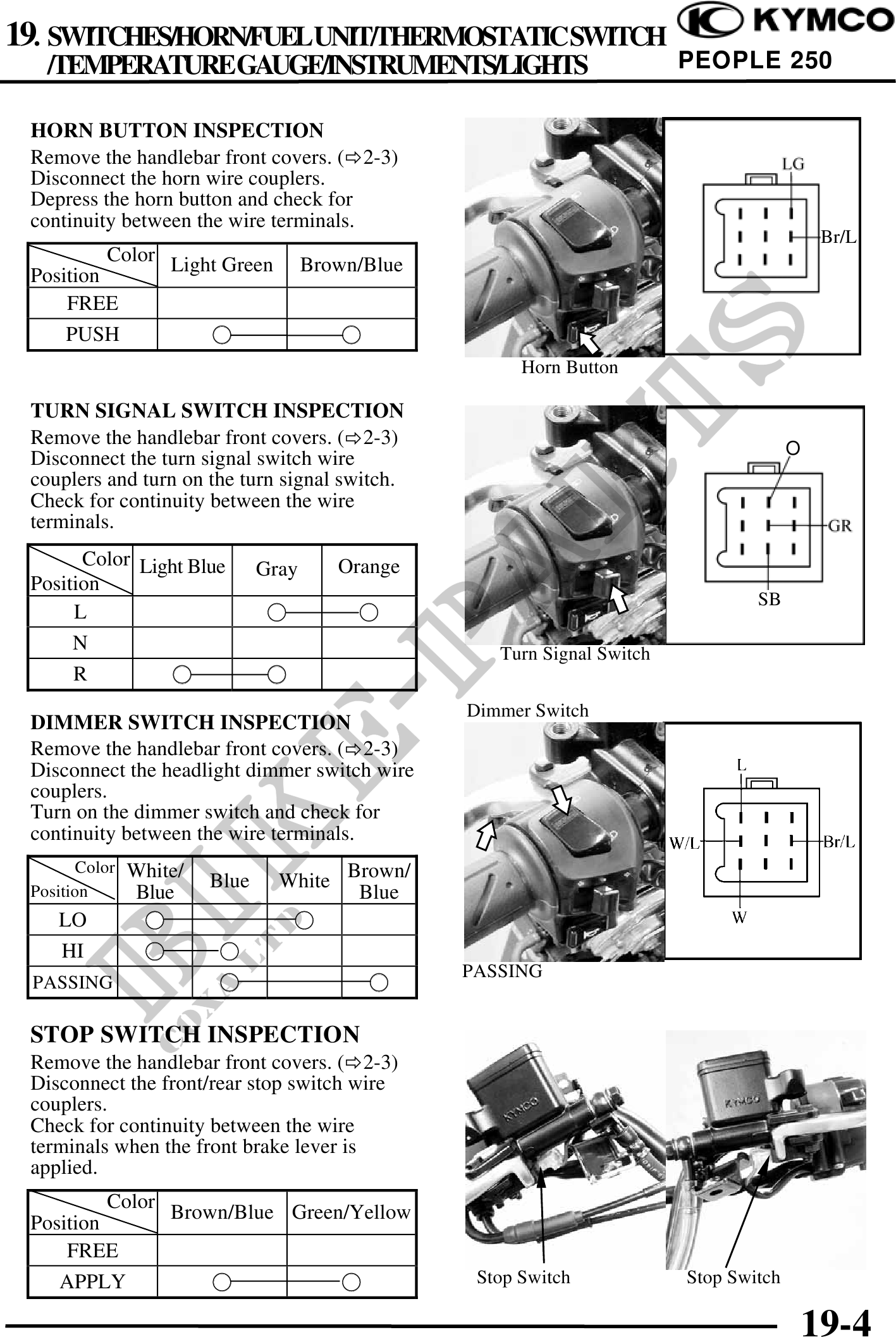

          19. SWITCHES/HORN/FUELUNIT/THERMOSTATICSWITCH
   /TEMPERATUREGAUGE/INSTRUMENTS/LIGHTS                                  PEOPLE 250

 HORN BUTTON INSPECTION
 Remove the handlebar front covers. ( 2-3)
 Disconnect the horn wire couplers.
 Depress the horn button and check for
 continuity between the wire terminals.
                                                                                            Br/L
          Color Light Green         Brown/Blue
 Position
     FREE
     PUSH
                                                       Horn Button

 TURN SIGNAL SWITCH INSPECTION
 Remove the handlebar front covers. ( 2-3)
                                                                                       O
 Disconnect the turn signal switch wire
 couplers and turn on the turn signal switch.
 Check for continuity between the wire
 terminals.
       Color Light Blue      Gray      Orange
 Position
                                                                                 SB
      L
      N                                             Turn Signal Switch
      R
                                                 Dimmer Switch
 DIMMER SWITCH INSPECTION
 Remove the handlebar front covers. ( 2-3)
 Disconnect the headlight dimmer switch wire
 couplers.
 Turn on the dimmer switch and check for
 continuity between the wire terminals.
       Color White/
                      Blue     White Brown/
 Position    Blue                     Blue
    LO
    HI
                                                 PASSING
 PASSING

 STOP SWITCH INSPECTION
 Remove the handlebar front covers. ( 2-3)
 Disconnect the front/rear stop switch wire
 couplers.
 Check for continuity between the wire
 terminals when the front brake lever is
 applied.
          Color Brown/Blue Green/Yellow
 Position
     FREE
    APPLY                                         Stop Switch            Stop Switch

                                                                                           19-4
