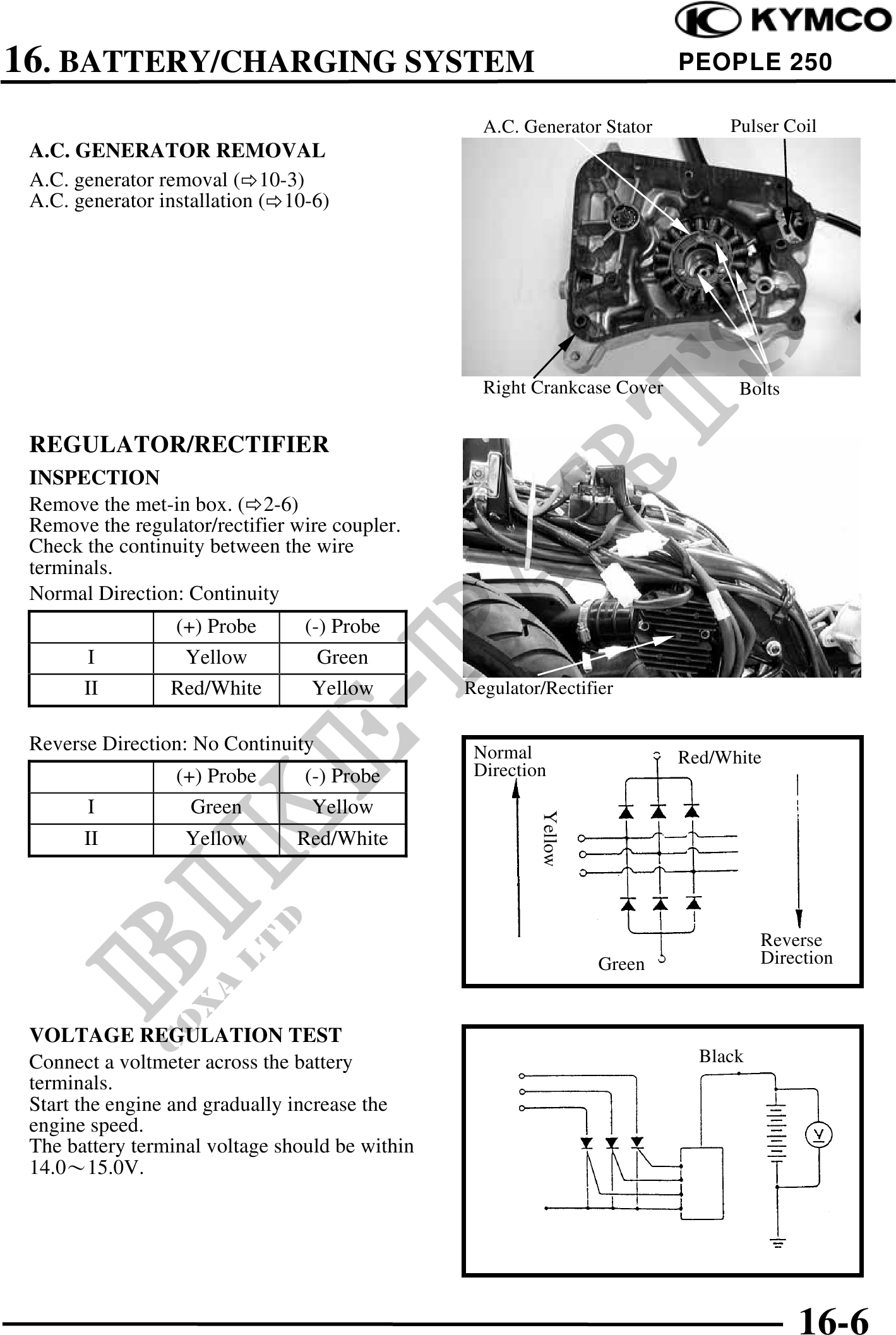

          16. BATTERY/CHARGING SYSTEM                                                   PEOPLE 250

                                                   A.C. Generator Stator            Pulser Coil
 A.C. GENERATOR REMOVAL
 A.C. generator removal ( 10-3)
 A.C. generator installation ( 10-6)




                                                   Right Crankcase Cover                Bolts

 REGULATOR/RECTIFIER
 INSPECTION
 Remove the met-in box. ( 2-6)
 Remove the regulator/rectifier wire coupler.
 Check the continuity between the wire
 terminals.
 Normal Direction: Continuity
                 (+) Probe       (-) Probe
        I         Yellow           Green
       II        Red/White        Yellow         Regulator/Rectifier

 Reverse Direction: No Continuity                 Normal                      Red/White
                  (+) Probe      (-) Probe        Direction
        I           Green         Yellow
                                                          Yellow




       II          Yellow       Red/White



                                                                                          Reverse
                                                                   Green                  Direction



 VOLTAGE REGULATION TEST
 Connect a voltmeter across the battery                                         Black
 terminals.
 Start the engine and gradually increase the
 engine speed.
 The battery terminal voltage should be within
 14.015.0V.


                                                                       Voltage Sensor



                                                                                                16-6
