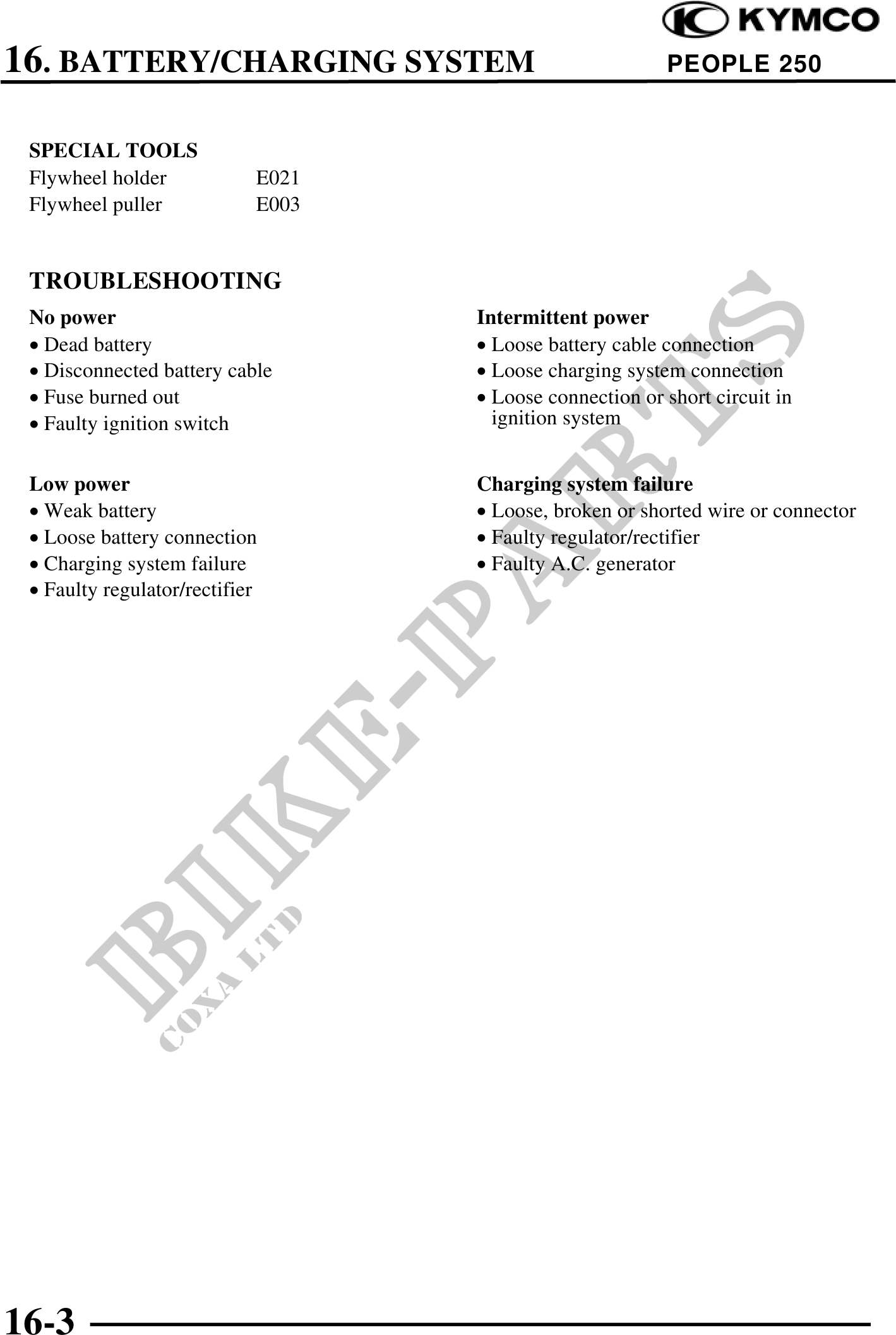

          16. BATTERY/CHARGING SYSTEM                              PEOPLE 250


 SPECIAL TOOLS
 Flywheel holder            E021
 Flywheel puller            E003


 TROUBLESHOOTING
 No power                          Intermittent power
 · Dead battery                    · Loose battery cable connection
 · Disconnected battery cable      · Loose charging system connection
 · Fuse burned out                 · Loose connection or short circuit in
 · Faulty ignition switch            ignition system


 Low power                         Charging system failure
 · Weak battery                    · Loose, broken or shorted wire or connector
 · Loose battery connection        · Faulty regulator/rectifier
 · Charging system failure         · Faulty A.C. generator
 · Faulty regulator/rectifier




16-3
