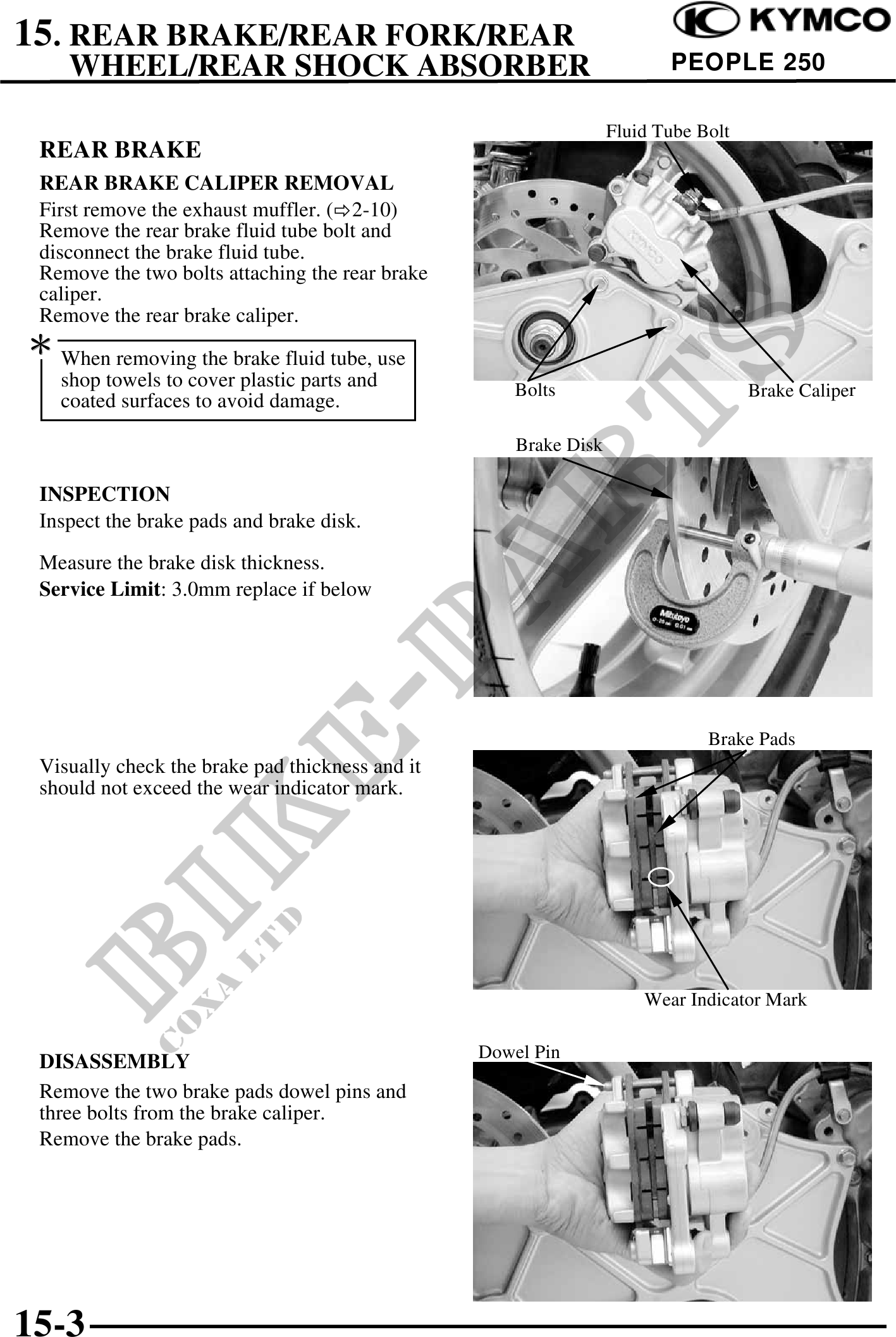

          15. REAR BRAKE/REAR FORK/REAR
    WHEEL/REAR SHOCK ABSORBER                                            PEOPLE 250

                                                                  Fluid Tube Bolt
 REAR BRAKE
 REAR BRAKE CALIPER REMOVAL
 First remove the exhaust muffler. ( 2-10)
 Remove the rear brake fluid tube bolt and
 disconnect the brake fluid tube.
 Remove the two bolts attaching the rear brake
 caliper.
 Remove the rear brake caliper.
 When removing the brake fluid tube, use
   shop towels to cover plastic parts and            Bolts                          Brake Caliper
   coated surfaces to avoid damage.

                                                     Brake Disk

 INSPECTION
 Inspect the brake pads and brake disk.

 Measure the brake disk thickness.
 Service Limit: 3.0mm replace if below




                                                                              Brake Pads
 Visually check the brake pad thickness and it
 should not exceed the wear indicator mark.




                                                                      Wear Indicator Mark

                                                 Dowel Pin
 DISASSEMBLY
 Remove the two brake pads dowel pins and
 three bolts from the brake caliper.
 Remove the brake pads.




15-3
