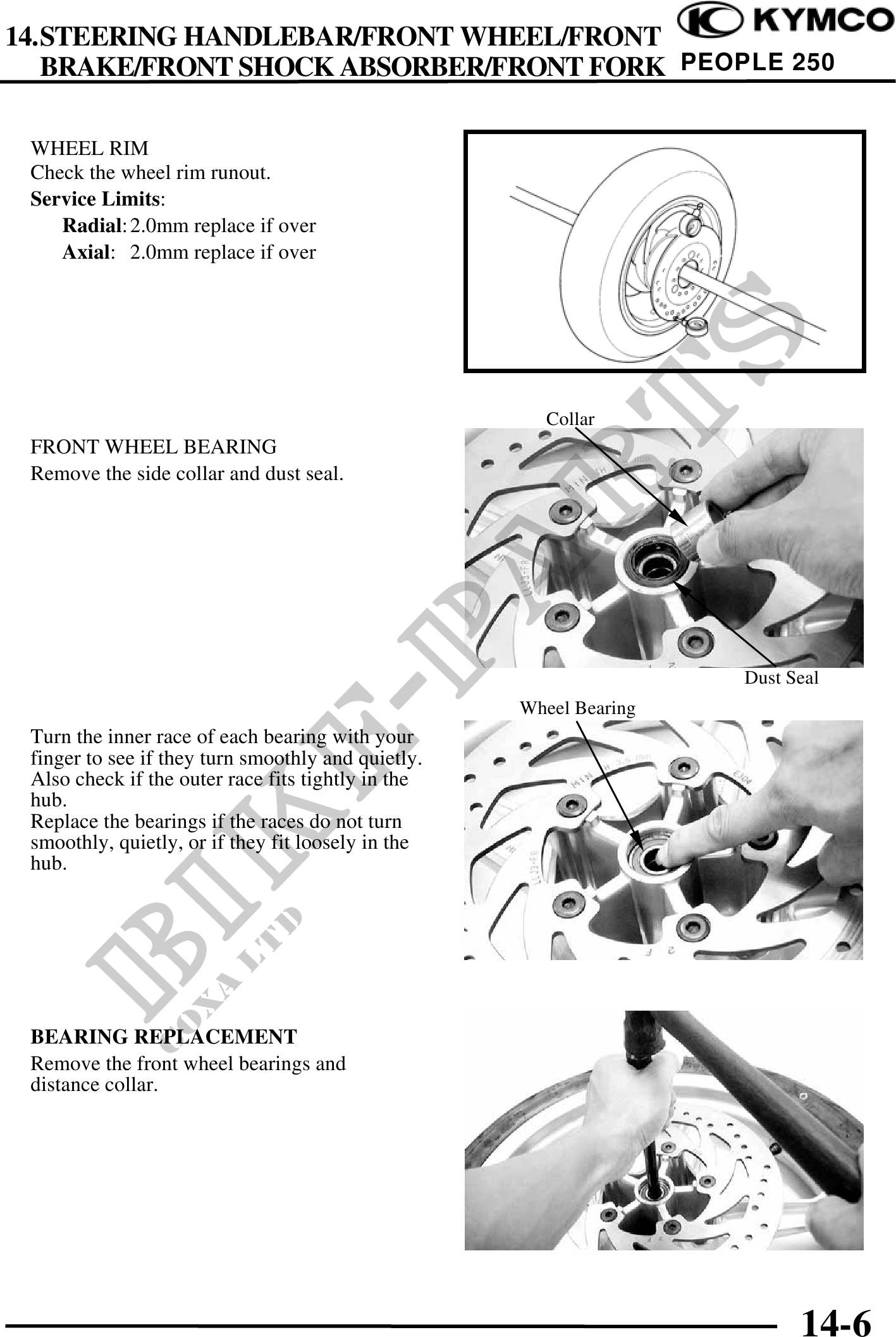

          14.STEERING HANDLEBAR/FRONT WHEEL/FRONT
   BRAKE/FRONT SHOCK ABSORBER/FRONT FORK PEOPLE 250

 WHEEL RIM
 Check the wheel rim runout.
 Service Limits:
    Radial: 2.0mm replace if over
    Axial: 2.0mm replace if over




                                                      Collar
 FRONT WHEEL BEARING
 Remove the side collar and dust seal.




                                                                    Dust Seal
                                                    Wheel Bearing
 Turn the inner race of each bearing with your
 finger to see if they turn smoothly and quietly.
 Also check if the outer race fits tightly in the
 hub.
 Replace the bearings if the races do not turn
 smoothly, quietly, or if they fit loosely in the
 hub.




 BEARING REPLACEMENT
 Remove the front wheel bearings and
 distance collar.




                                                                          14-6
