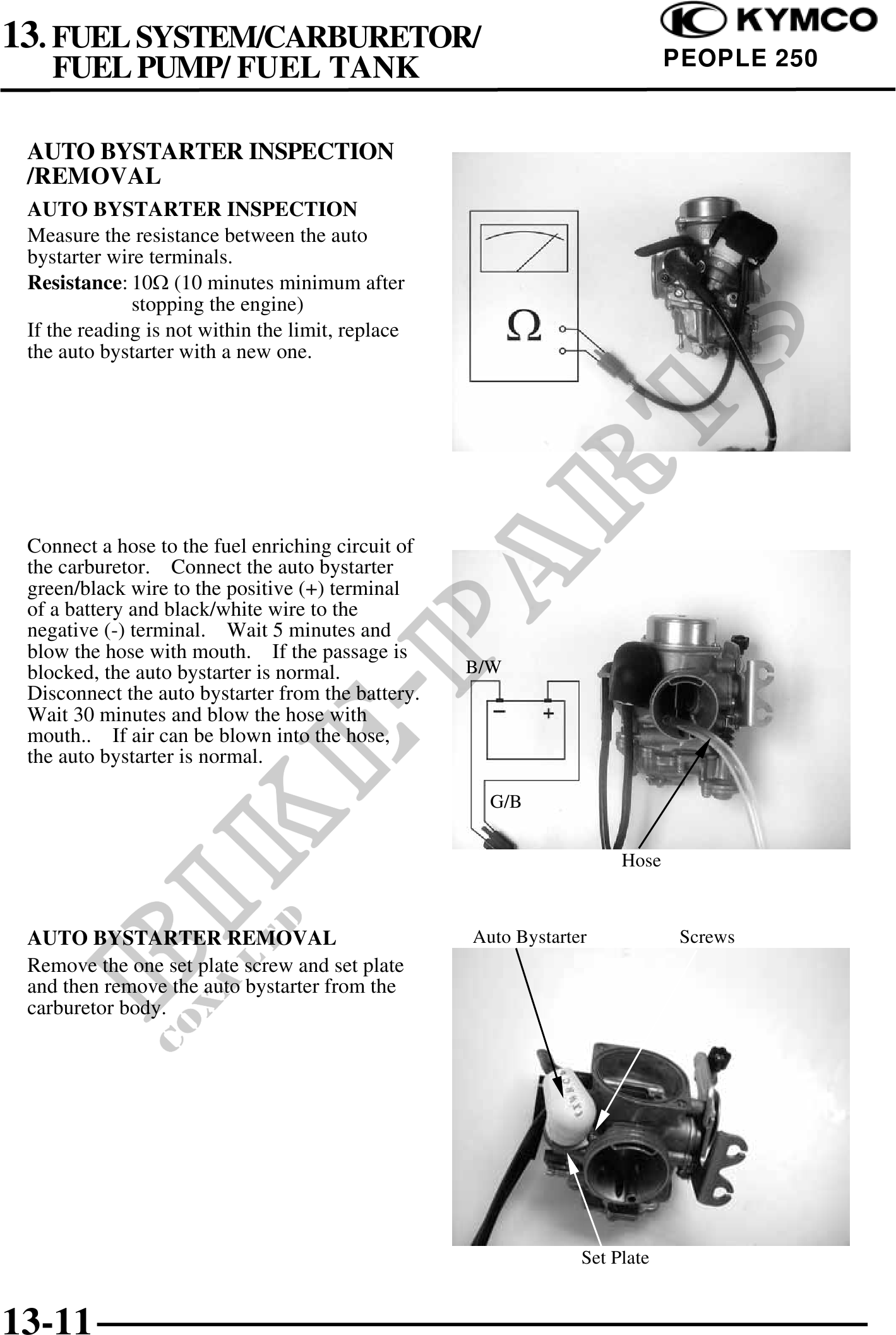

          13. FUEL SYSTEM/CARBURETOR/
    FUEL PUMP/ FUEL TANK                                                    PEOPLE 250


 AUTO BYSTARTER INSPECTION
 /REMOVAL
 AUTO BYSTARTER INSPECTION
 Measure the resistance between the auto
 bystarter wire terminals.
 Resistance: 10 (10 minutes minimum after
              stopping the engine)
 If the reading is not within the limit, replace
 the auto bystarter with a new one.




 Connect a hose to the fuel enriching circuit of
 the carburetor. Connect the auto bystarter
 green/black wire to the positive (+) terminal
 of a battery and black/white wire to the
 negative (-) terminal. Wait 5 minutes and
 blow the hose with mouth. If the passage is
 blocked, the auto bystarter is normal.            B/W
 Disconnect the auto bystarter from the battery.
 Wait 30 minutes and blow the hose with
 mouth.. If air can be blown into the hose,
 the auto bystarter is normal.

                                                     G/B


                                                                     Hose



 AUTO BYSTARTER REMOVAL                            Auto Bystarter            Screws
 Remove the one set plate screw and set plate
 and then remove the auto bystarter from the
 carburetor body.




                                                                Set Plate


13-11
