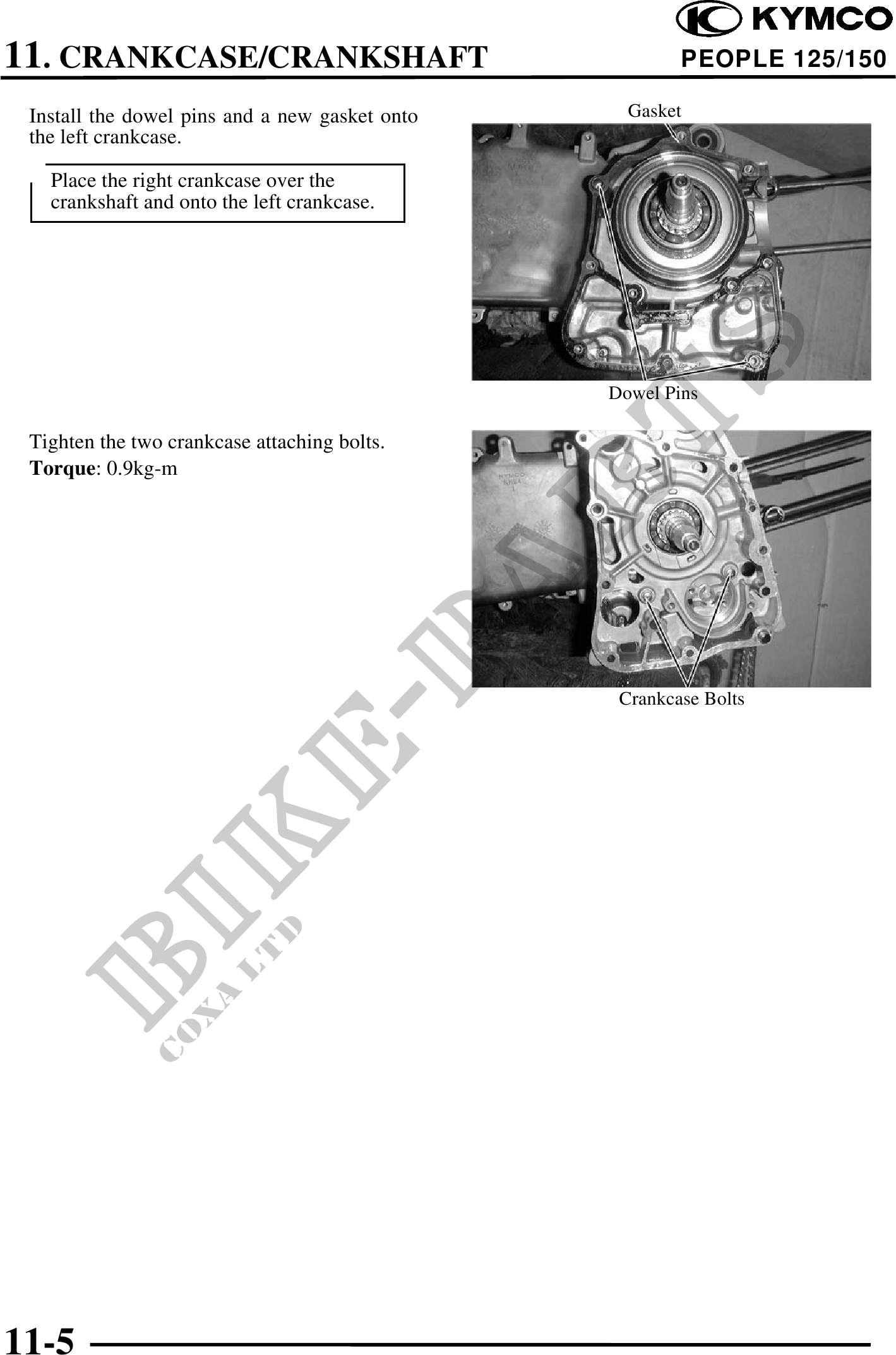

          11. CRANKCASE/CRANKSHAFT                                PEOPLE 125/150

 Install the dowel pins and a new gasket onto     Gasket
 the left crankcase.

   Place the right crankcase over the
   crankshaft and onto the left crankcase.




                                                Dowel Pins

 Tighten the two crankcase attaching bolts.
 Torque: 0.9kg-m




                                                 Crankcase Bolts




11-5
