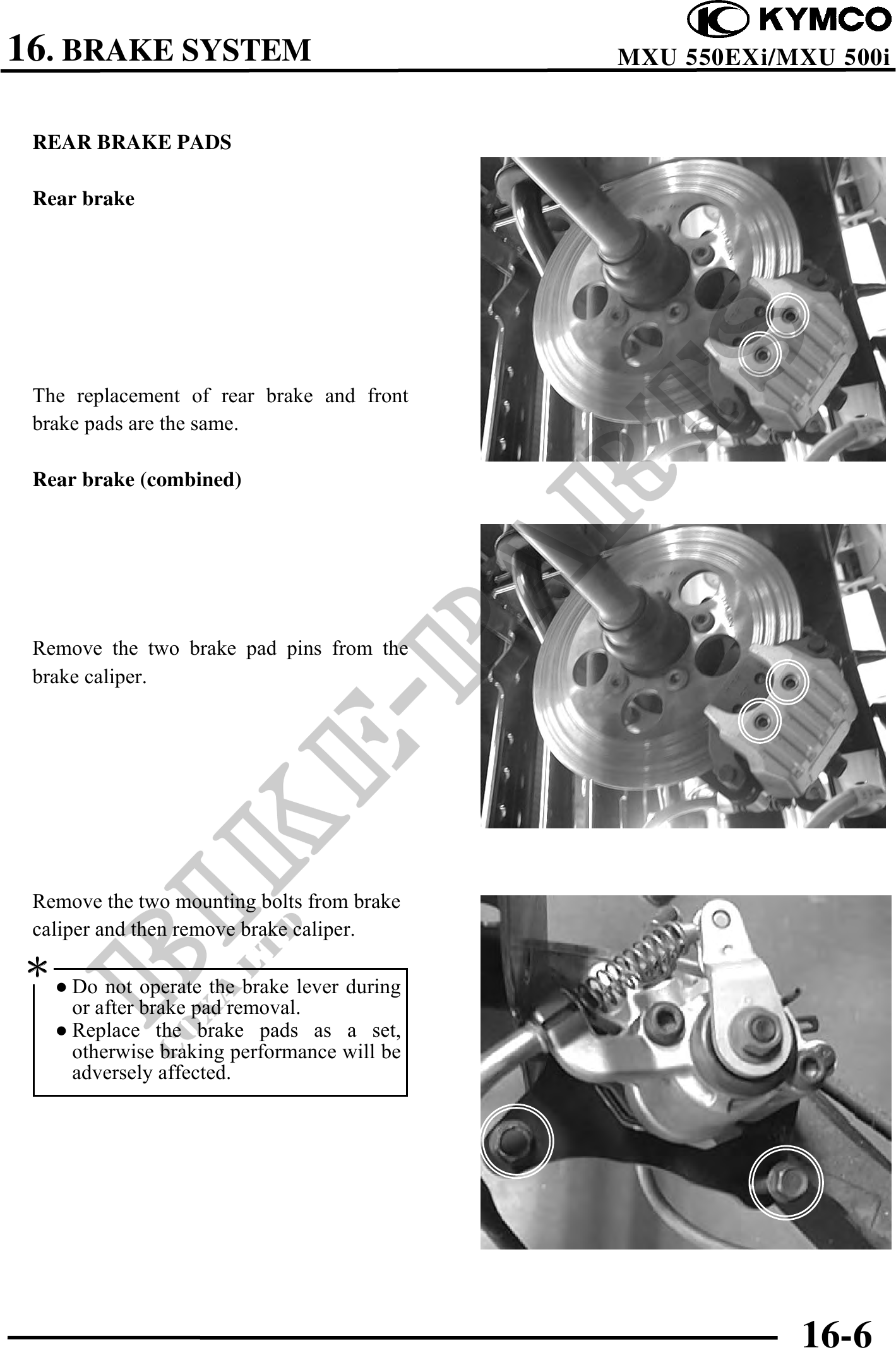

          16. BRAKE SYSTEM                            MXU 550EXi/MXU 500i


 REAR BRAKE PADS

 Rear brake




 The replacement of rear brake and front
 brake pads are the same.

 Rear brake (combined)




 Remove the two brake pad pins from the
 brake caliper.




 Remove the two mounting bolts from brake
 caliper and then remove brake caliper.

    Do not operate the brake lever during
    or after brake pad removal.
    Replace the brake pads as a set,
    otherwise braking performance will be
    adversely affected.




                                                        16-6
