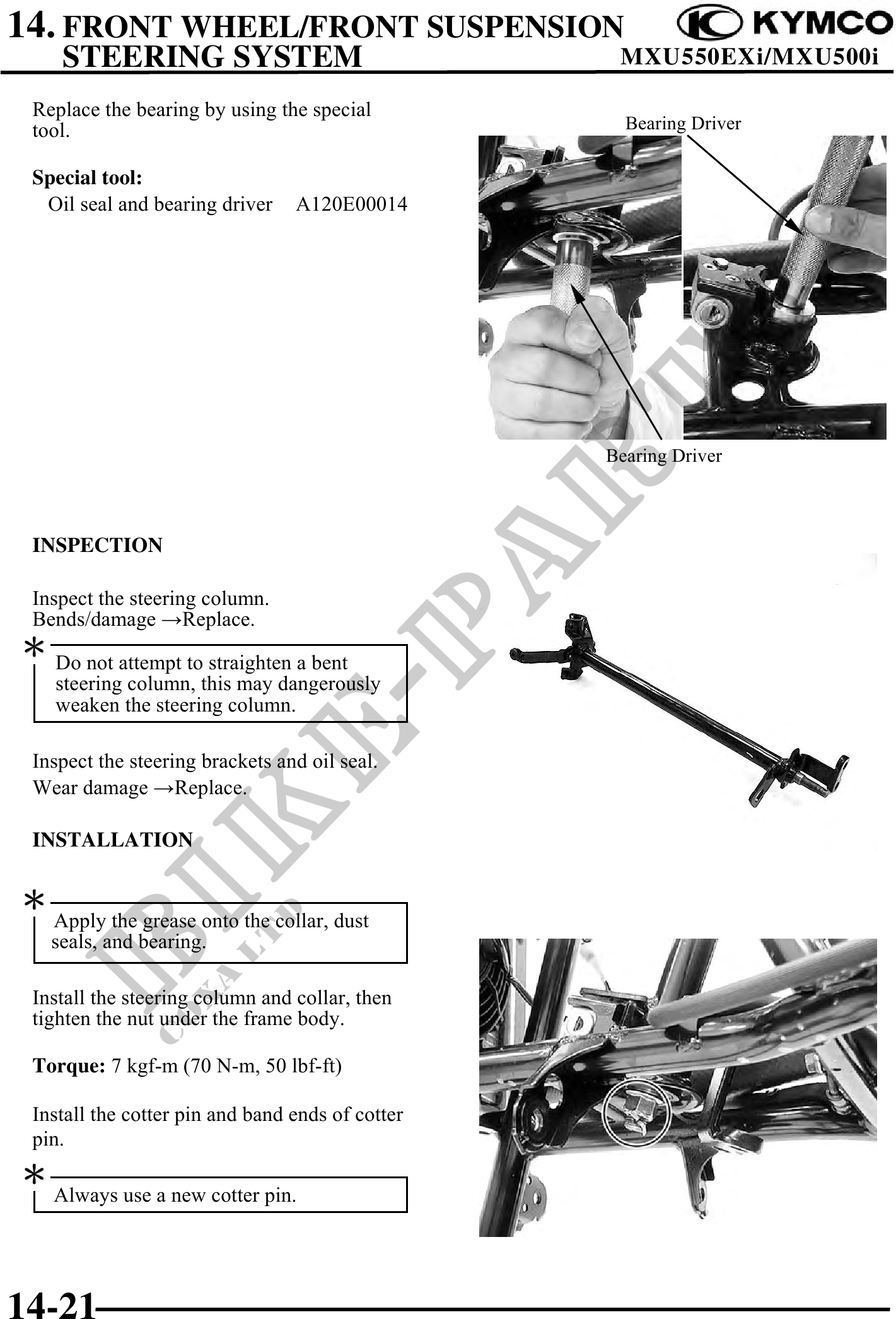

14. FRONT WHEEL/FRONT SUSPENSION
STEERING SYSTEM MXU550EXi/MXU500i
Replace the bearing by using the special
tool. Bearing Driver
Special tool:
Oil seal and bearing driver A120E00014
Bearing Driver
INSPECTION
Inspect the steering column.
Bends/damage Replace.
Do not attempt to straighten a bent
steering column, this may dangerously
weaken the steering column.
Inspect the steering brackets and oil seal.
Wear damage Replace.
INSTALLATION
Apply the grease onto the collar, dust
seals, and bearing.
Install the steering column and collar, then
tighten the nut under the frame body.
Torque: 7 kgf-m (70 N-m, 50 lbf-ft)
Install the cotter pin and band ends of cotter
pin.
Always use a new cotter pin.
14-21
