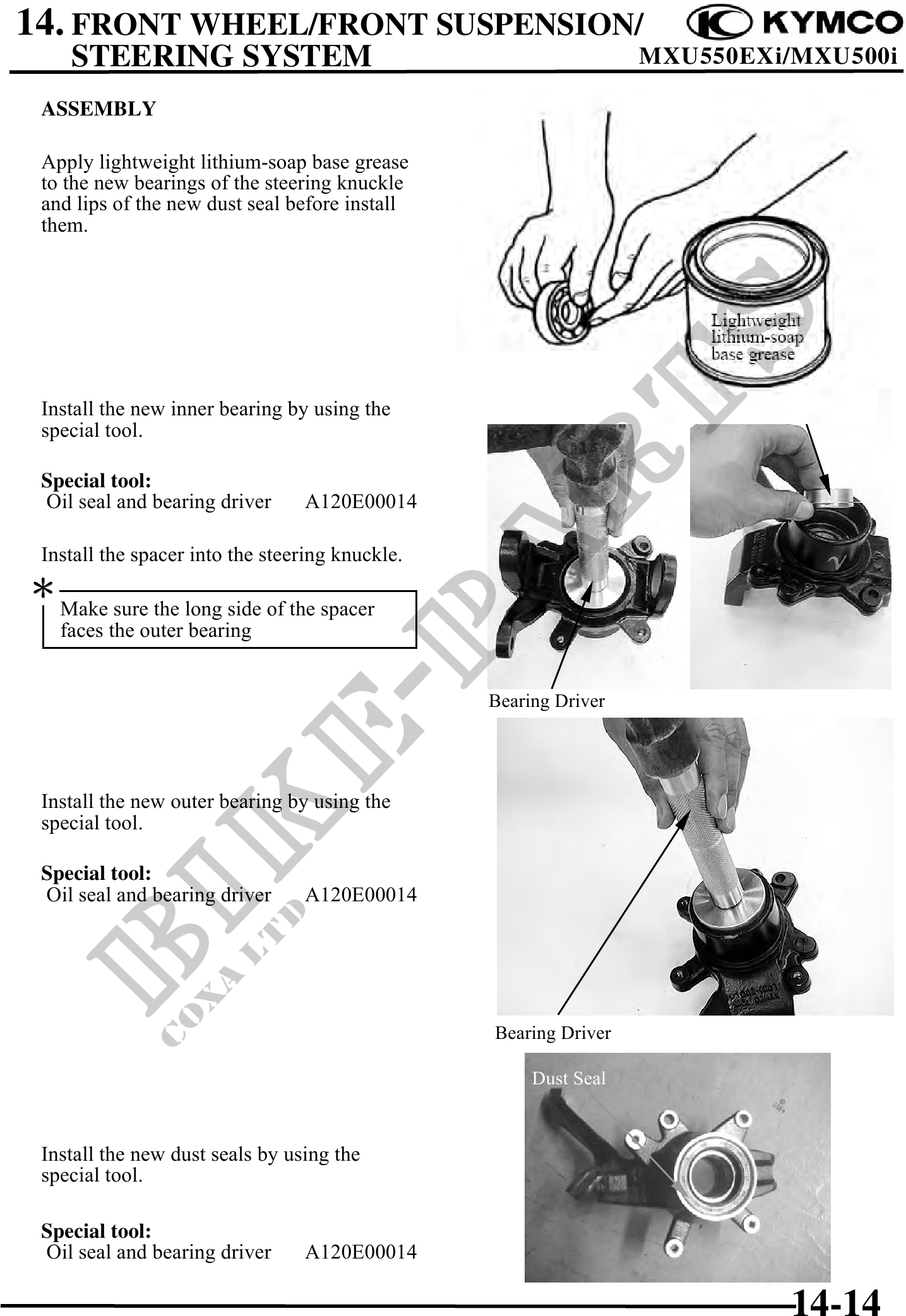

          14. FRONT WHEEL/FRONT SUSPENSION/
    STEERING SYSTEM                                               MXU550EXi/MXU500i

 ASSEMBLY

 Apply lightweight lithium-soap base grease
 to the new bearings of the steering knuckle
 and lips of the new dust seal before install
 them.




                                                                          Spacer
 Install the new inner bearing by using the
 special tool.

 Special tool:
 Oil seal and bearing driver     A120E00014

 Install the spacer into the steering knuckle.

   Make sure the long side of the spacer
   faces the outer bearing


                                                 Bearing Driver




 Install the new outer bearing by using the
 special tool.

 Special tool:
 Oil seal and bearing driver     A120E00014




                                                 Bearing Driver

                                                      Dust Seal


 Install the new dust seals by using the
 special tool.

 Special tool:
 Oil seal and bearing driver     A120E00014

                                                                            14-14
