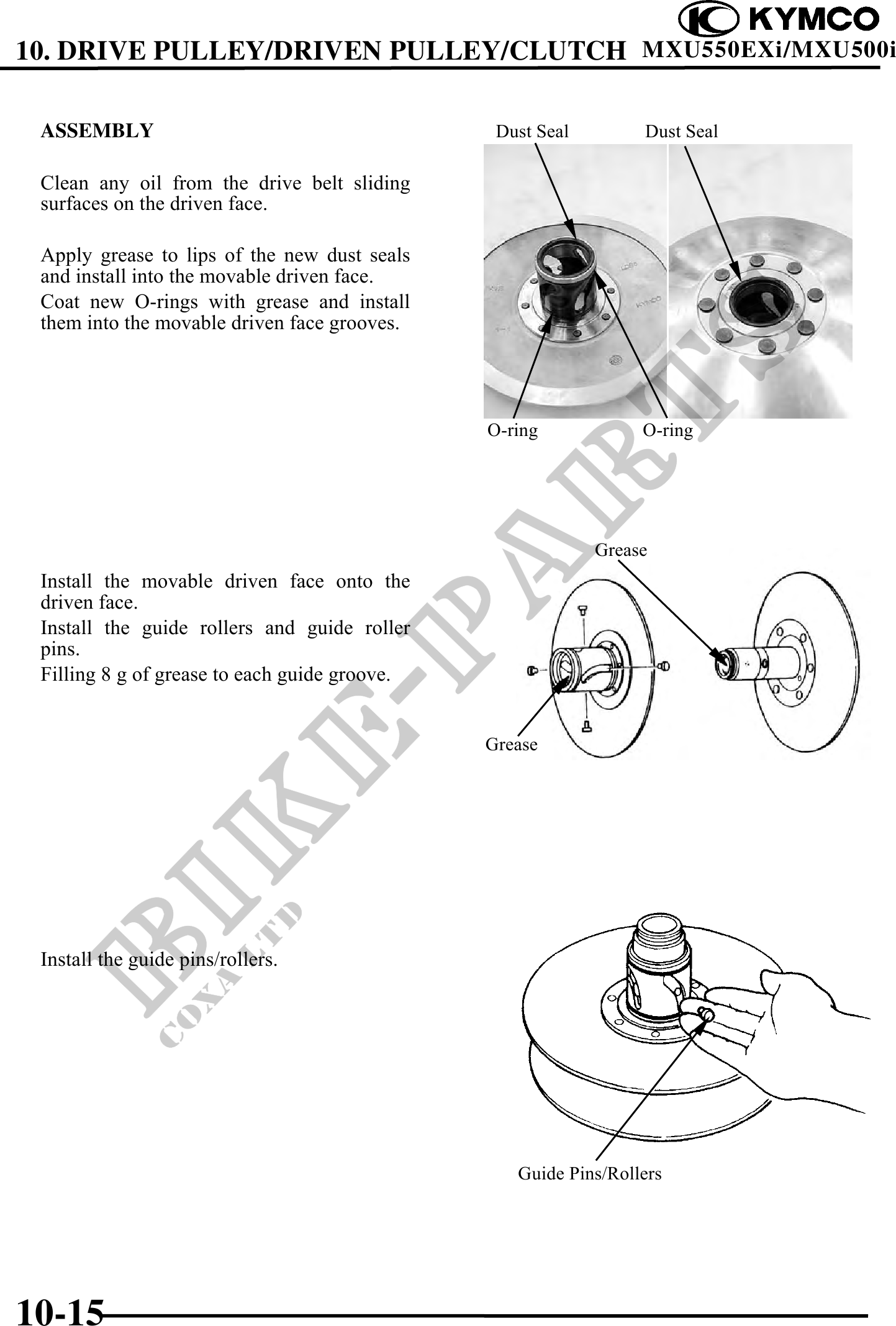

          10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH MXU550EXi/MXU500i

 ASSEMBLY                                       Dust Seal        Dust Seal

 Clean any oil from the drive belt sliding
 surfaces on the driven face.

 Apply grease to lips of the new dust seals
 and install into the movable driven face.
 Coat new O-rings with grease and install
 them into the movable driven face grooves.




                                               O-ring            O-ring




                                                            Grease
 Install the movable driven face onto the
 driven face.
 Install the guide rollers and guide roller
 pins.
 Filling 8 g of grease to each guide groove.


                                               Grease




 Install the guide pins/rollers.




                                                  Guide Pins/Rollers




10-15
