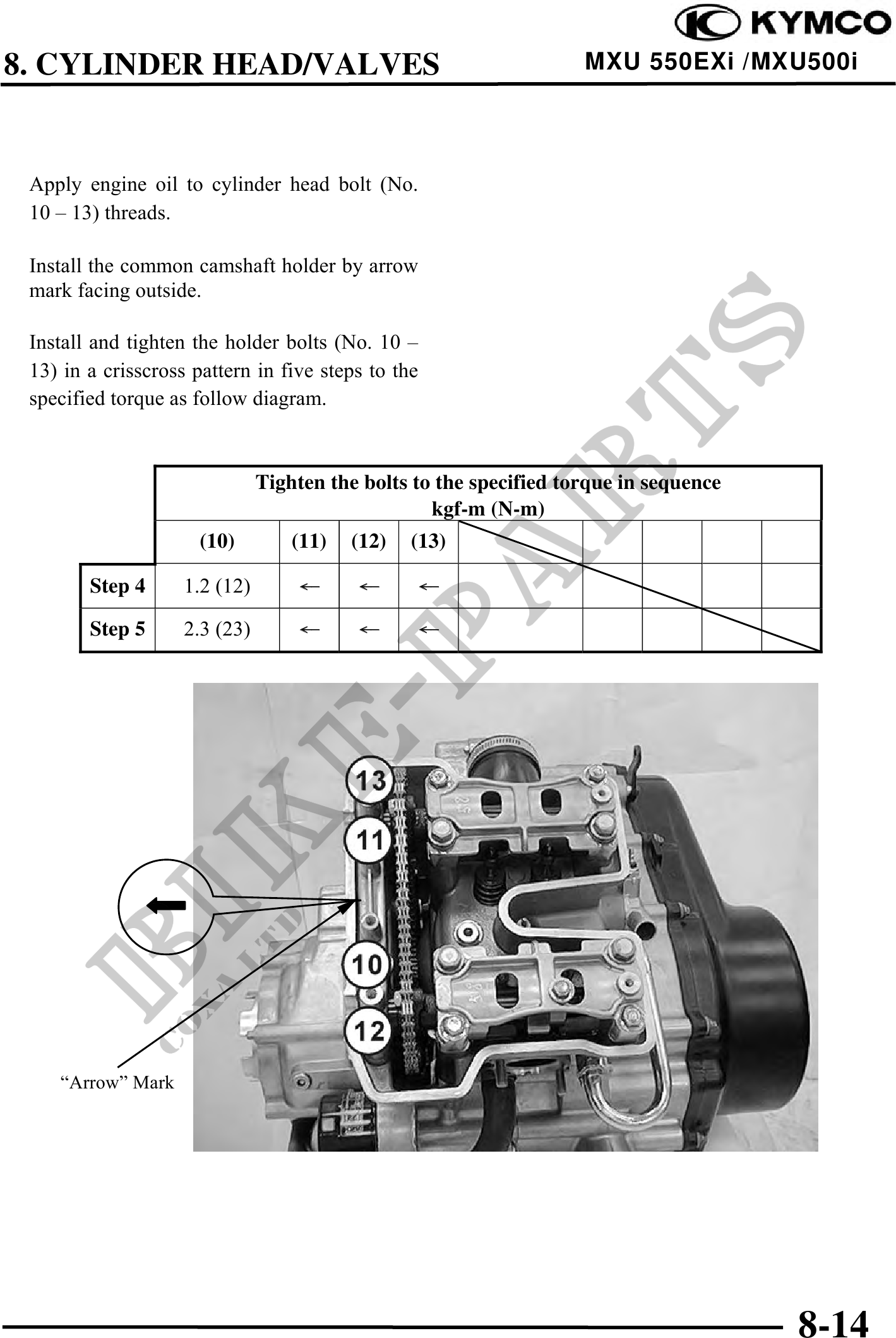

          8. CYLINDER HEAD/VALVES                                             MXU 550EXi /MXU500i



 Apply engine oil to cylinder head bolt (No.
 10 ­ 13) threads.

 Install the common camshaft holder by arrow
 mark facing outside.

 Install and tighten the holder bolts (No. 10 ­
 13) in a crisscross pattern in five steps to the
 specified torque as follow diagram.


                               Tighten the bolts to the specified torque in sequence
                                                   kgf-m (N-m)
                      (10)         (11)   (12)   (13)

        Step 4      1.2 (12)

        Step 5      2.3 (23)




    "Arrow" Mark




                                                                                       8-14
