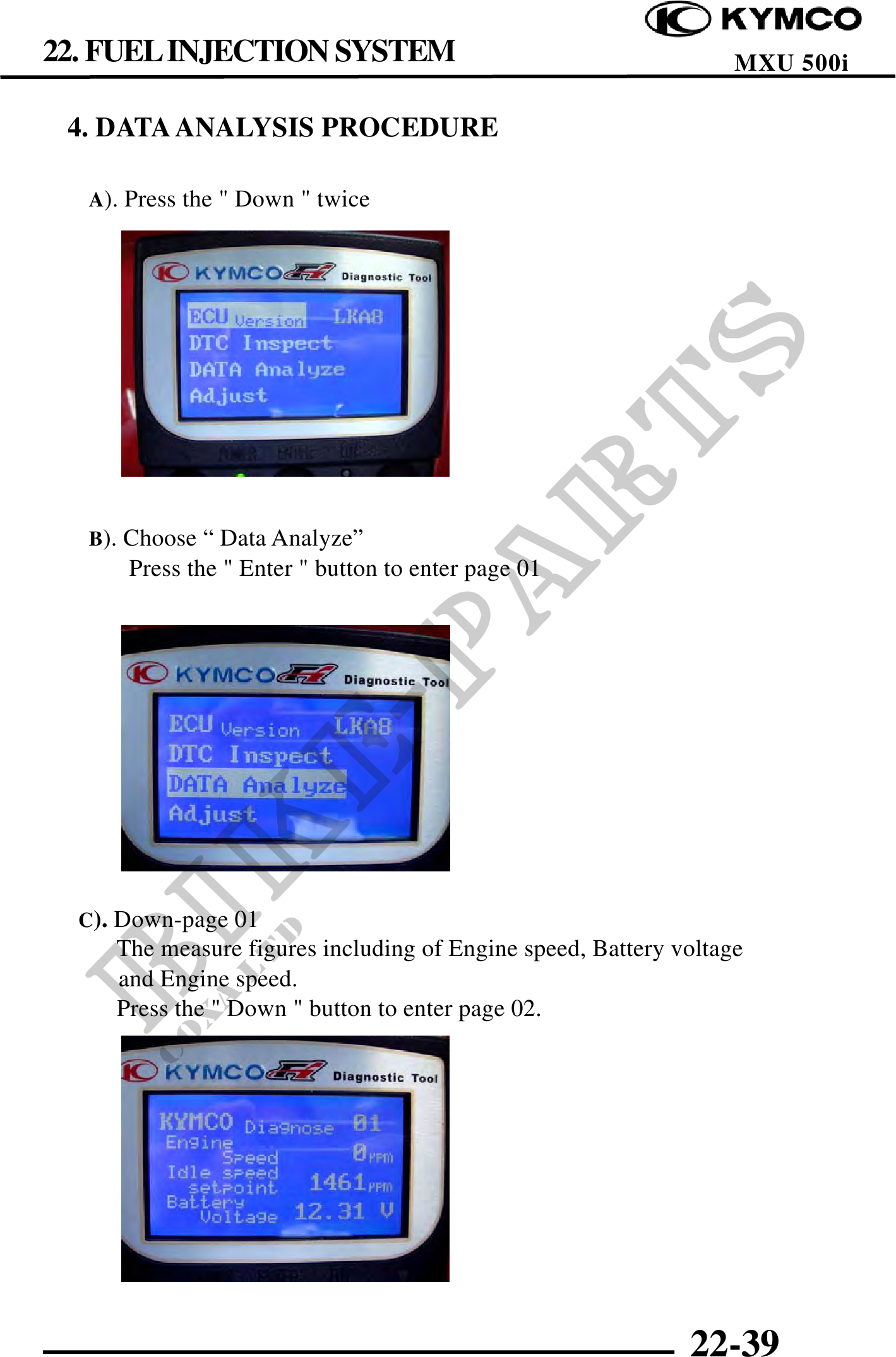

          22. FUEL INJECTION SYSTEM                                         MXU 500i

 4. DATA ANALYSIS PROCEDURE

  A). Press the " Down " twice




  B). Choose " Data Analyze"
      Press the " Enter " button to enter page 01




  C). Down-page 01
     The measure figures including of Engine speed, Battery voltage
     and Engine speed.
     Press the " Down " button to enter page 02.




                                                             22-39
