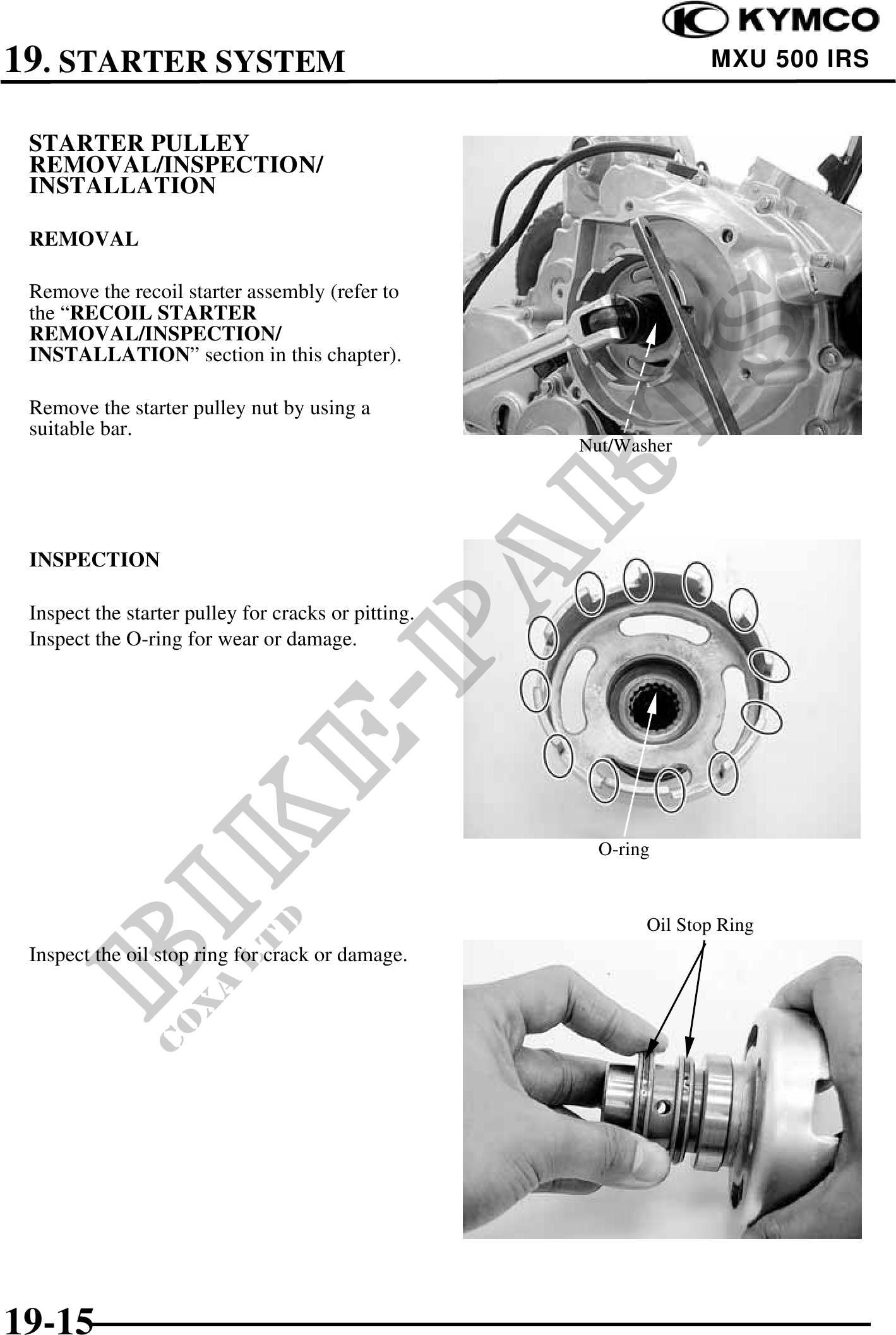

          19. STARTER SYSTEM                                                 MXU 500 IRS


 STARTER PULLEY
 REMOVAL/INSPECTION/
 INSTALLATION

 REMOVAL

 Remove the recoil starter assembly (refer to
 the "RECOIL STARTER
 REMOVAL/INSPECTION/
 INSTALLATION" section in this chapter).

 Remove the starter pulley nut by using a
 suitable bar.
                                                     Nut/Washer




 INSPECTION

 Inspect the starter pulley for cracks or pitting.
 Inspect the O-ring for wear or damage.




                                                       O-ring


                                                            Oil Stop Ring
 Inspect the oil stop ring for crack or damage.




19-15
