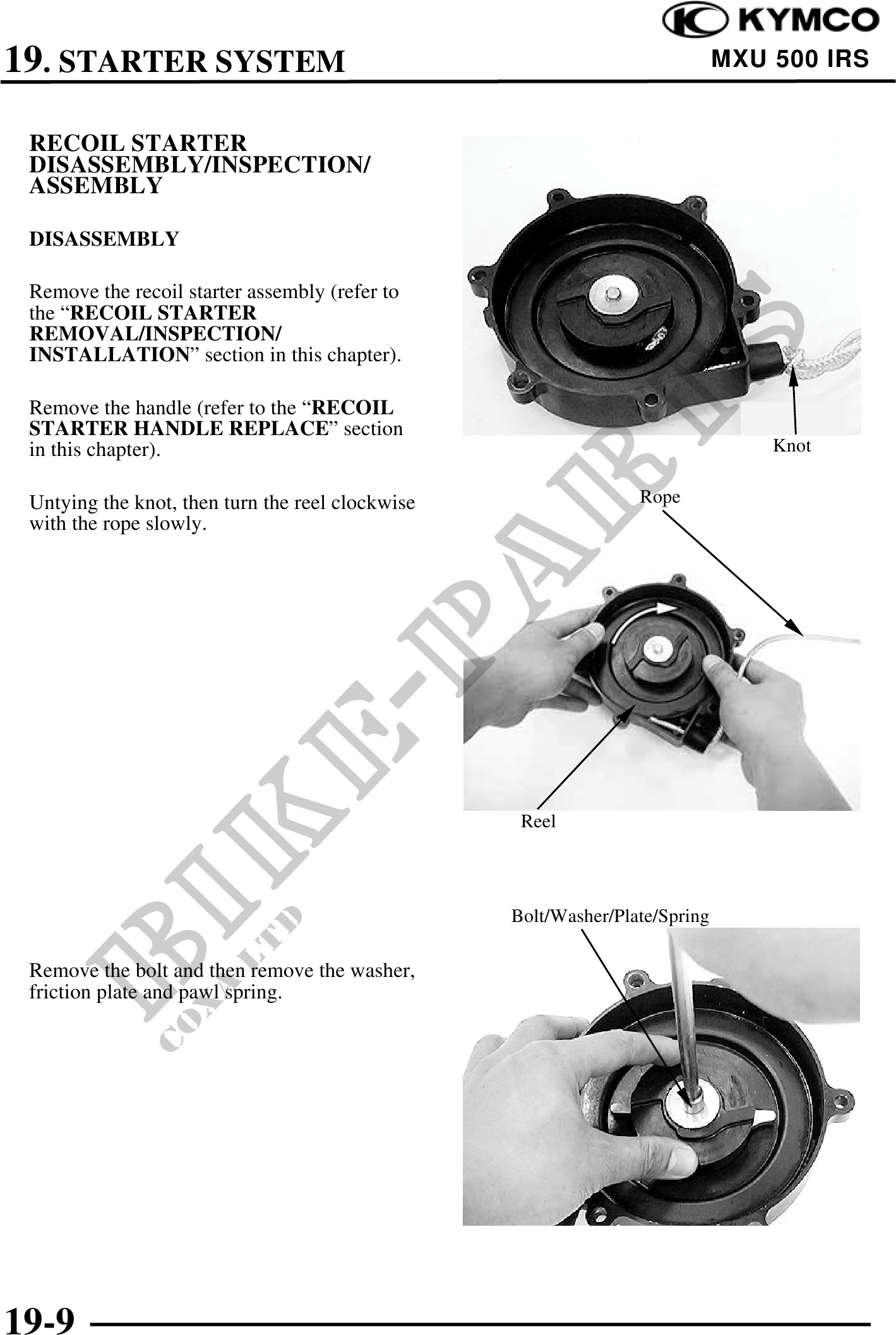

          19. STARTER SYSTEM                                                           MXU 500 IRS


 RECOIL STARTER
 DISASSEMBLY/INSPECTION/
 ASSEMBLY

 DISASSEMBLY

 Remove the recoil starter assembly (refer to
 the "RECOIL STARTER
 REMOVAL/INSPECTION/
 INSTALLATION" section in this chapter).

 Remove the handle (refer to the "RECOIL
 STARTER HANDLE REPLACE" section
 in this chapter).                                                               Knot

 Untying the knot, then turn the reel clockwise                  Rope
 with the rope slowly.




                                                   Reel



                                                  Bolt/Washer/Plate/Spring

 Remove the bolt and then remove the washer,
 friction plate and pawl spring.
