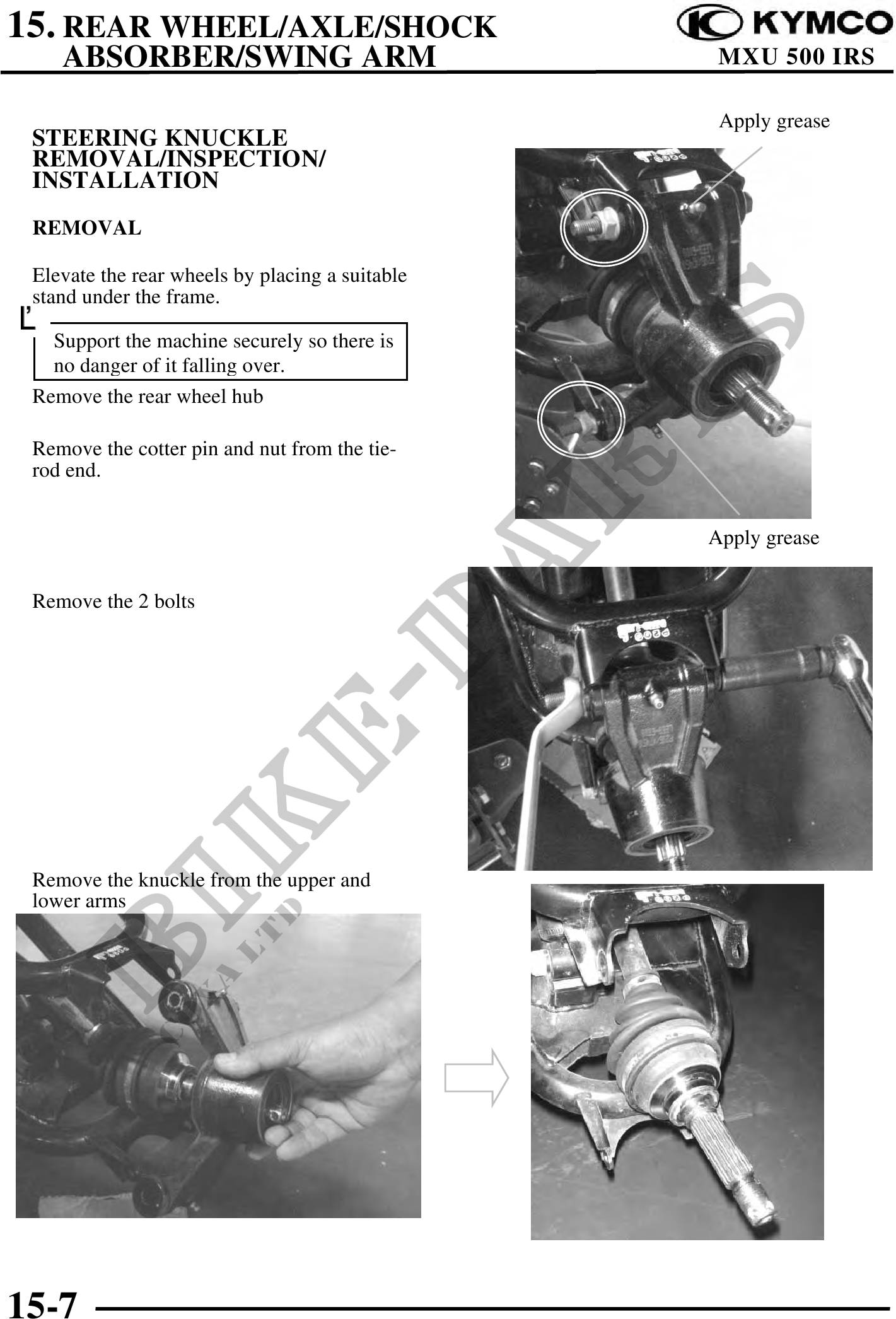

          15. REAR WHEEL/AXLE/SHOCK
    ABSORBER/SWING ARM                            MXU 500 IRS

                                                  Apply grease
 STEERING KNUCKLE
 REMOVAL/INSPECTION/
 INSTALLATION
 REMOVAL

 Elevate the rear wheels by placing a suitable
 stand under the frame.

   Support the machine securely so there is
   no danger of it falling over.
 Remove the rear wheel hub

 Remove the cotter pin and nut from the tie-
 rod end.


                                                 Apply grease


 Remove the 2 bolts




 Remove the knuckle from the upper and
 lower arms




15-7
